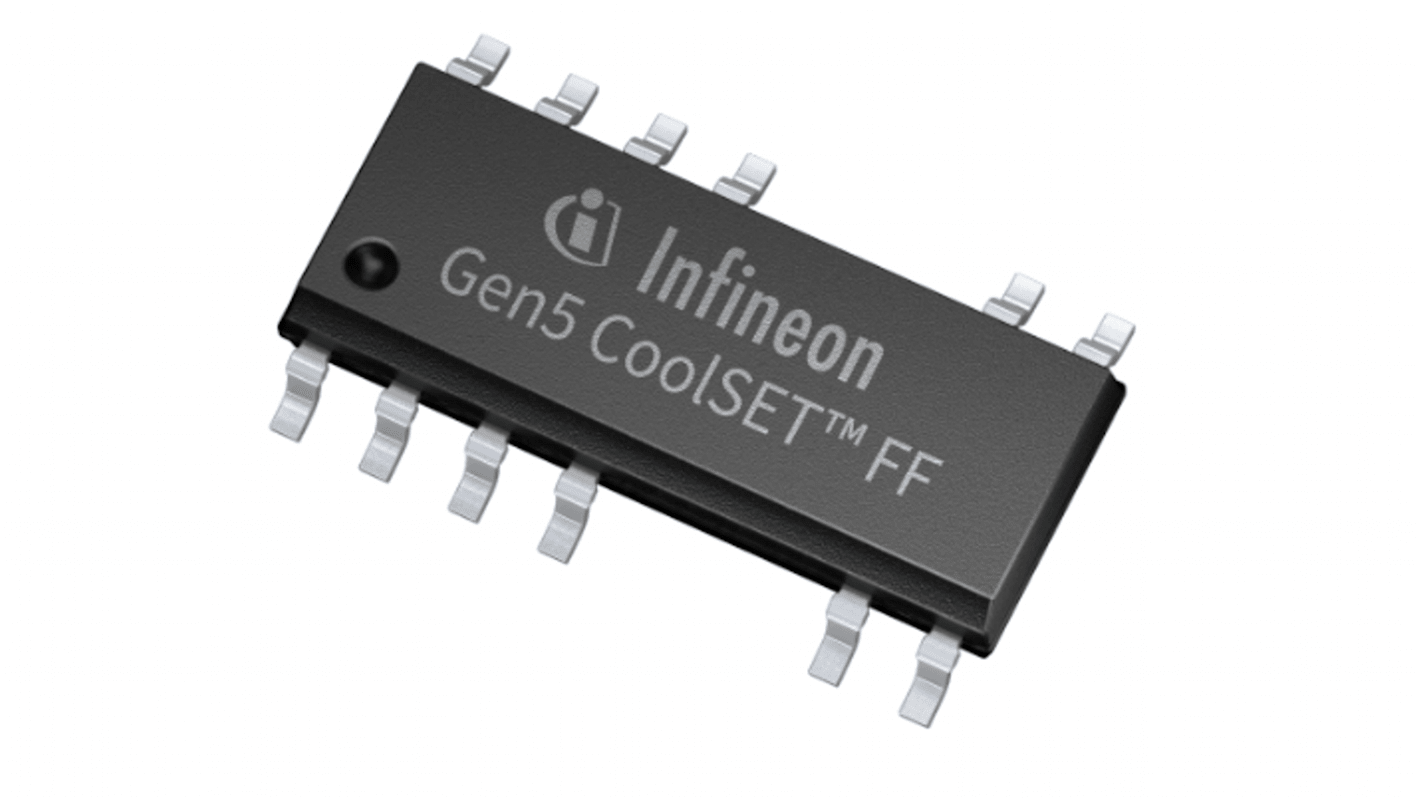

Infineon ICE5AR0680AGXUMA1, 1 Power Switch IC
- RS Stock No.:
- 258-0934
- Mfr. Part No.:
- ICE5AR0680AGXUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.76
(exc. VAT)
£4.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,390 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £1.88 | £3.76 |
20 - 48 | £1.54 | £3.08 |
50 - 98 | £1.45 | £2.90 |
100 - 198 | £1.355 | £2.71 |
200 + | £1.26 | £2.52 |
*price indicative
- RS Stock No.:
- 258-0934
- Mfr. Part No.:
- ICE5AR0680AGXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Number of Channels | 1 | |
Maximum Operating Supply Voltage | 24 V | |
Select all | ||
---|---|---|
Brand Infineon | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 24 V | ||
The Infineon fixed frequency 700 V/800 V CoolSET G is the 5 th generation of fixed frequency integrated power IC optimized for off-line switch mode power supply in cascode configuration. The CoolSET package has 2 separate chips inside
one is controller chip and the other is a 700 V/ 800 V CoolMOS chip. The cascode configuration helps achieve fast start-up. The frequency reduction with soft gate driving and frequency jitter operation offers lower EMI and better efficiency between light load and 50% load. The selectable entry and exit standby power ABM enables flexibility and ultra-low power consumption at standby mode with small and controllable output voltage ripple.
Built-in digital soft-start
Cycle by cycle peak current limitation
Support both DCM and CCM operation with slope compensation
Digital frequency reduction with decreasing load for higher efficiency
Adjustable line input over voltage protection
VCC pin short to ground protection
Increase mid and light load efficiency with digital frequency reduction
High power delivery with slope compensation for CCM operation
Cycle by cycle peak current limitation
Support both DCM and CCM operation with slope compensation
Digital frequency reduction with decreasing load for higher efficiency
Adjustable line input over voltage protection
VCC pin short to ground protection
Increase mid and light load efficiency with digital frequency reduction
High power delivery with slope compensation for CCM operation
