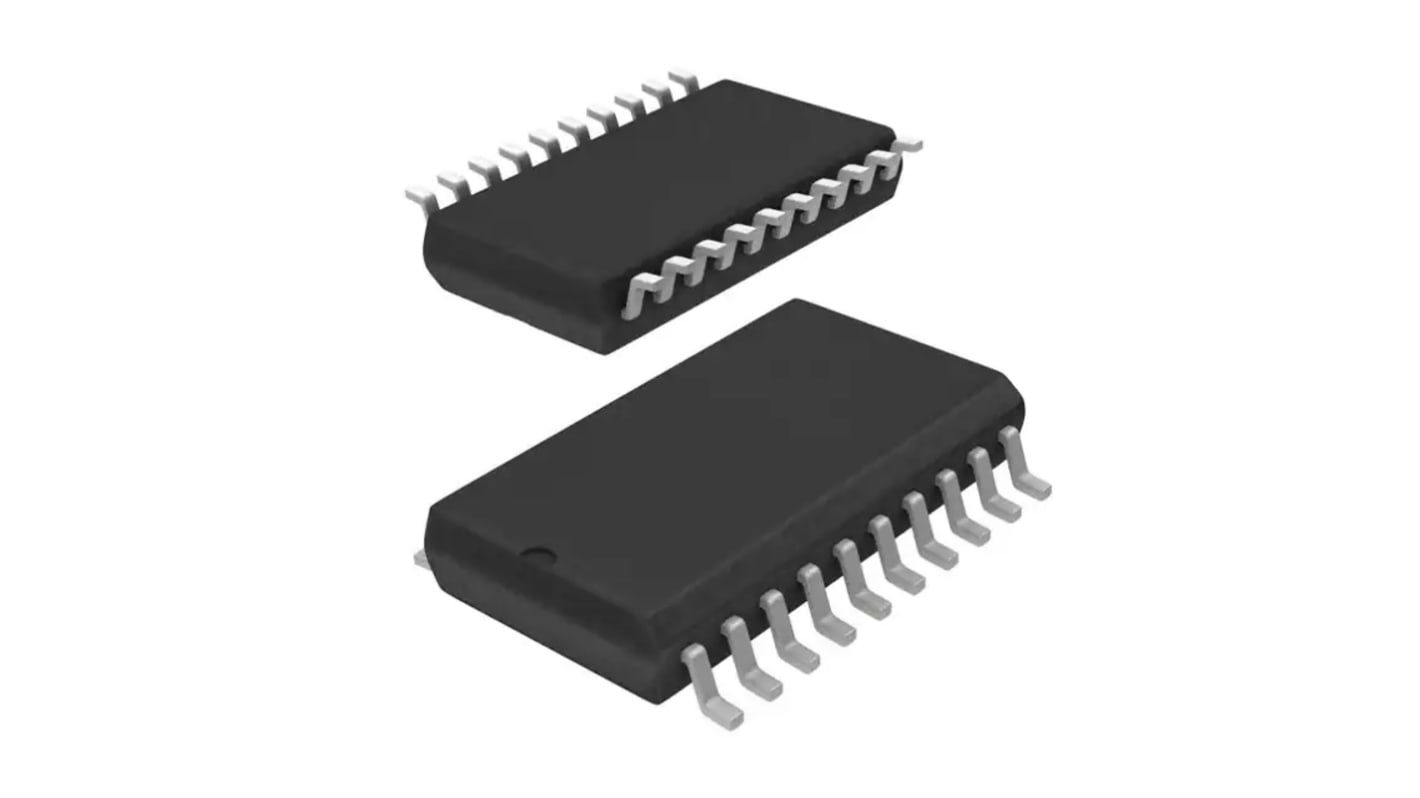

Infineon High Side 4, Power Switch Power Switch IC 20-Pin, PG-DSO-20
- RS Stock No.:
- 250-0590
- Mfr. Part No.:
- BTS716GXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 1000 units)*
£1,950.00
(exc. VAT)
£2,340.00
(inc. VAT)
Add 1000 units to get free delivery
Temporarily out of stock
- Shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.95 | £1,950.00 |
*price indicative
- RS Stock No.:
- 250-0590
- Mfr. Part No.:
- BTS716GXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | Power Switch | |
| Switch On Resistance RdsOn | 35mΩ | |
| Number of Outputs | 4 | |
| Number of Inputs | 4 | |
| Mount Type | Surface | |
| Package Type | PG-DSO-20 | |
| Minimum Supply Voltage | 5.5V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 43V | |
| Operating Current | 5.3A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Width | 7.6 mm | |
| Height | 2.65mm | |
| Length | 12.8mm | |
| Series | BTS716G | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Power Switch Type Power Switch | ||
Switch On Resistance RdsOn 35mΩ | ||
Number of Outputs 4 | ||
Number of Inputs 4 | ||
Mount Type Surface | ||
Package Type PG-DSO-20 | ||
Minimum Supply Voltage 5.5V | ||
Pin Count 20 | ||
Maximum Supply Voltage 43V | ||
Operating Current 5.3A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Width 7.6 mm | ||
Height 2.65mm | ||
Length 12.8mm | ||
Series BTS716G | ||
Automotive Standard AEC | ||
The Infineon high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It has a very low standby current, a CMOS compatible input, improved electromagnetic compatibility (EMC). The device offers fast demagnetization of inductive loads, stable behaviour at under voltage and wide operating voltage range. It has the logic ground independent from load ground.
Overcurrent protection (tripping) with intelligent latch, under voltage shutdown, overvoltage protection with external components
Open Load in ON and OFF state and short circuit to ground and battery
