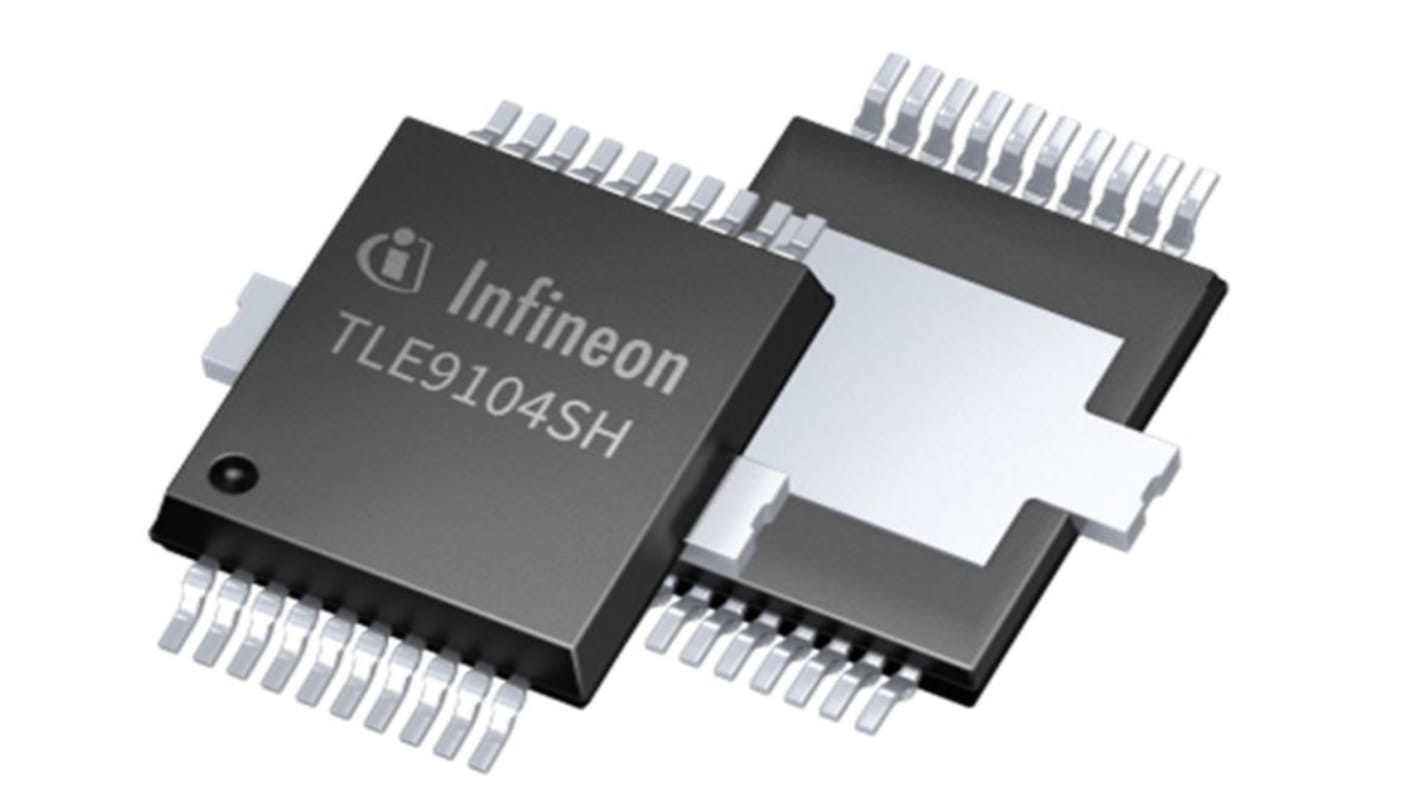

Infineon TLE9104SHXUMA1, QuadLow Side, Powertrain Switch Power Switch IC
- RS Stock No.:
- 242-5832
- Mfr. Part No.:
- TLE9104SHXUMA1
- Brand:
- Infineon
Subtotal (1 unit)*
£2.88
(exc. VAT)
£3.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,575 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2.88 |
*price indicative
- RS Stock No.:
- 242-5832
- Mfr. Part No.:
- TLE9104SHXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Type | Powertrain Switch | |
Power Switch Topology | Low Side | |
Number of Channels | 4 | |
Maximum Operating Supply Voltage | 5 V | |
Maximum Operating Current | 5A | |
Number of Outputs | 4 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Type Powertrain Switch | ||
Power Switch Topology Low Side | ||
Number of Channels 4 | ||
Maximum Operating Supply Voltage 5 V | ||
Maximum Operating Current 5A | ||
Number of Outputs 4 | ||
The Infineon Power switch IC TLE9104SH is designed for Automotive Powertrain applications and it's equipped with a 16-bit Serial Peripheral Interface (SPI) for control and diagnosis. The TLE9104SH comes along with important safety features which makes it a good fit to safety critical Automotive and Industrial applications. The TLE9104SH is particularly suitable for Engine Management, Transmission Control and Battery Management Systems where high-current/high-energy actuators have to be controlled.
16-bit SPI at 8MHz
3 A Nominal Load Current
RDSON 300 mΩ (@ 150˚C)
5 A peak current
VIO pin for 33V and 55V SPI compatibility
3 A Nominal Load Current
RDSON 300 mΩ (@ 150˚C)
5 A peak current
VIO pin for 33V and 55V SPI compatibility
