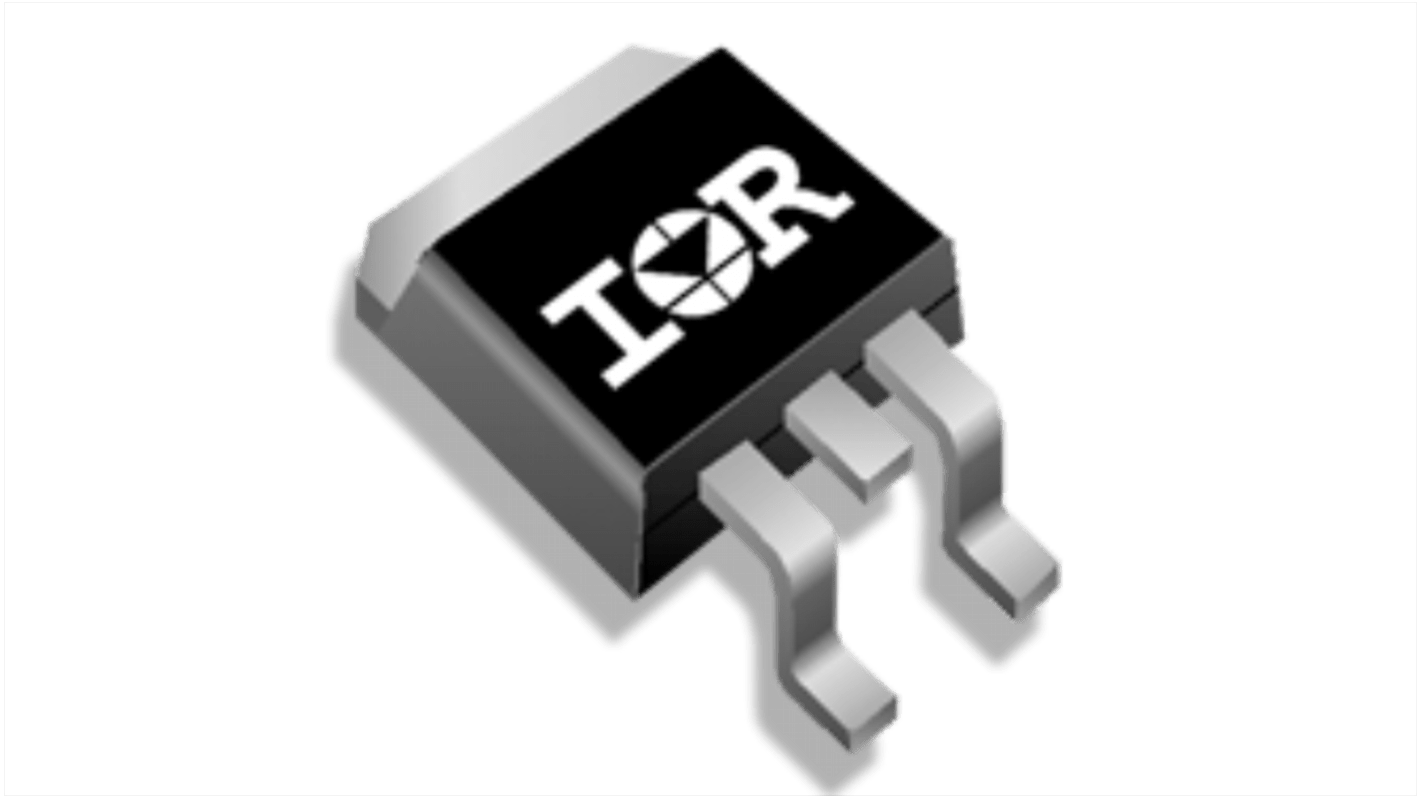

Infineon HEXFET Type N-Channel MOSFET, 64 A, 55 V TO-263 IRFZ48NSTRLPBF
- RS Stock No.:
- 258-3990
- Mfr. Part No.:
- IRFZ48NSTRLPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£2.64
(exc. VAT)
£3.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 568 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.32 | £2.64 |
| 20 - 48 | £1.185 | £2.37 |
| 50 - 98 | £1.11 | £2.22 |
| 100 - 198 | £1.04 | £2.08 |
| 200 + | £0.965 | £1.93 |
*price indicative
- RS Stock No.:
- 258-3990
- Mfr. Part No.:
- IRFZ48NSTRLPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 64A | |
| Maximum Drain Source Voltage Vds | 55V | |
| Series | HEXFET | |
| Package Type | TO-263 | |
| Mount Type | Surface | |
| Maximum Drain Source Resistance Rds | 0.014Ω | |
| Maximum Power Dissipation Pd | 130W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 81nC | |
| Forward Voltage Vf | 1.2V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Distrelec Product Id | 304-40-547 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 64A | ||
Maximum Drain Source Voltage Vds 55V | ||
Series HEXFET | ||
Package Type TO-263 | ||
Mount Type Surface | ||
Maximum Drain Source Resistance Rds 0.014Ω | ||
Maximum Power Dissipation Pd 130W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 81nC | ||
Forward Voltage Vf 1.2V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Distrelec Product Id 304-40-547 | ||
Automotive Standard No | ||
The Infineon HEXFET power MOSFETs from international rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typical surface mount application.
Advanced Process Technology
Surface Mount
Low-profile through-hole
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
