MPN

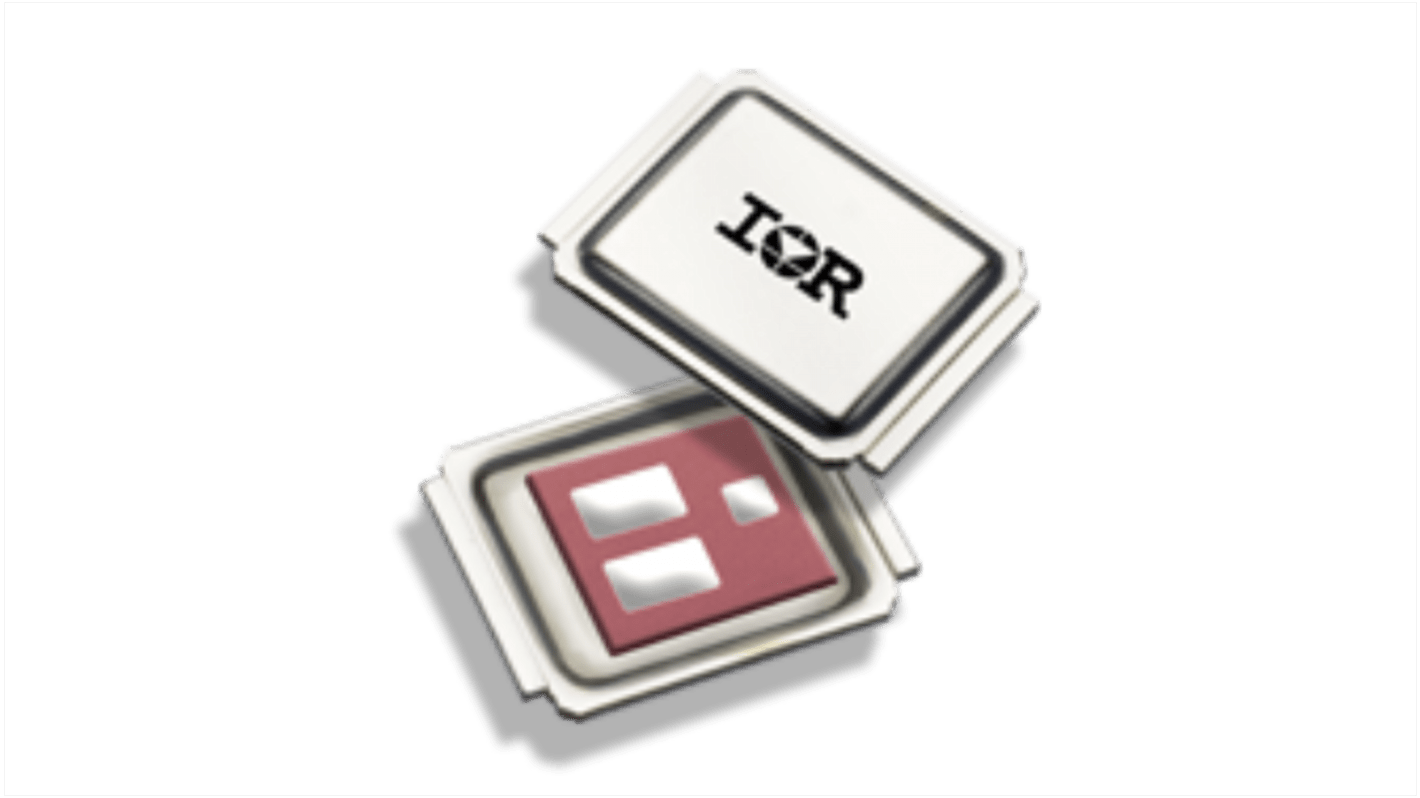

Infineon HEXFET Type N-Channel MOSFET, 180 A, 30 V WDSON

RS Stock No.:: 258-3966
Mfr. Part No.:: IRF6727MTRPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 180 A, 30 V WDSON

Subtotal (1 reel of 4800 units)*

£3,283.20

(exc. VAT)

£3,940.80

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 06 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
4800 +	£0.684	£3,283.20

*price indicative

RS Stock No.:: 258-3966
Mfr. Part No.:: IRF6727MTRPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	180A
	Maximum Drain Source Voltage Vds	30V
	Package Type	WDSON
	Series	HEXFET
	Mount Type	Surface
	Maximum Drain Source Resistance Rds	2.4mΩ
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	89W
	Maximum Gate Source Voltage Vgs	20 V
	Typical Gate Charge Qg @ Vgs	49nC
	Forward Voltage Vf	0.77V
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 180A
	Maximum Drain Source Voltage Vds 30V
	Package Type WDSON
	Series HEXFET
	Mount Type Surface
	Maximum Drain Source Resistance Rds 2.4mΩ
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 89W
	Maximum Gate Source Voltage Vgs 20 V
	Typical Gate Charge Qg @ Vgs 49nC
	Forward Voltage Vf 0.77V
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IRF6727MTRPBF

The Infineon StrongIRFET power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

High-current rating

Dual-side cooling capability

Low package height of 0.7mm

Compact form factor

High efficiency

Environmentally friendly
