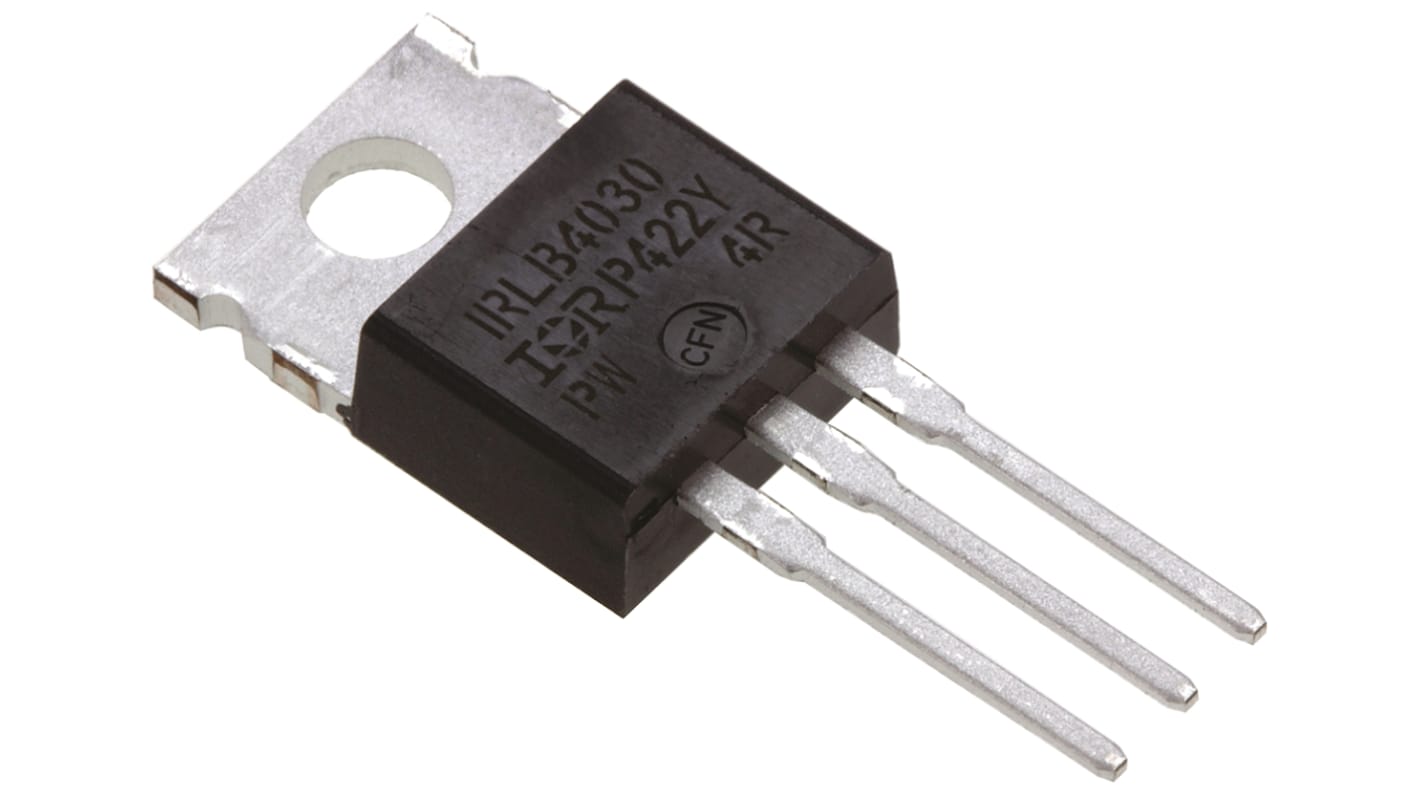

N-Channel MOSFET, 180 A, 100 V, 3-Pin TO-220AB Infineon IRLB4030PBF
- RS Stock No.:
- 688-7216
- Mfr. Part No.:
- IRLB4030PBF
- Brand:
- Infineon
Available to back order for despatch 22/05/2025
Added
Price Each (In a Pack of 2)
£3.30
(exc. VAT)
£3.96
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £3.30 | £6.60 |
| 20 - 48 | £2.805 | £5.61 |
| 50 - 98 | £2.64 | £5.28 |
| 100 - 198 | £2.44 | £4.88 |
| 200 + | £2.275 | £4.55 |
| *price indicative | ||
- RS Stock No.:
- 688-7216
- Mfr. Part No.:
- IRLB4030PBF
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
Motor Control and AC-DC Synchronous Rectifier MOSFET, Infineon
Motor Control MOSFET
Infineon offers a comprehensive portfolio of rugged N-channel and P-channel MOSFET devices for motor control applications.
Synchronous Rectifier MOSFET
A portfolio of synchronous rectification MOSFET devices for AC-DC power supplies supports the customer demands for higher power density, smaller size, more portability and more flexible systems.
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 180 A |
| Maximum Drain Source Voltage | 100 V |
| Series | HEXFET |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 370 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Transistor Material | Si |
| Width | 4.83mm |
| Maximum Operating Temperature | +175 °C |
| Length | 10.67mm |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 87 nC @ 4.5 V |
| Height | 9.02mm |
| Minimum Operating Temperature | -55 °C |
