MPN

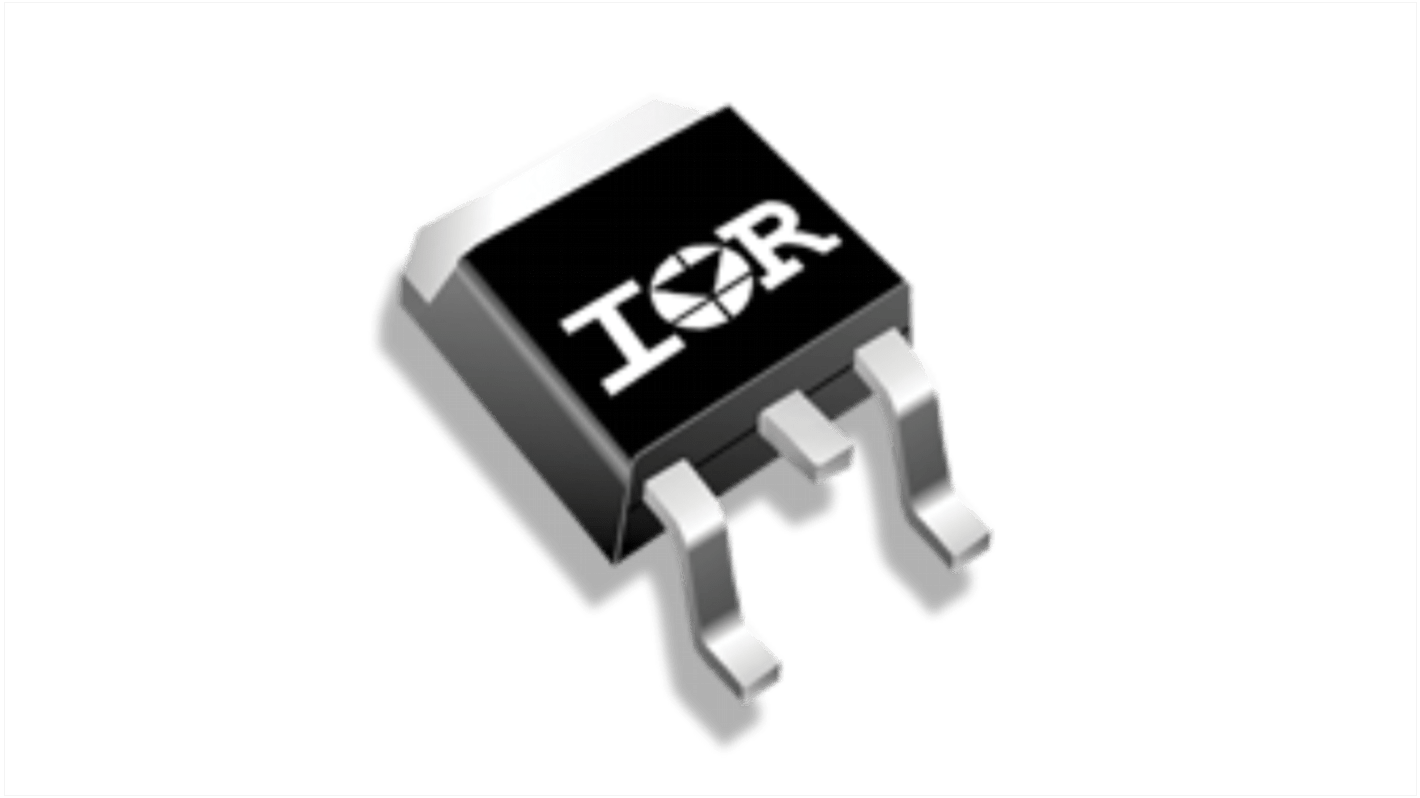

Infineon HEXFET Type N-Channel MOSFET, 99 A, 60 V TO-252

RS Stock No.:: 257-9456
Mfr. Part No.:: IRLR3636TRLPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 99 A, 60 V TO-252

Subtotal (1 reel of 3000 units)*

£1,527.00

(exc. VAT)

£1,833.00

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 27 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.509	£1,527.00

*price indicative

RS Stock No.:: 257-9456
Mfr. Part No.:: IRLR3636TRLPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	99A
	Maximum Drain Source Voltage Vds	60V
	Series	HEXFET
	Package Type	TO-252
	Maximum Drain Source Resistance Rds	8.3mΩ
	Maximum Power Dissipation Pd	143W
	Typical Gate Charge Qg @ Vgs	33nC
	Maximum Gate Source Voltage Vgs	16 V
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	1.3V
	Maximum Operating Temperature	175°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 99A
	Maximum Drain Source Voltage Vds 60V
	Series HEXFET
	Package Type TO-252
	Maximum Drain Source Resistance Rds 8.3mΩ
	Maximum Power Dissipation Pd 143W
	Typical Gate Charge Qg @ Vgs 33nC
	Maximum Gate Source Voltage Vgs 16 V
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 1.3V
	Maximum Operating Temperature 175°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IRLR3636TRLPBF

The Infineon IRLR series is the 60V single n channel power mosfet in a D-Pak package. The strong IRFET power mosfet family is optimized for low RDS (on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including dc motors, battery management systems, inverters, and dc-dc converters.

Optimized for broadest availability from distribution partners

Product qualification according to JEDEC standard

Industry standard surface mount package

Silicon optimized for applications switching below 100 kHz
