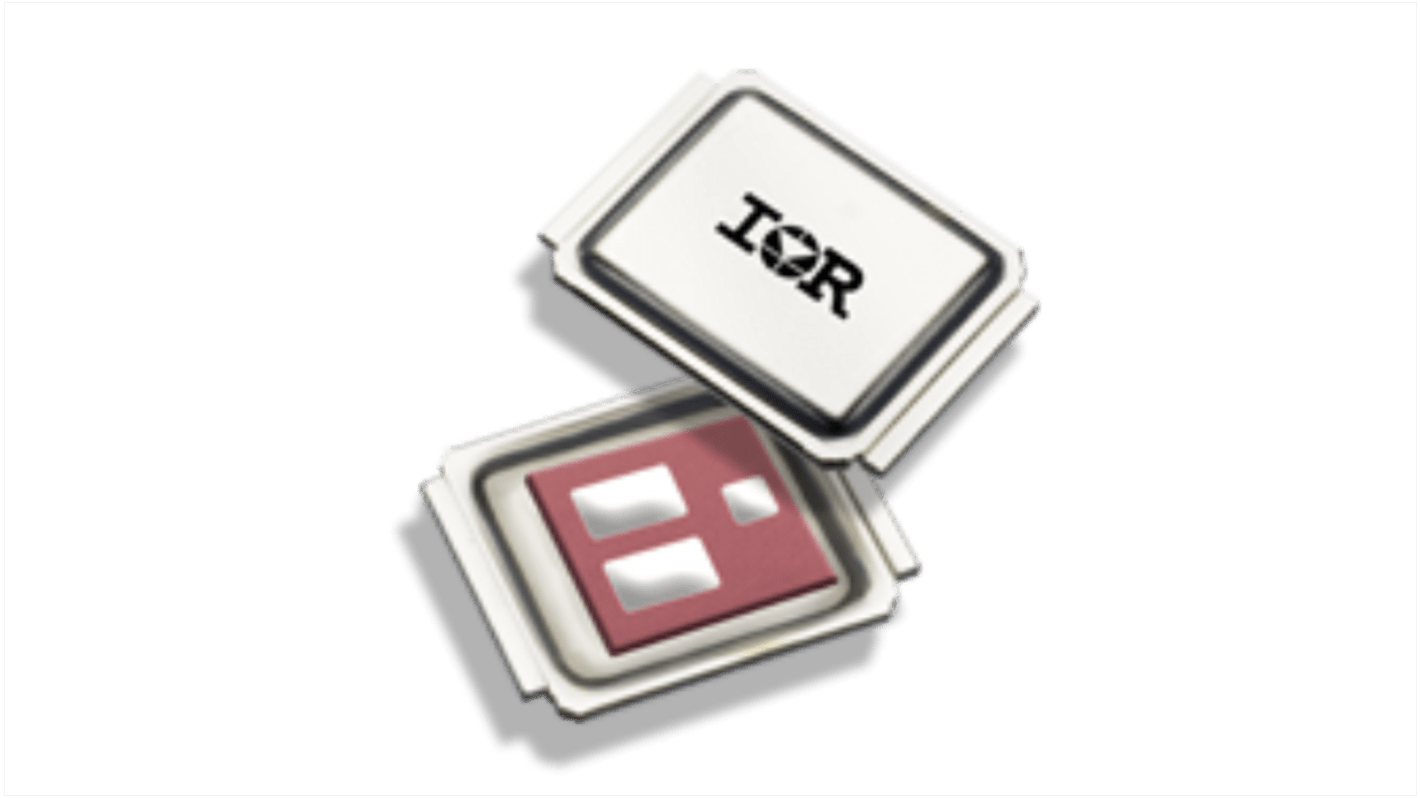

Infineon HEXFET Type N-Channel MOSFET, -160 A, -30 V DirectFET

RS Stock No.:: 257-9332
Mfr. Part No.:: IRF9383MTRPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET, -160 A, -30 V DirectFET

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 257-9332
Mfr. Part No.:: IRF9383MTRPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	-160A
	Maximum Drain Source Voltage Vds	-30V
	Series	HEXFET
	Package Type	DirectFET
	Mount Type	Surface
	Maximum Drain Source Resistance Rds	4.8mΩ
	Minimum Operating Temperature	-40°C
	Maximum Gate Source Voltage Vgs	20 V
	Forward Voltage Vf	-1.2V
	Maximum Power Dissipation Pd	113W
	Typical Gate Charge Qg @ Vgs	67nC
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id -160A
	Maximum Drain Source Voltage Vds -30V
	Series HEXFET
	Package Type DirectFET
	Mount Type Surface
	Maximum Drain Source Resistance Rds 4.8mΩ
	Minimum Operating Temperature -40°C
	Maximum Gate Source Voltage Vgs 20 V
	Forward Voltage Vf -1.2V
	Maximum Power Dissipation Pd 113W
	Typical Gate Charge Qg @ Vgs 67nC
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IRF9383MTRPBF

The Infineon IRF series is the -30V single p channel strong IRFET power mosfet in a direct FET mx package. The strong IRFET power mosfet family is optimized for low RDS (on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including dc motors, battery management systems, inverters, and dc-dc converters.

Optimized for broadest availability from distribution partners

Product qualification according to JEDEC standard

High current rating

Dual side cooling capability

Low package height of 0.7mm

Low parasitic (1 to 2 nH) inductance package

100 percent lead free (No RoHS exemption)
