MPN

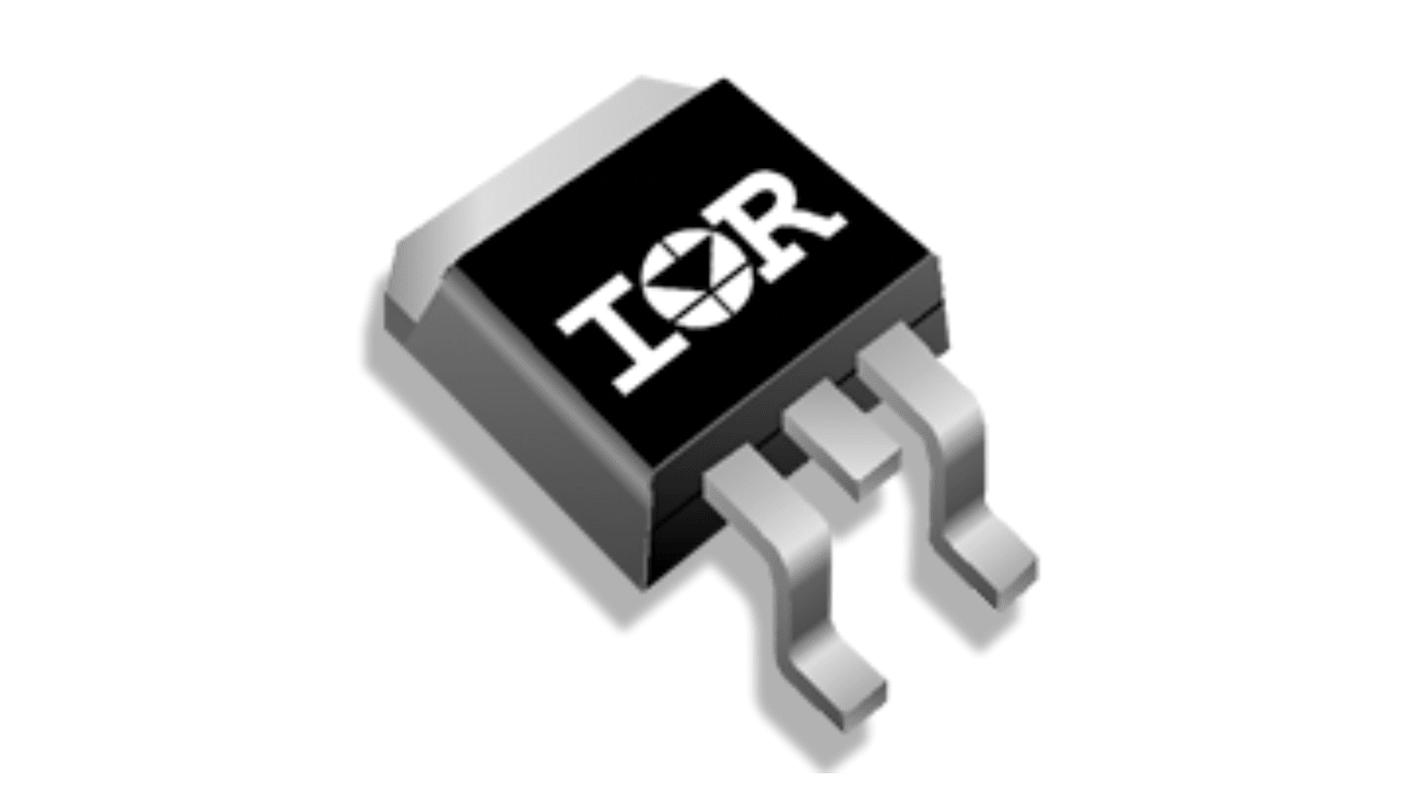

Infineon HEXFET Type N-Channel MOSFET, 180 A, 100 V TO-263

RS Stock No.:: 257-5574
Mfr. Part No.:: IRLS4030TRLPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 180 A, 100 V TO-263

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 257-5574
Mfr. Part No.:: IRLS4030TRLPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	180A
	Maximum Drain Source Voltage Vds	100V
	Series	HEXFET
	Package Type	TO-263
	Mount Type	PCB
	Maximum Drain Source Resistance Rds	4.3mΩ
	Forward Voltage Vf	1.3V
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 180A
	Maximum Drain Source Voltage Vds 100V
	Series HEXFET
	Package Type TO-263
	Mount Type PCB
	Maximum Drain Source Resistance Rds 4.3mΩ
	Forward Voltage Vf 1.3V
	Standards/Approvals No
	Automotive Standard No

Datasheet - IRLS4030TRLPBF

The Infineon HEXFET power MOSFET is optimized for logic level drive, very low RDS at 4.5V VGS, its used DC motor drive, high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, hard switched and high frequency circuits.

Superior R*Q at 45V VGS

Improved gate, avalanche and dynamic dV/dt ruggedness

Fully characterized capacitance and avalanche SOA

Enhanced body diode dV/dt and dI/dt capability

Lead-free
