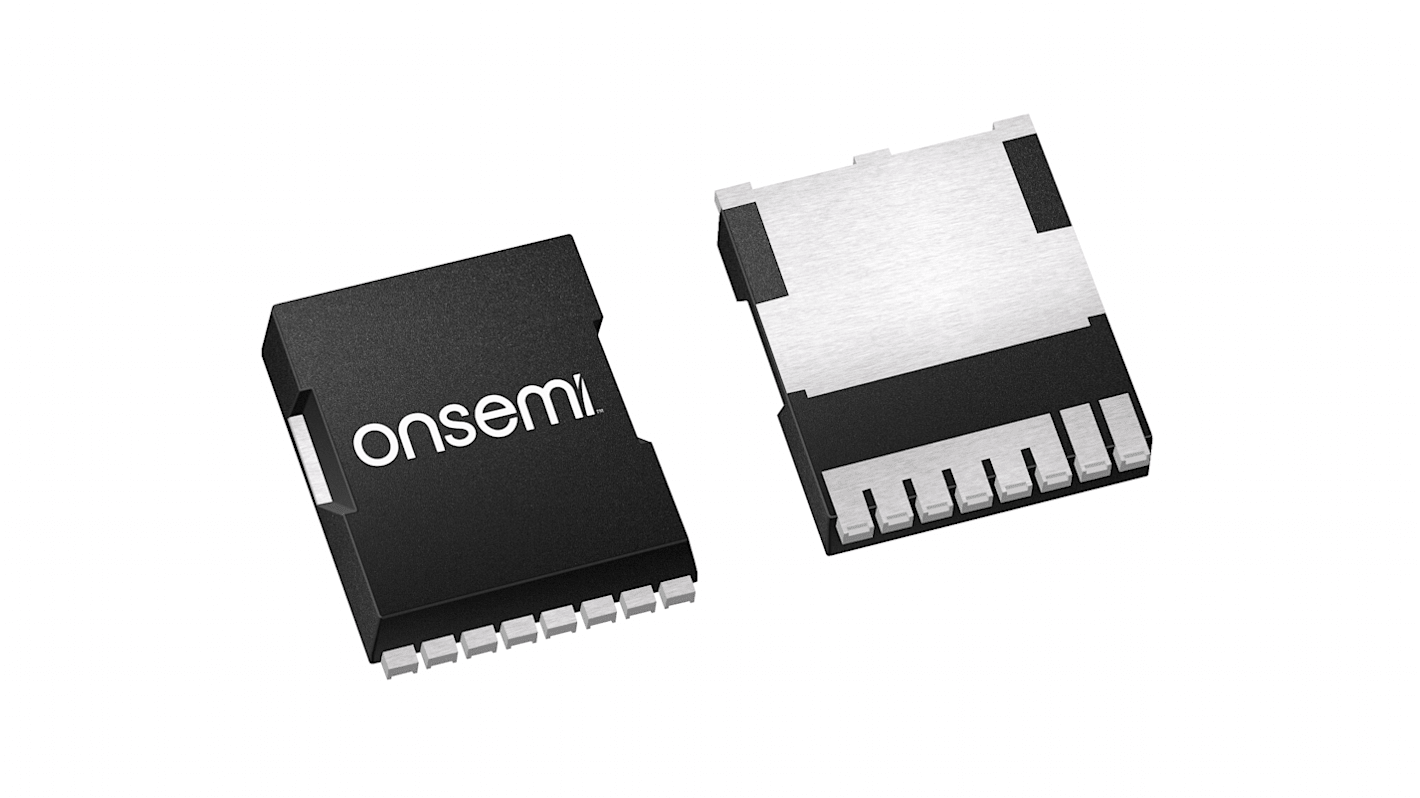

onsemi NTB Type N-Channel MOSFET, 58 A, 1200 V Enhancement, 7-Pin HPSOF-8L
- RS Stock No.:
- 254-7666
- Mfr. Part No.:
- NTBL045N065SC1
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 2000 units)*
£10,534.00
(exc. VAT)
£12,640.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £5.267 | £10,534.00 |
| 4000 - 4000 | £5.132 | £10,264.00 |
| 6000 + | £5.003 | £10,006.00 |
*price indicative
- RS Stock No.:
- 254-7666
- Mfr. Part No.:
- NTBL045N065SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 58A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | NTB | |
| Package Type | HPSOF-8L | |
| Mount Type | Through Hole | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 22mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 117W | |
| Typical Gate Charge Qg @ Vgs | 105nC | |
| Forward Voltage Vf | 4.5V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 58A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series NTB | ||
Package Type HPSOF-8L | ||
Mount Type Through Hole | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 22mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 117W | ||
Typical Gate Charge Qg @ Vgs 105nC | ||
Forward Voltage Vf 4.5V | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
Silicon Carbide (SiC) MOSFET - EliteSiC, 33 mohm, 650 V, M2, TOLL Silicon Carbide (SiC) MOSFET - 33 mohm, 650 V, M2, TOLL
The ON Semiconductor NTB series of a silicon carbide mosfet uses a completely new technology that provide superior switching performance and higher reliability compared to silicon. In addition with the low on resistance and compact chip size. It ensures a low capacitance and gate charge. Consequently, system benefits include highest efficiency, faster operation frequency, increased power density, reduced EMI, and reduced system size.
Zero reverse recovery current of body diode
Ultra low gate charge
High speed switching and low capacitance
