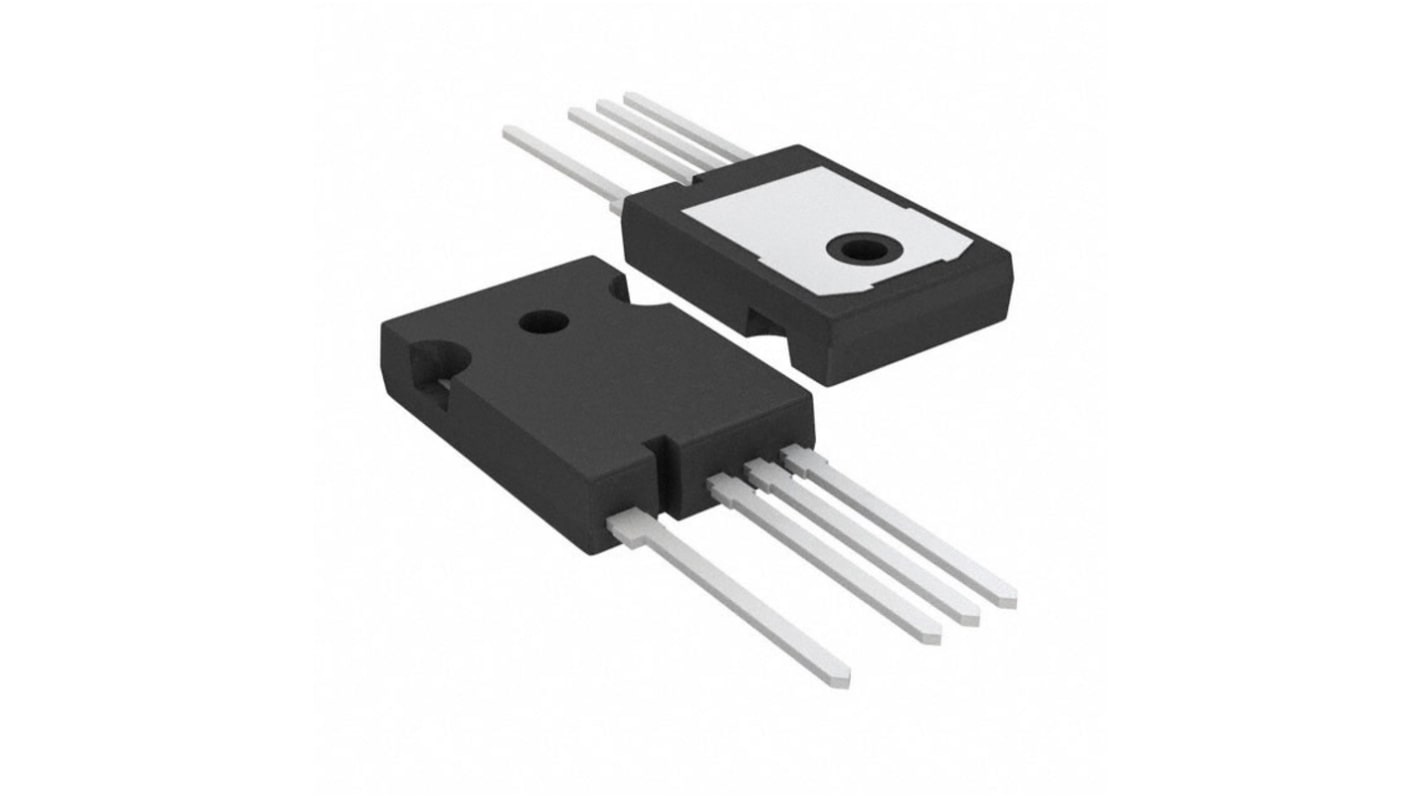

onsemi SiC Power Type N-Channel MOSFET, 142 A, 650 V N, 4-Pin TO-247
- RS Stock No.:
- 229-6457
- Mfr. Part No.:
- NTH4L015N065SC1
- Brand:
- onsemi
Subtotal (1 tube of 450 units)*
£6,817.95
(exc. VAT)
£8,181.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 450 + | £15.151 | £6,817.95 |
*price indicative
- RS Stock No.:
- 229-6457
- Mfr. Part No.:
- NTH4L015N065SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 142A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | TO-247 | |
| Series | SiC Power | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 12mΩ | |
| Channel Mode | N | |
| Typical Gate Charge Qg @ Vgs | 283nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Maximum Power Dissipation Pd | 500W | |
| Forward Voltage Vf | 4.8V | |
| Maximum Operating Temperature | 175°C | |
| Width | 5.2 mm | |
| Length | 15.8mm | |
| Height | 22.74mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 142A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type TO-247 | ||
Series SiC Power | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 12mΩ | ||
Channel Mode N | ||
Typical Gate Charge Qg @ Vgs 283nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Maximum Power Dissipation Pd 500W | ||
Forward Voltage Vf 4.8V | ||
Maximum Operating Temperature 175°C | ||
Width 5.2 mm | ||
Length 15.8mm | ||
Height 22.74mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ON Semiconductor SiC Power series MOSFET uses a completely new technology that provide superior switching performance and higher reliability compared to silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge.
Highest efficiency
Faster operation frequency
Increased power density
Reduced EMI
Reduced system size
