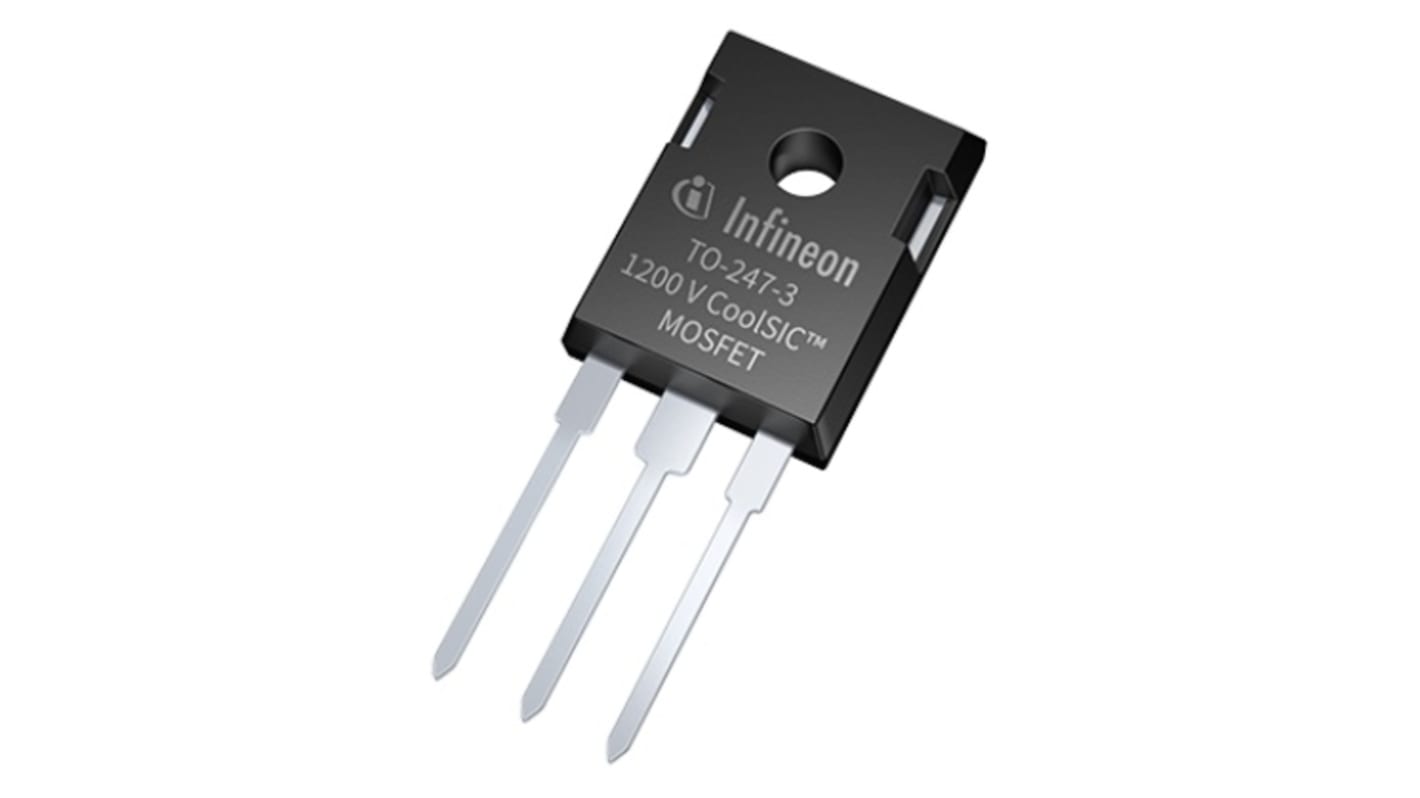

Infineon IMW1 N-Channel MOSFET, 13 A, 1200 V, 3-Pin TO-247 IMW120R220M1HXKSA1

Bulk discount available

Subtotal (1 tube of 30 units)*

£75.72

(exc. VAT)

£90.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 780 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£2.524£75.72
60 - 120£2.398£71.94
150 +£2.297£68.91

*price indicative

RS Stock No.:
222-4857
Mfr. Part No.:
IMW120R220M1HXKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Channel Type

N

Maximum Continuous Drain Current

13 A

Maximum Drain Source Voltage

1200 V

Package Type

TO-247

Series

IMW1

Mounting Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance

220 mOhm

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

4.5V

Transistor Material

Si

Number of Elements per Chip

1

The Infineon CoolSiC™ 1200 V, 220 mΩ SiC MOSFET in TO247-3 package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability. In comparison to traditional silicon (Si) based switches like IGBTs and MOSFETs, the SiC MOSFET offers a series of advantages. These include, the lowest gate charge and device capacitance levels seen in 1200 V switches, no reverse recovery losses of the internal commutation proof body diode, temperature independent low switching losses, and threshold-free on-state characteristic.

Best in class switching and conduction losses
Benchmark high threshold voltage, Vth > 4 V
0V turn-off gate voltage for easy and simple gate drive
Wide gate-source voltage range
Robust and low loss body diode rated for hard commutation
Temperature independent turn-off switching losses
