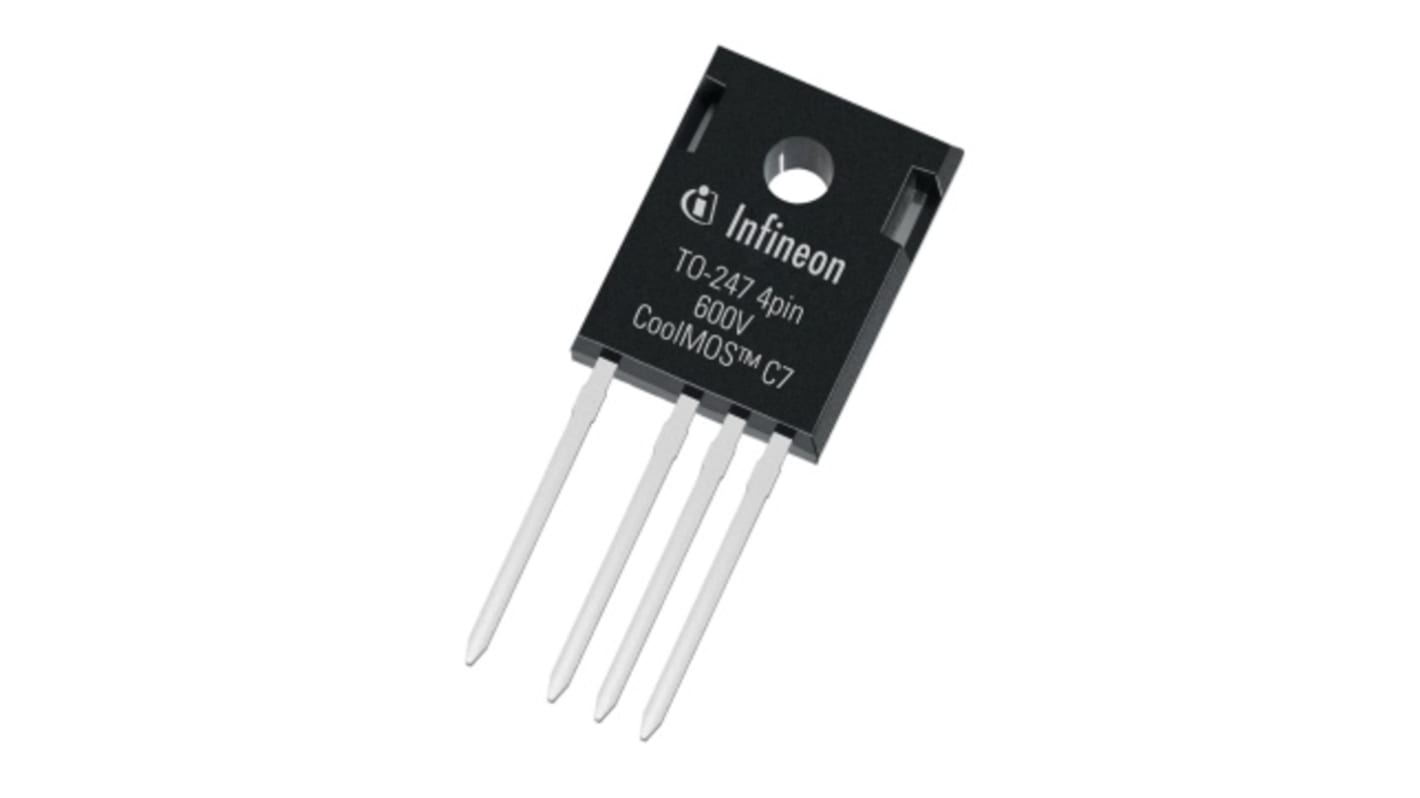

Infineon CoolMOS Type N-Channel MOSFET, 109 A, 600 V Enhancement, 4-Pin TO-247 IPZ60R017C7XKSA1
- RS Stock No.:
- 222-4727
- Mfr. Part No.:
- IPZ60R017C7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£13.51
(exc. VAT)
£16.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 109 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £13.51 |
| 2 - 4 | £12.83 |
| 5 - 9 | £12.29 |
| 10 - 24 | £11.75 |
| 25 + | £10.94 |
*price indicative
- RS Stock No.:
- 222-4727
- Mfr. Part No.:
- IPZ60R017C7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 109A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-247 | |
| Series | CoolMOS | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 17mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.9V | |
| Typical Gate Charge Qg @ Vgs | 240nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 446W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 21.1mm | |
| Width | 5.21 mm | |
| Length | 16.13mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 109A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-247 | ||
Series CoolMOS | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 17mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.9V | ||
Typical Gate Charge Qg @ Vgs 240nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 446W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 21.1mm | ||
Width 5.21 mm | ||
Length 16.13mm | ||
Automotive Standard No | ||
The Infineon design of Cool MOS™ C7 is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction (SJ) principle and pioneered by Infineon Technologies. 600V Cool MOS™ C7 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The 600V C7 is the first technology ever with RDS(on)*A below 1Ohm*mm.
Pb-free lead plating; RoHS compliant
Superior thermal resistance 100% avalanche tested
Halogen-free according to IEC61249-2-23
