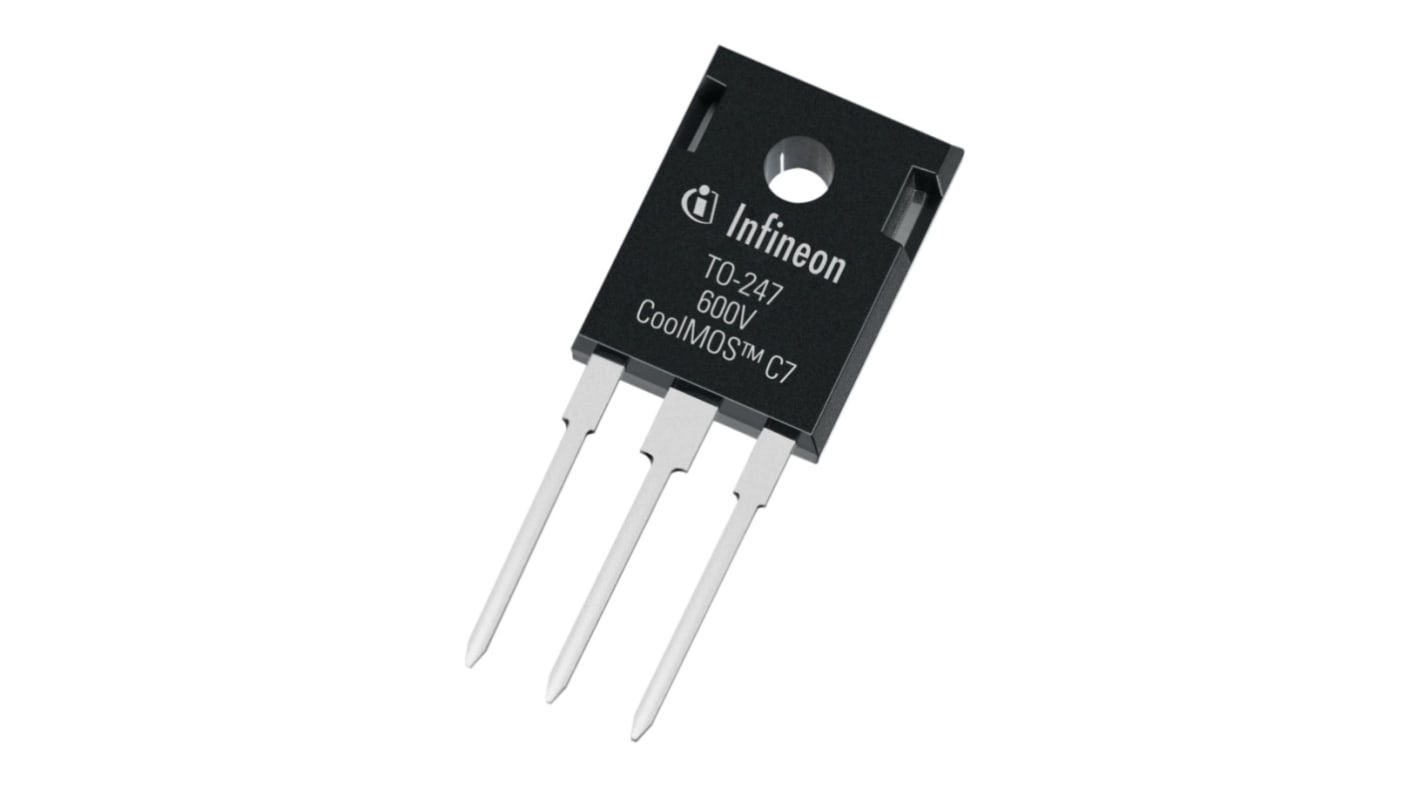

Infineon 600V CoolMOS C7 Type N-Channel MOSFET, 109 A, 600 V, 3-Pin TO-247
- RS Stock No.:
- 218-3083
- Mfr. Part No.:
- IPW60R017C7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 30 units)*
£420.39
(exc. VAT)
£504.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 30 | £14.013 | £420.39 |
| 60 + | £13.313 | £399.39 |
*price indicative
- RS Stock No.:
- 218-3083
- Mfr. Part No.:
- IPW60R017C7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 109A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | 600V CoolMOS C7 | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 17mΩ | |
| Forward Voltage Vf | 0.9V | |
| Maximum Power Dissipation Pd | 446W | |
| Typical Gate Charge Qg @ Vgs | 240nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Height | 21.1mm | |
| Width | 5.21 mm | |
| Length | 16.13mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 109A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series 600V CoolMOS C7 | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 17mΩ | ||
Forward Voltage Vf 0.9V | ||
Maximum Power Dissipation Pd 446W | ||
Typical Gate Charge Qg @ Vgs 240nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Operating Temperature 150°C | ||
Height 21.1mm | ||
Width 5.21 mm | ||
Length 16.13mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon 600V CoolMOS™ series N-channel power MOSFET. The CoolMOS™ C7 is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies.
Suitable for hard and soft switching (PFC and high performance LLC)
Increased MOSFET dv/dt ruggedness to 120V/ns
Increased switching frequency
