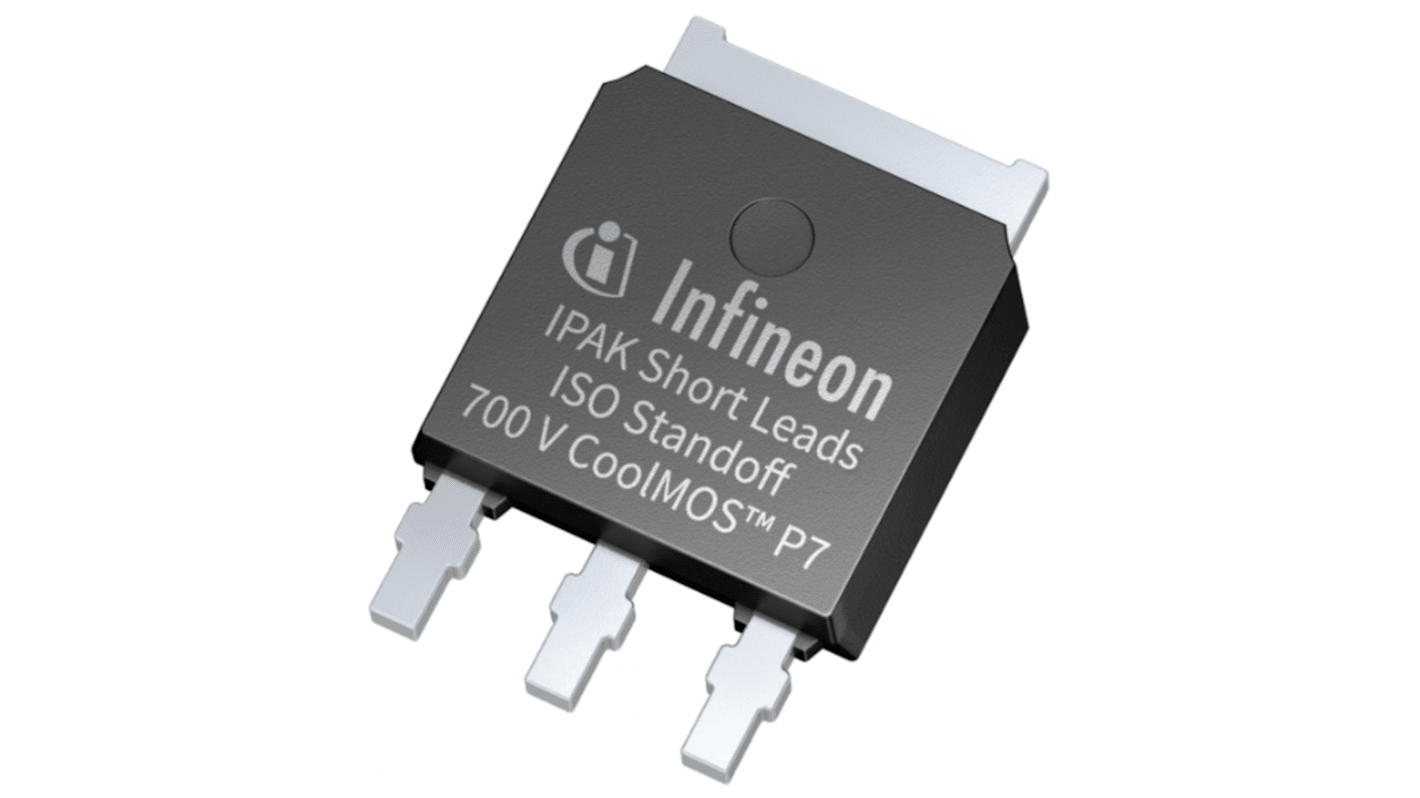

Infineon CoolMOS™ Silicon N-Channel MOSFET, 10 A, 700 V, 3-Pin IPAK IPSA70R450P7SAKMA1
- RS Stock No.:
- 222-4711
- Mfr. Part No.:
- IPSA70R450P7SAKMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 15 units)*
£7.245
(exc. VAT)
£8.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,395 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 135 | £0.483 | £7.25 |
| 150 - 360 | £0.459 | £6.89 |
| 375 - 735 | £0.449 | £6.74 |
| 750 - 1485 | £0.421 | £6.32 |
| 1500 + | £0.391 | £5.87 |
*price indicative
- RS Stock No.:
- 222-4711
- Mfr. Part No.:
- IPSA70R450P7SAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 10 A | |
| Maximum Drain Source Voltage | 700 V | |
| Package Type | IPAK (TO-251) | |
| Series | CoolMOS™ | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.45 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Transistor Material | Silicon | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 10 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type IPAK (TO-251) | ||
Series CoolMOS™ | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.45 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Transistor Material Silicon | ||
Number of Elements per Chip 1 | ||
The Infineon design of Cool MOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction (SJ) principle and pioneered by Infineon Technologies. The latest Cool MOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc.
Product validation acc. JEDEC Standard
Low switching losses (Eoss)
Integrated ESD protection diode
Excellent thermal behaviour
Low switching losses (Eoss)
Integrated ESD protection diode
Excellent thermal behaviour
