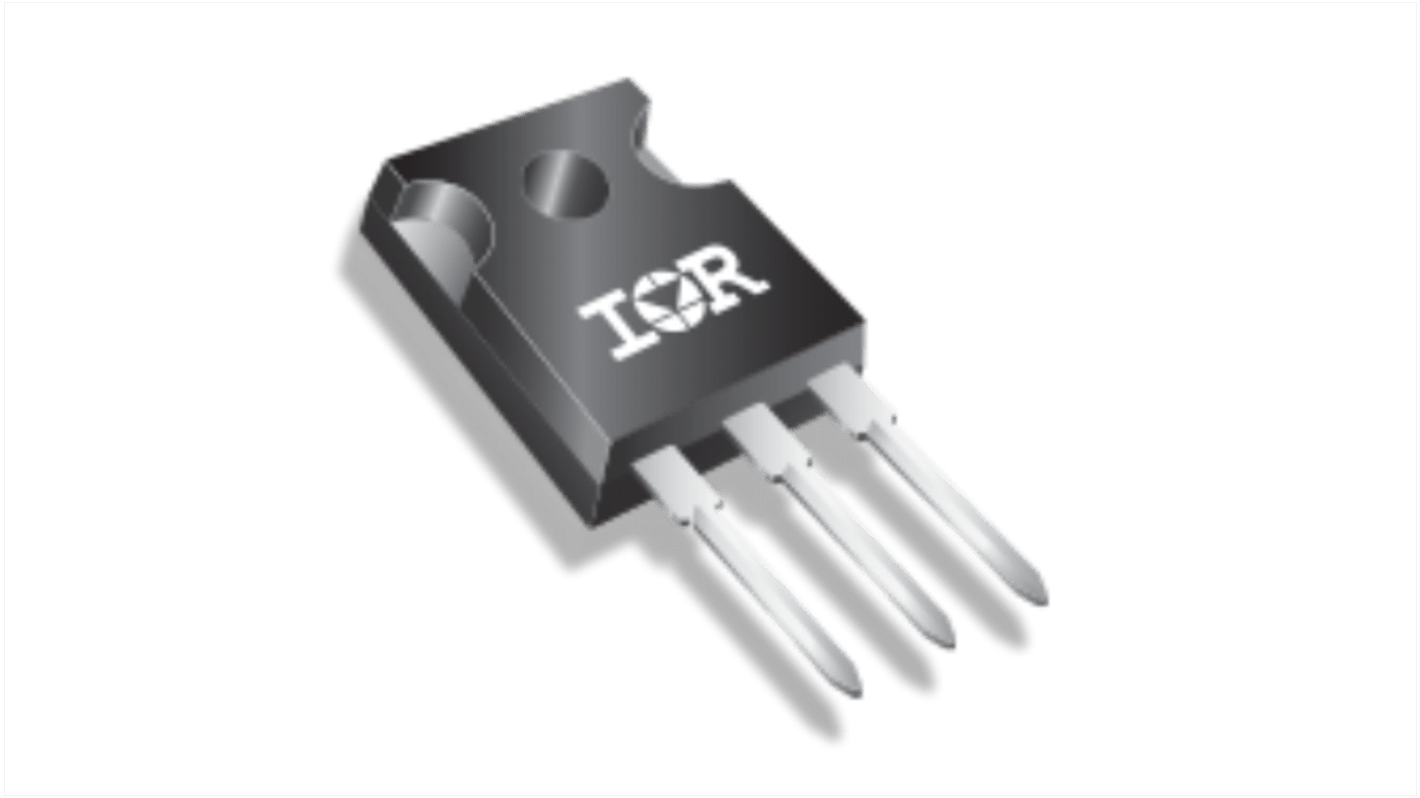

Infineon HEXFET Type N-Channel MOSFET, 171 A, 150 V Enhancement, 3-Pin TO-247
- RS Stock No.:
- 222-4611
- Mfr. Part No.:
- AUIRFP4568
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 25 units)*
£175.95
(exc. VAT)
£211.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,075 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | £7.038 | £175.95 |
| 50 - 100 | £6.686 | £167.15 |
| 125 + | £6.404 | £160.10 |
*price indicative
- RS Stock No.:
- 222-4611
- Mfr. Part No.:
- AUIRFP4568
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 171A | |
| Maximum Drain Source Voltage Vds | 150V | |
| Series | HEXFET | |
| Package Type | TO-247 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 5.9mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Typical Gate Charge Qg @ Vgs | 151nC | |
| Forward Voltage Vf | 1.3V | |
| Maximum Power Dissipation Pd | 517W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 20.7 mm | |
| Length | 15.87mm | |
| Height | 5.31mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 171A | ||
Maximum Drain Source Voltage Vds 150V | ||
Series HEXFET | ||
Package Type TO-247 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 5.9mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Typical Gate Charge Qg @ Vgs 151nC | ||
Forward Voltage Vf 1.3V | ||
Maximum Power Dissipation Pd 517W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 20.7 mm | ||
Length 15.87mm | ||
Height 5.31mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon design of HEXFET® Power MOSFETs utilizes the latest processing techniques to achieve low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in Automotive and a wide variety of other applications.
Advanced Planar Technology
Dual N Channel MOSFET Low On-Resistance
Logic Level Gate Drive
