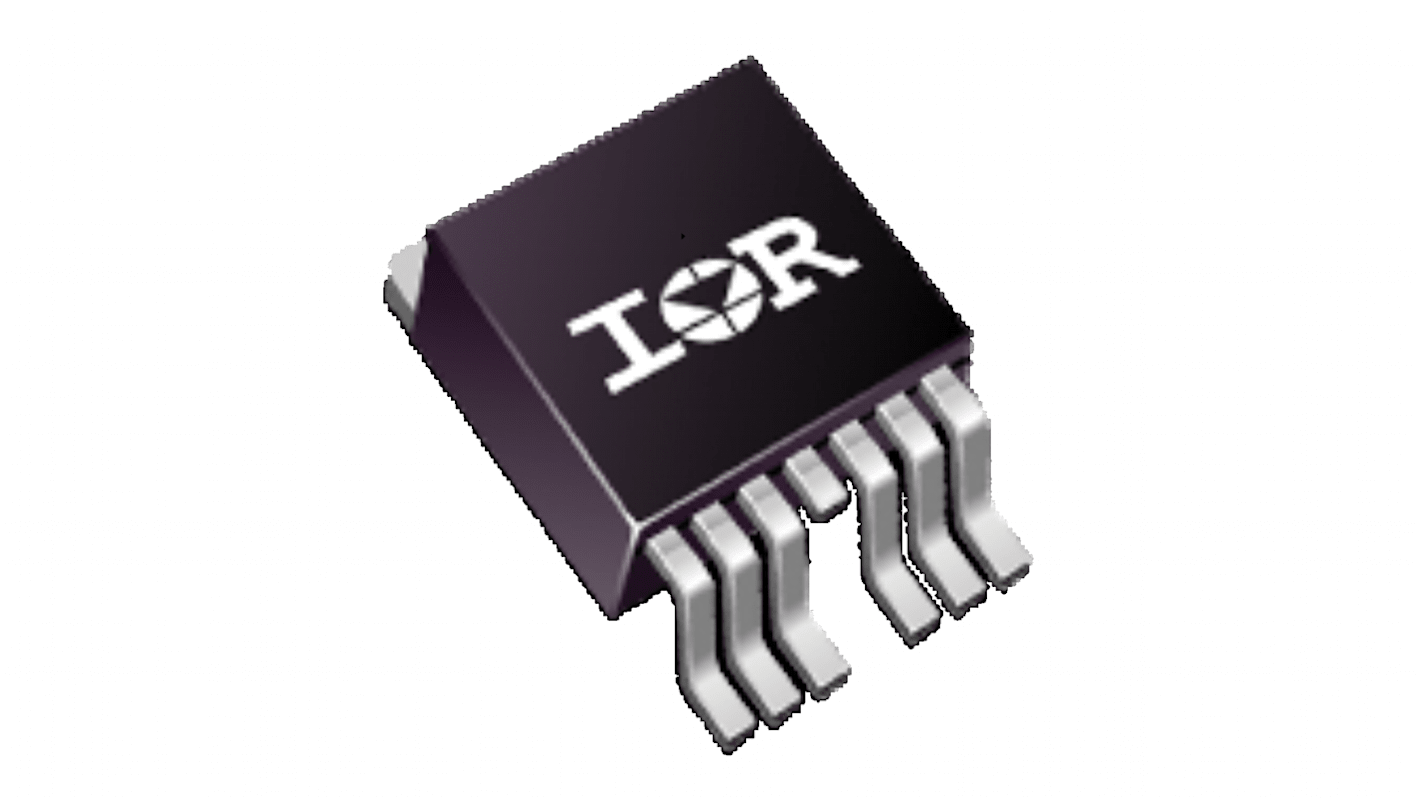

Infineon HEXFET Silicon N-Channel MOSFET, 320 A, 40 V, 7-Pin D2PAK-7 AUIRF2804STRL7P
- RS Stock No.:
- 222-4605
- Mfr. Part No.:
- AUIRF2804STRL7P
- Brand:
- Infineon
Subtotal (1 reel of 800 units)*
£1,171.20
(exc. VAT)
£1,405.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 800 unit(s) ready to ship
- Plus 999,998,400 unit(s) shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | £1.464 | £1,171.20 |
*price indicative
- RS Stock No.:
- 222-4605
- Mfr. Part No.:
- AUIRF2804STRL7P
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 320 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | D2PAK-7 | |
| Series | HEXFET | |
| Mounting Type | Surface Mount | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance | 0.0016 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 4V | |
| Transistor Material | Silicon | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 320 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type D2PAK-7 | ||
Series HEXFET | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Maximum Drain Source Resistance 0.0016 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4V | ||
Transistor Material Silicon | ||
Number of Elements per Chip 1 | ||
The Infineon power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Advanced process technology
Ultra-low on-resistance Fast switching
Lead-Free, RoHS Compliant
Ultra-low on-resistance Fast switching
Lead-Free, RoHS Compliant
