Infineon C7 GOLD Type N-Channel MOSFET & Diode, 83 A, 650 V Enhancement, 10-Pin HDSOP

RS Stock No.:: 220-7417
Mfr. Part No.:: IPDD60R080G7XTMA1
Brand:: Infineon

Infineon C7 GOLD Type N-Channel MOSFET & Diode, 83 A, 650 V Enhancement, 10-Pin HDSOP

Subtotal (1 reel of 1700 units)*

£3,196.00

(exc. VAT)

£3,842.00

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,700 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1700 +	£1.88	£3,196.00

*price indicative

RS Stock No.:: 220-7417
Mfr. Part No.:: IPDD60R080G7XTMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET & Diode
	Channel Type	Type N
	Maximum Continuous Drain Current Id	83A
	Maximum Drain Source Voltage Vds	650V
	Package Type	HDSOP
	Series	C7 GOLD
	Mount Type	Surface
	Pin Count	10
	Maximum Drain Source Resistance Rds	80mΩ
	Channel Mode	Enhancement
	Forward Voltage Vf	0.8V
	Typical Gate Charge Qg @ Vgs	42nC
	Maximum Power Dissipation Pd	174W
	Maximum Gate Source Voltage Vgs	20 V
	Width	2.35 mm
	Standards/Approvals	No
	Length	6.6mm
	Height	21.11mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET & Diode
	Channel Type Type N
	Maximum Continuous Drain Current Id 83A
	Maximum Drain Source Voltage Vds 650V
	Package Type HDSOP
	Series C7 GOLD
	Mount Type Surface
	Pin Count 10
	Maximum Drain Source Resistance Rds 80mΩ
	Channel Mode Enhancement
	Forward Voltage Vf 0.8V
	Typical Gate Charge Qg @ Vgs 42nC
	Maximum Power Dissipation Pd 174W
	Maximum Gate Source Voltage Vgs 20 V
	Width 2.35 mm
	Standards/Approvals No
	Length 6.6mm
	Height 21.11mm
	Automotive Standard No

Datasheet - IPDD60R080G7XTMA1

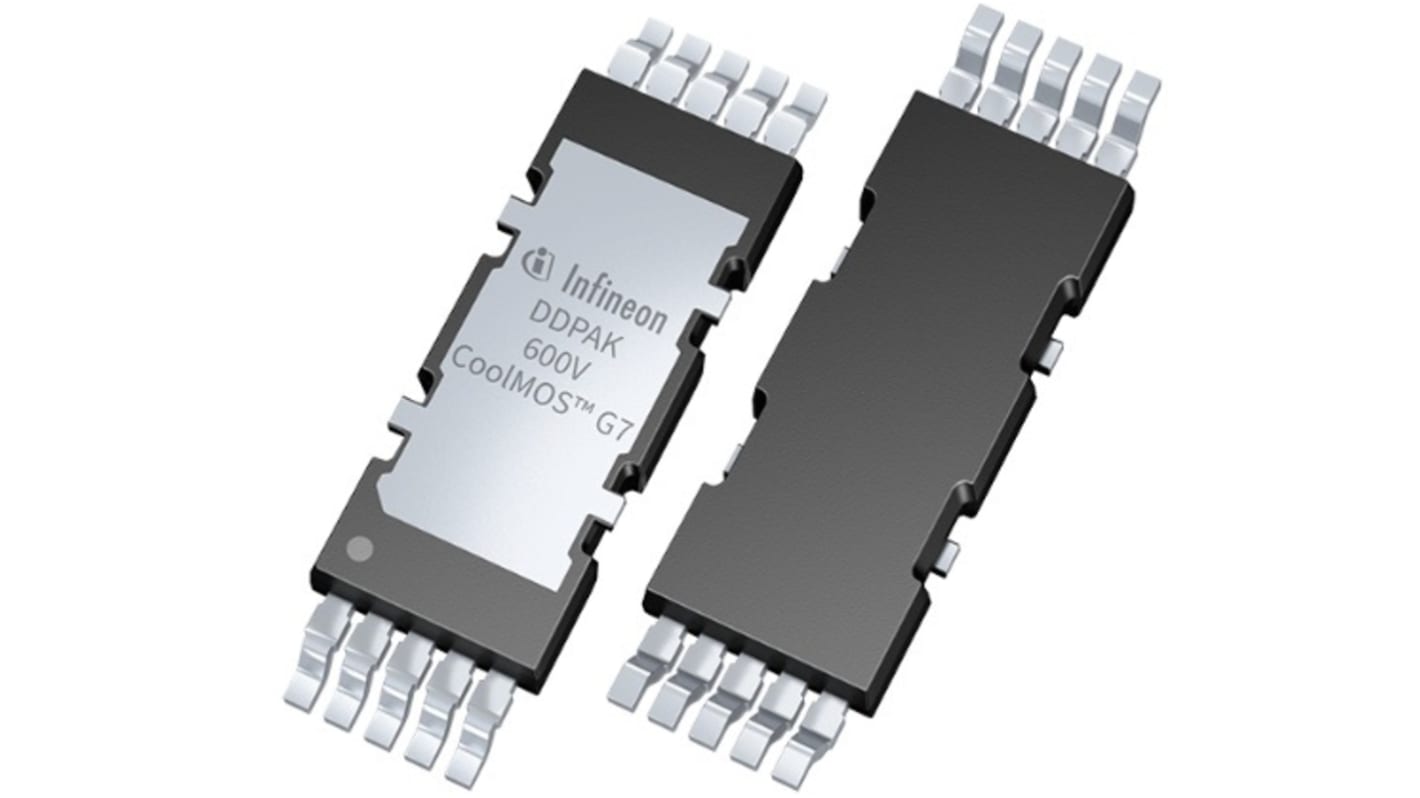

The Infineon technologies introduces Double DPAK (DDPAK), the first top-side cooled surface mount device (SMD) package addressing high power SMPS applications such as PC power, solar, server and telecom. The benefits of the already existing high voltage technology 600V Cool MOS G7 super junction (SJ) MOSFETis combined with the innovative concept of top-side cooling, providing a system solution for high current hard switching topologies such as PFC and a high-end efficiency solution for LLC topologies.

Gives best-in-class FOM RDS(on) x Eoss and RDS(on) x Qg

Innovative top-side cooling concept

Inbuilt 4th pin Kelvin source configuration and low parasitic source inductance

TCOB capability of >> 2.000 cycles, MSL1 compliant and total Pb-free

Enabling highest energy efficiency

Thermal decoupling of board and semiconductor allows to overcome thermal PCB limits

Reduced parasitic source inductance improves e efficiency and ease-of-use

Enables higher power density solutions

Exceeding the highest quality standards
