Infineon IPD Type N-Channel MOSFET, 20 A, 600 V N, 10-Pin HDSOP IPDD60R125G7XTMA1

RS Stock No.:: 258-3875
Mfr. Part No.:: IPDD60R125G7XTMA1
Brand:: Infineon

Infineon IPD Type N-Channel MOSFET, 20 A, 600 V N, 10-Pin HDSOP IPDD60R125G7XTMA1

Bulk discount available

Subtotal (1 unit)*

£3.08

(exc. VAT)

£3.70

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 913 unit(s) shipping from 29 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£3.08
10 - 24	£2.93
25 - 49	£2.80
50 - 99	£2.68
100 +	£2.49

*price indicative

RS Stock No.:: 258-3875
Mfr. Part No.:: IPDD60R125G7XTMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	20A
	Maximum Drain Source Voltage Vds	600V
	Series	IPD
	Package Type	HDSOP
	Mount Type	Surface
	Pin Count	10
	Maximum Drain Source Resistance Rds	125mΩ
	Channel Mode	N
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	30 V
	Forward Voltage Vf	0.8V
	Maximum Power Dissipation Pd	120W
	Typical Gate Charge Qg @ Vgs	27nC
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 20A
	Maximum Drain Source Voltage Vds 600V
	Series IPD
	Package Type HDSOP
	Mount Type Surface
	Pin Count 10
	Maximum Drain Source Resistance Rds 125mΩ
	Channel Mode N
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 30 V
	Forward Voltage Vf 0.8V
	Maximum Power Dissipation Pd 120W
	Typical Gate Charge Qg @ Vgs 27nC
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IPDD60R125G7XTMA1

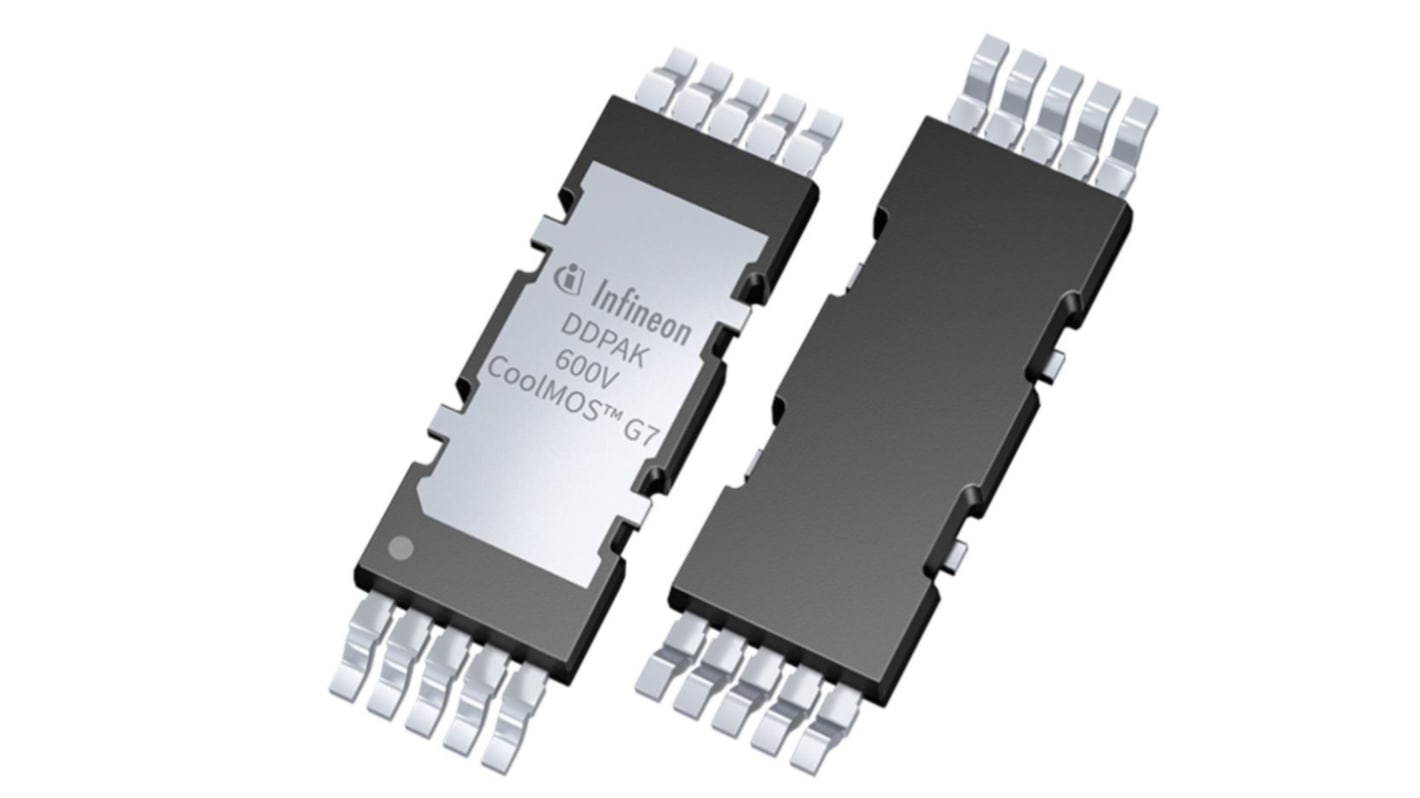

The Infineon Double DPAK, the first top-side cooled surface mount device package addressing high power SMPS applications such as PC power, solar, server and telecom. The benefits of the already existing high voltage technology 600V CoolMOS G7 super junction MOSFETis combined with the innovative concept of top-side cooling, providing a system solution for high current hard switching topologies such as PFC and a high-end efficiency solution for LLC topologies.

Innovative top-side cooling concept

Inbuilt 4th pin Kelvin source configuration and low parasitic source inductance

Enables higher power density solutions

Exceeding the highest quality standards
