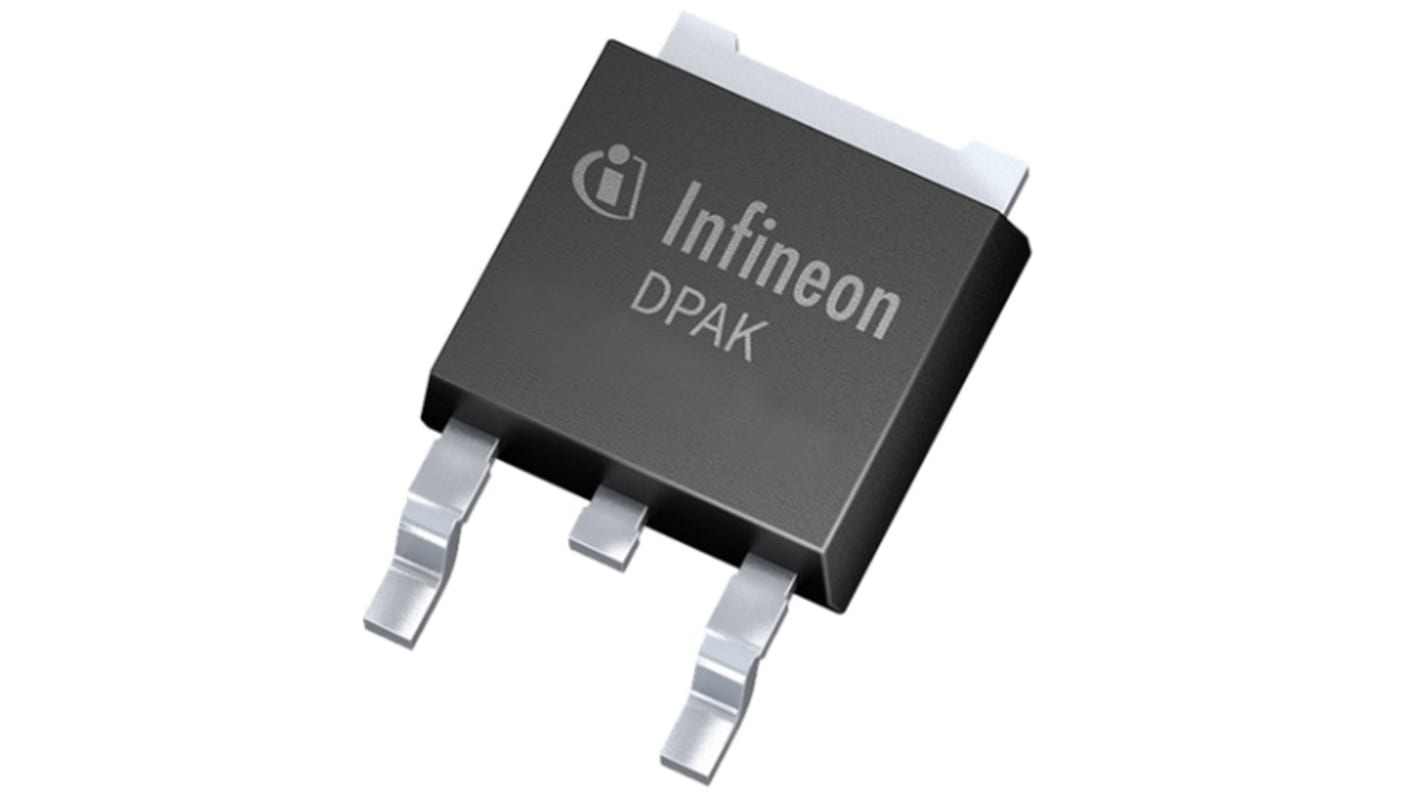

Infineon CoolMOS CE Type N-Channel MOSFET, 9 A, 500 V Enhancement, 3-Pin TO-252 IPD50R650CEAUMA1
- RS Stock No.:
- 214-9041
- Mfr. Part No.:
- IPD50R650CEAUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 25 units)*
£14.325
(exc. VAT)
£17.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2,500 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.573 | £14.33 |
| 125 - 225 | £0.544 | £13.60 |
| 250 - 600 | £0.533 | £13.33 |
| 625 - 1225 | £0.499 | £12.48 |
| 1250 + | £0.464 | £11.60 |
*price indicative
- RS Stock No.:
- 214-9041
- Mfr. Part No.:
- IPD50R650CEAUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 9A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Package Type | TO-252 | |
| Series | CoolMOS CE | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 650mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 47W | |
| Forward Voltage Vf | 0.84V | |
| Typical Gate Charge Qg @ Vgs | 15nC | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.41mm | |
| Width | 6.22 mm | |
| Length | 6.73mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 9A | ||
Maximum Drain Source Voltage Vds 500V | ||
Package Type TO-252 | ||
Series CoolMOS CE | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 650mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 47W | ||
Forward Voltage Vf 0.84V | ||
Typical Gate Charge Qg @ Vgs 15nC | ||
Maximum Operating Temperature 150°C | ||
Height 2.41mm | ||
Width 6.22 mm | ||
Length 6.73mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction (SJ) principle and pioneered by Infineon Technologies. CoolMOS CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Super junction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Easy to use/drive
Very high commutation ruggedness
Qualified for standard grade applications
