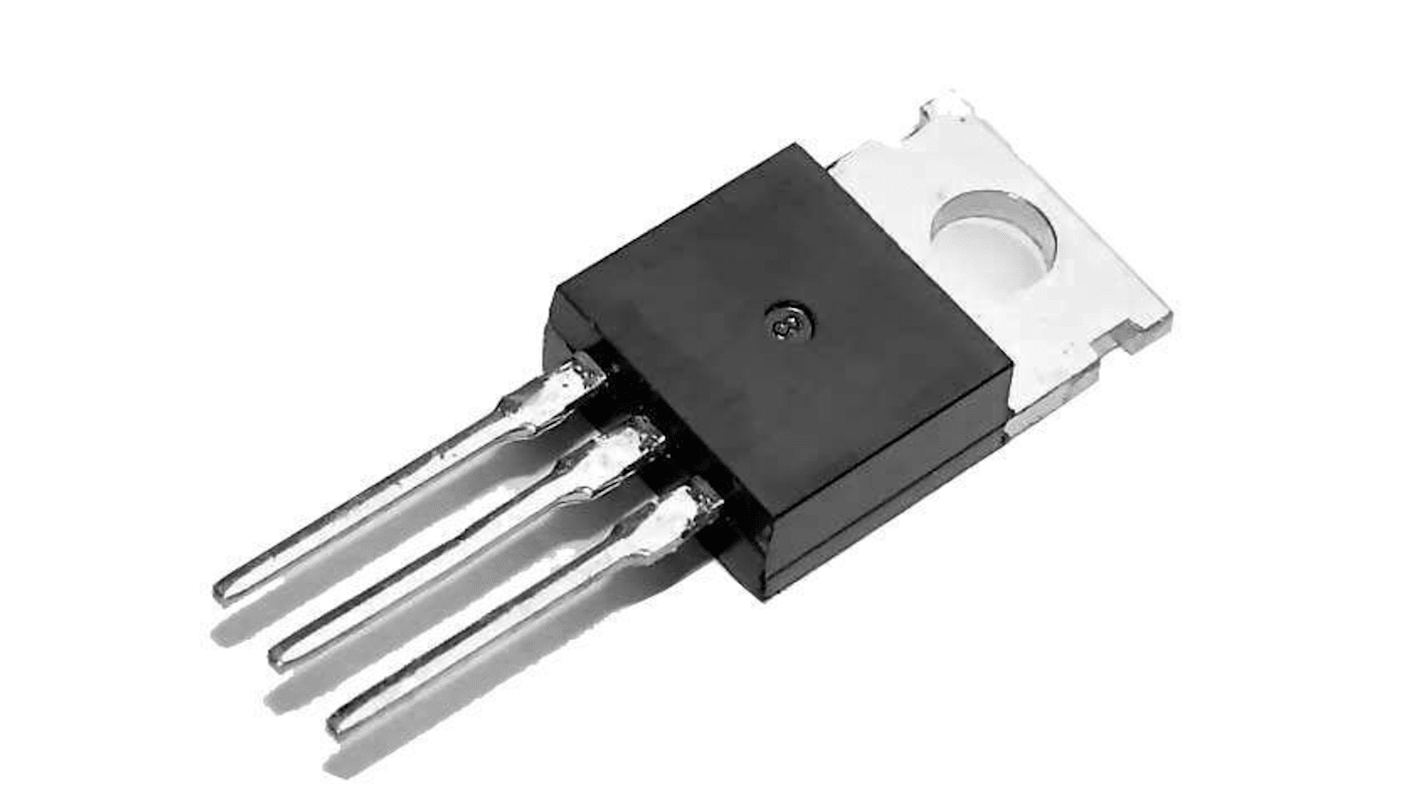

onsemi NTPF Type N-Channel MOSFET, 11 A, 800 V Enhancement, 3-Pin TO-220
- RS Stock No.:
- 214-8914
- Mfr. Part No.:
- NTPF450N80S3Z
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 50 units)*
£65.40
(exc. VAT)
£78.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,950 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.308 | £65.40 |
| 100 - 100 | £1.257 | £62.85 |
| 150 + | £1.241 | £62.05 |
*price indicative
- RS Stock No.:
- 214-8914
- Mfr. Part No.:
- NTPF450N80S3Z
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 11A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Series | NTPF | |
| Package Type | TO-220 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 450mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 29.5W | |
| Typical Gate Charge Qg @ Vgs | 19.3nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 10.53mm | |
| Width | 15.75 mm | |
| Height | 4.83mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 11A | ||
Maximum Drain Source Voltage Vds 800V | ||
Series NTPF | ||
Package Type TO-220 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 450mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 29.5W | ||
Typical Gate Charge Qg @ Vgs 19.3nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 10.53mm | ||
Width 15.75 mm | ||
Height 4.83mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The ON Semiconductor is high performance MOSFET family offering 800 V breakdown voltage. It is optimized for primary switch of fly back converter, enables lower switching losses and case temperature without sacrificing EMI performance.
ESD Improved capability with zener diode
RoHS Compliant
