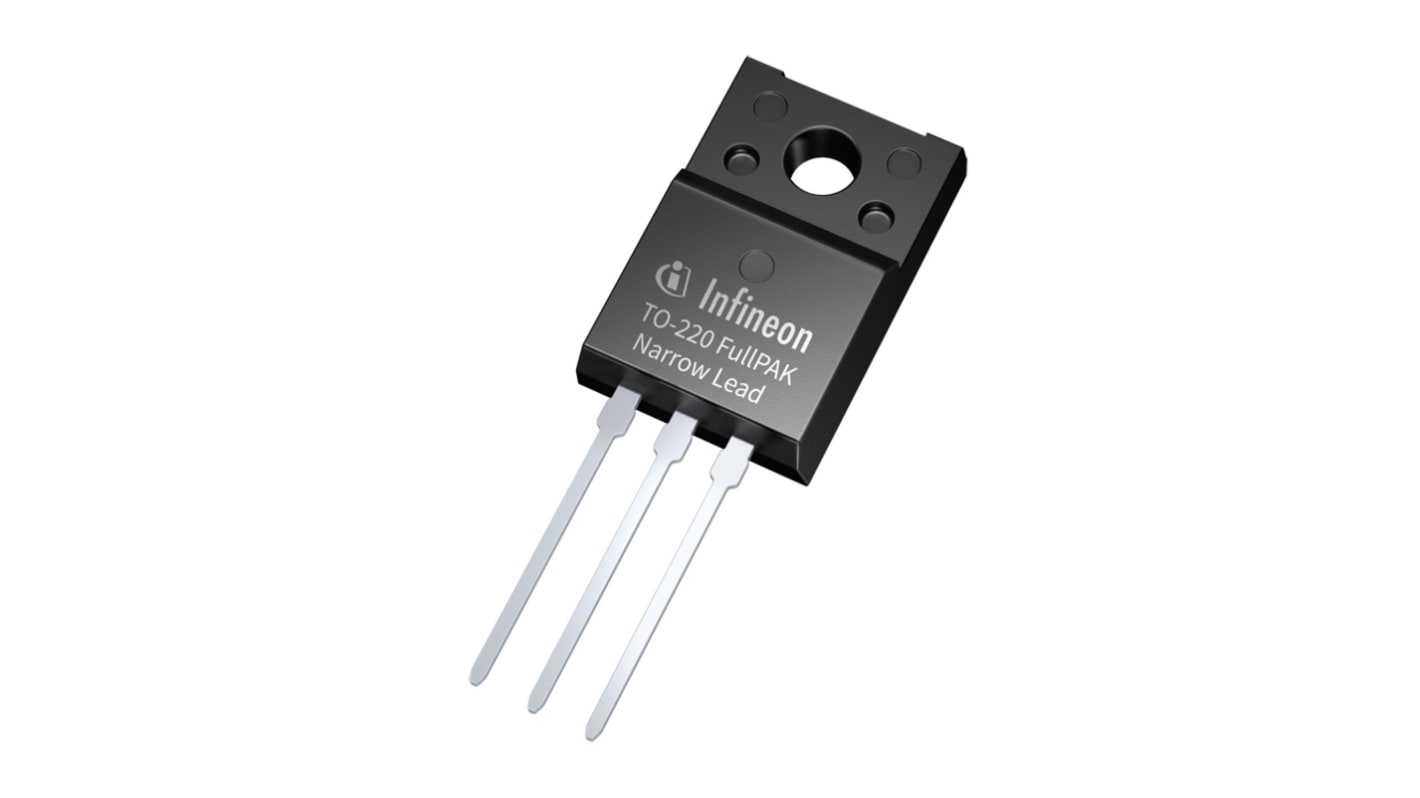

N-Channel MOSFET, 11 A, 800 V, 3-Pin TO-220 FP Infineon IPAN80R450P7XKSA1
- RS Stock No.:
- 215-2494
- Mfr. Part No.:
- IPAN80R450P7XKSA1
- Brand:
- Infineon
430 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£1.06
(exc. VAT)
£1.27
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.06 | £10.60 |
| 50 - 90 | £1.007 | £10.07 |
| 100 - 240 | £0.965 | £9.65 |
| 250 - 490 | £0.922 | £9.22 |
| 500 + | £0.859 | £8.59 |
*price indicative
- RS Stock No.:
- 215-2494
- Mfr. Part No.:
- IPAN80R450P7XKSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon 800V Cool MOS™ P7 super junction MOSFET series is a perfect fit for low power SMPS applications by fully addressing market needs in performance, ease-of-use and price/performance ratio. It mainly focuses on fly back applications including adapter and charger, LED driver, audio SMPS, AUX and industrial power. This new product family offers up to 0.6% efficiency gain and 2°C to 8°C lower MOSFET temperature compared to its predecessor as well as to competitor parts tested in typical fly back applications. It also enables higher power density designs through lower switching losses and better DPAK RDS(on) products.
Integrated Zener diode ESD protection up to Class 2 (HBM)
Best-in-class quality and reliability
Fully optimized portfolio
Best-in-class quality and reliability
Fully optimized portfolio
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 11 A |
| Maximum Drain Source Voltage | 800 V |
| Package Type | TO-220 FP |
| Series | CoolMOS™ P7 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 0.45 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
