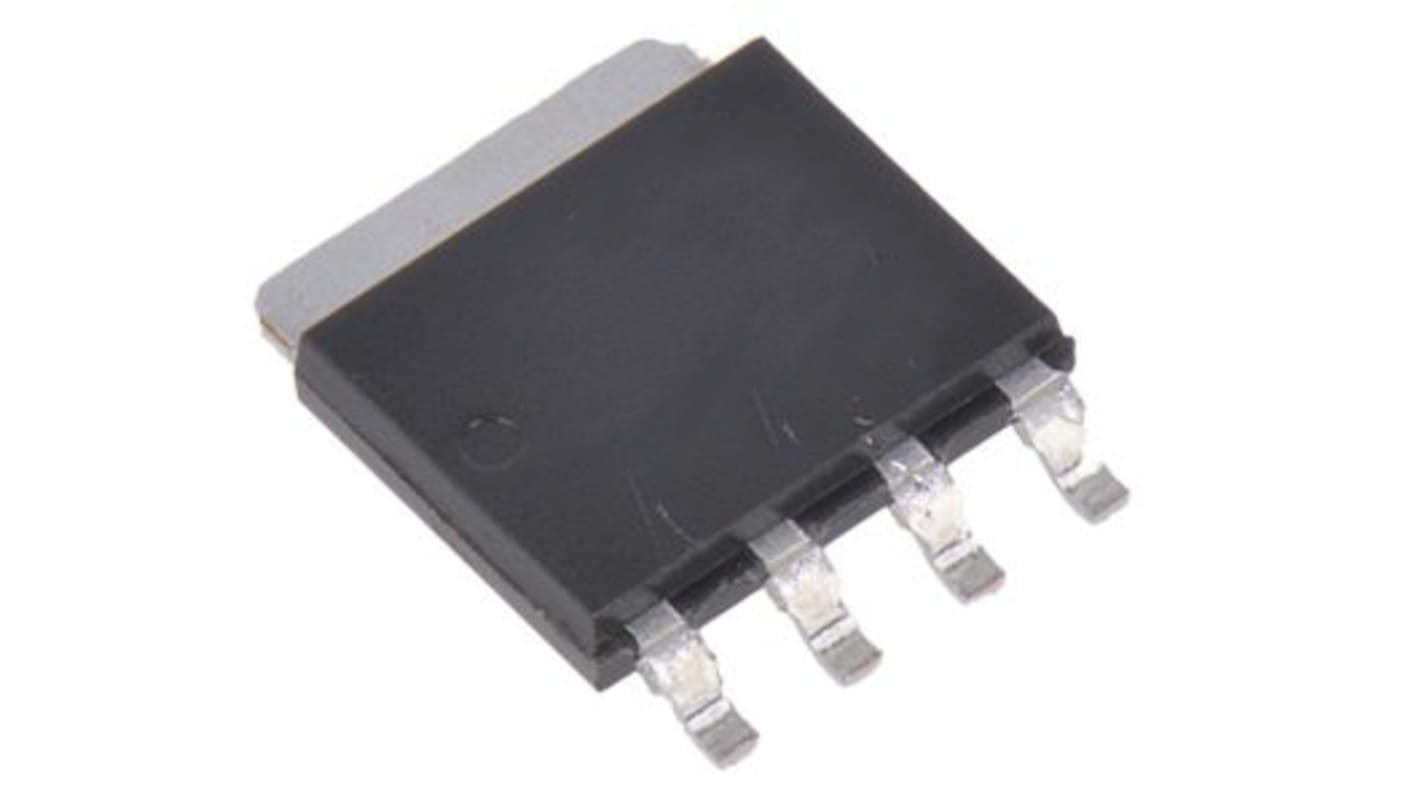

onsemi N-Channel MOSFET, 27 A, 60 V, 4-Pin LFPAK, SOT-669 NTMYS021N06CLTWG
- RS Stock No.:
- 195-2535
- Mfr. Part No.:
- NTMYS021N06CLTWG
- Brand:
- onsemi
Subtotal (1 pack of 30 units)*
£23.52
(exc. VAT)
£28.23
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 20 April 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 30 - 90 | £0.784 | £23.52 |
| 120 - 270 | £0.676 | £20.28 |
| 300 + | £0.586 | £17.58 |
*price indicative
- RS Stock No.:
- 195-2535
- Mfr. Part No.:
- NTMYS021N06CLTWG
- Brand:
- onsemi
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 27 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | LFPAK, SOT-669 | |
| Mounting Type | Surface Mount | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance | 31.5 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1.2V | |
| Maximum Power Dissipation | 28 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±20 V | |
| Length | 5mm | |
| Width | 4.25mm | |
| Maximum Operating Temperature | +175 °C | |
| Number of Elements per Chip | 1 | |
| Typical Gate Charge @ Vgs | 5 nC @ 10 V | |
| Forward Diode Voltage | 1.2V | |
| Height | 1.15mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 27 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type LFPAK, SOT-669 | ||
Mounting Type Surface Mount | ||
Pin Count 4 | ||
Maximum Drain Source Resistance 31.5 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 1.2V | ||
Maximum Power Dissipation 28 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Length 5mm | ||
Width 4.25mm | ||
Maximum Operating Temperature +175 °C | ||
Number of Elements per Chip 1 | ||
Typical Gate Charge @ Vgs 5 nC @ 10 V | ||
Forward Diode Voltage 1.2V | ||
Height 1.15mm | ||
Minimum Operating Temperature -55 °C | ||
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
LFPAK4 Package, Industry Standard
These Devices are Pb−Free
