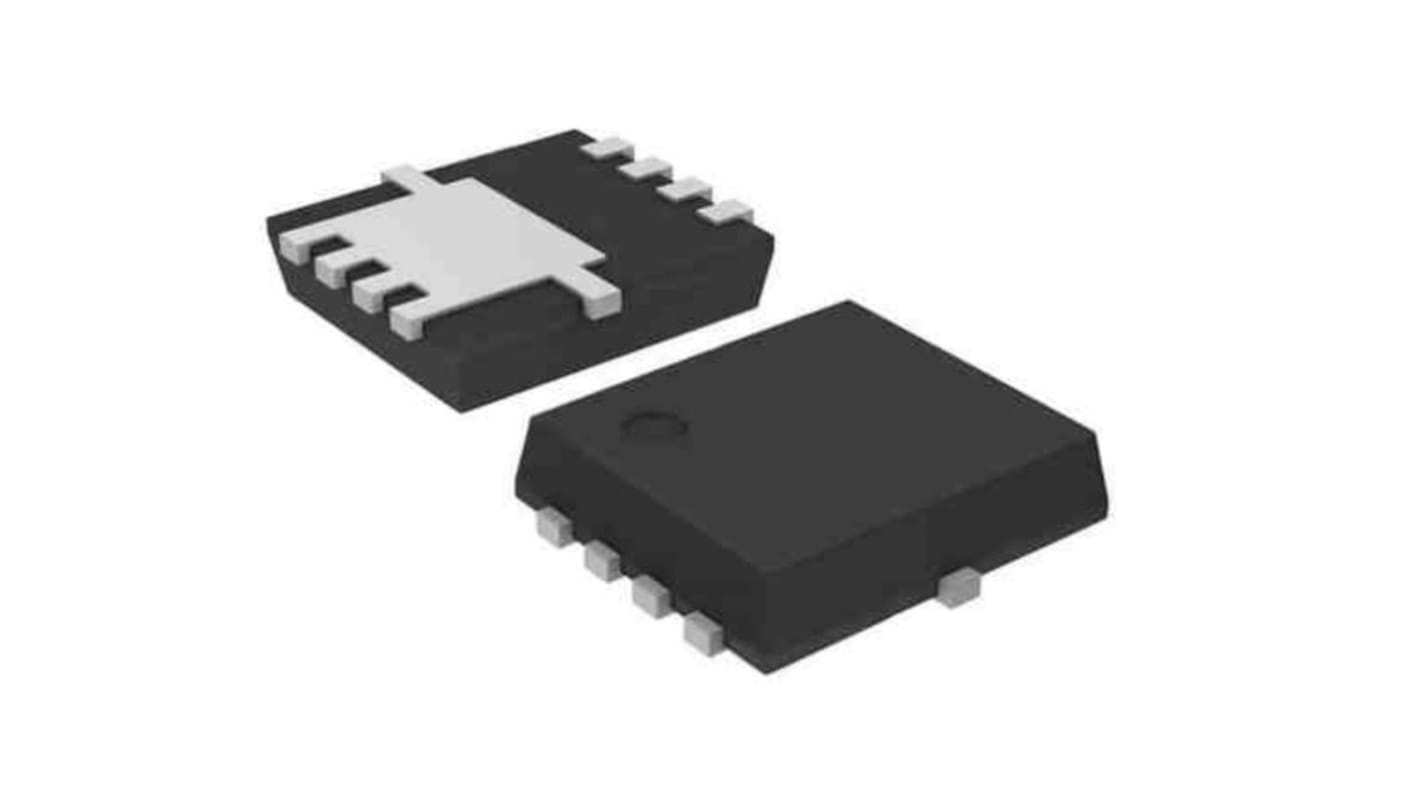

Toshiba N-Channel MOSFET, 100 A, 40 V, 8-Pin TSON TPN2R304PL

View all MOSFETs

Subtotal (1 reel of 5000 units)*

£2,470.00

(exc. VAT)

£2,965.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
5000 +£0.494£2,470.00

*price indicative

RS Stock No.:
171-2208
Mfr. Part No.:
TPN2R304PL
Brand:
Toshiba
Find similar products by selecting one or more attributes.
Select all

Brand

Toshiba

Channel Type

N

Maximum Continuous Drain Current

100 A

Maximum Drain Source Voltage

40 V

Package Type

TSON

Mounting Type

Surface Mount

Pin Count

8

Maximum Drain Source Resistance

4 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

2.4V

Minimum Gate Threshold Voltage

1.4V

Maximum Power Dissipation

104 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±20 V

Maximum Operating Temperature

+175 °C

Length

3.1mm

Typical Gate Charge @ Vgs

41 nC @ 10 V

Number of Elements per Chip

1

Width

3.1mm

Forward Diode Voltage

1.2V

Height

0.85mm

RoHS Status: Exempt

High-Efficiency DC-DC Converters
Switching Voltage Regulators
Motor Drivers
High-speed switching
Small gate charge: QSW = 10.8 nC (typ.)
Small output charge: Qoss = 27 nC (typ.)
Low drain-source on-resistance: RDS(ON) = 1.8 mΩ (typ.) (VGS = 10 V)
Low leakage current: IDSS = 10 μA (max) (VDS = 40 V)
Enhancement mode: Vth = 1.4 to 2.4 V (VDS = 10 V, ID = 0.3 mA)
