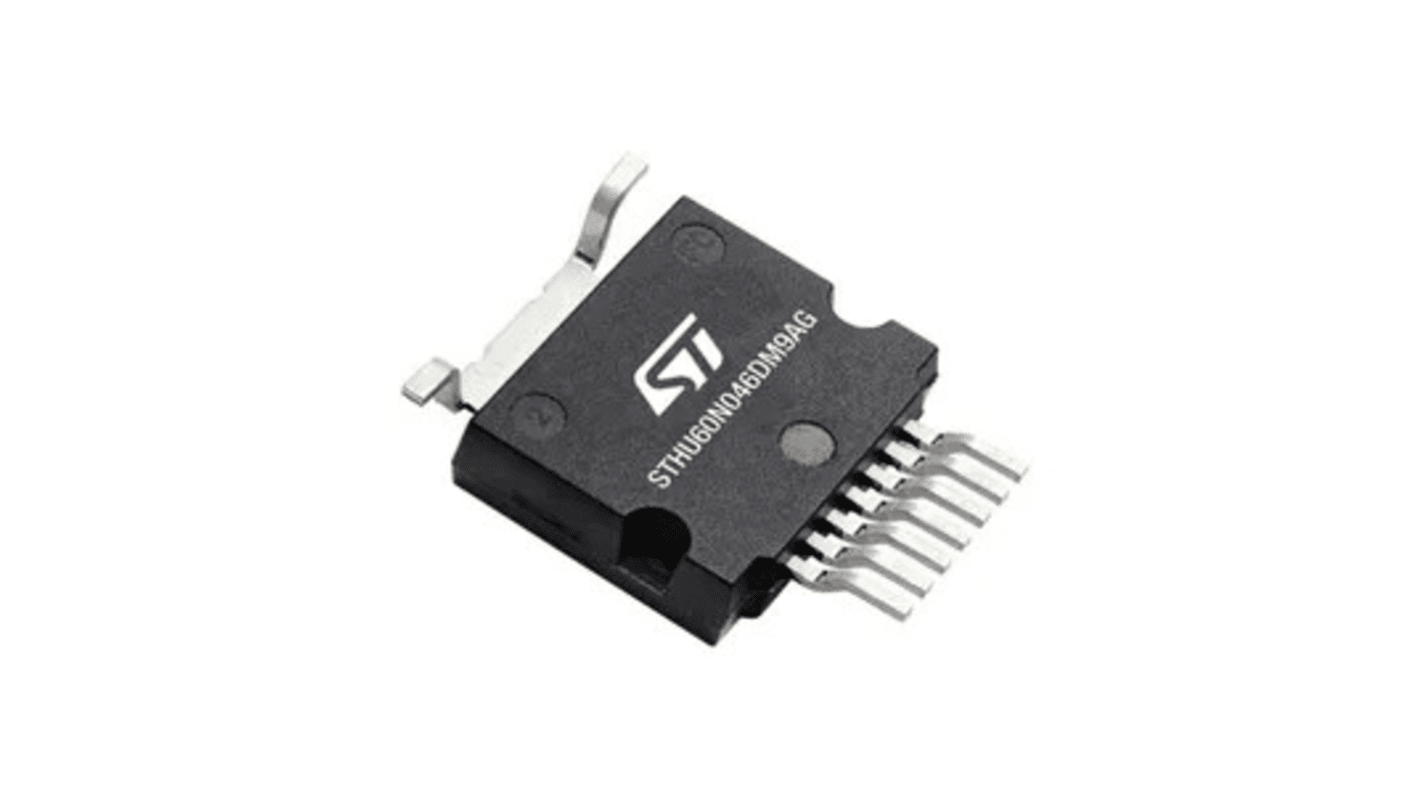

STMicroelectronics STHU60 N-Channel MOSFET, 54 A, 600 V, 7-Pin HU3PAK STHU60N046DM9AG
- RS Stock No.:
- 481-130
- Mfr. Part No.:
- STHU60N046DM9AG
- Brand:
- STMicroelectronics
Subtotal (1 reel of 600 units)*
£2,381.40
(exc. VAT)
£2,857.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
600 + | £3.969 | £2,381.40 |
*price indicative
- RS Stock No.:
- 481-130
- Mfr. Part No.:
- STHU60N046DM9AG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 54 A | |
Maximum Drain Source Voltage | 600 V | |
Series | STHU60 | |
Package Type | HU3PAK | |
Mounting Type | Surface Mount | |
Pin Count | 7 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 54 A | ||
Maximum Drain Source Voltage 600 V | ||
Series STHU60 | ||
Package Type HU3PAK | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- JP
The STMicroelectronics N-Channel Power MOSFET is based on advanced super-junction MDmesh DM9 technology, designed for medium to high voltage applications. It features very low RDS(on) per area and an integrated fast-recovery diode. The DM9 technology uses a multi-drain manufacturing process to enhance device structure and performance. With low recovery charge (Qrr), fast recovery time (trr), and low RDS(on), this fast-switching MOSFET is ideal for high-efficiency bridge topologies and ZVS phase-shift converters.
Low gate charge and resistance
100% avalanche tested
Extremely high dv/dt ruggedness
Excellent switching performance thanks to the extra driving source pin
AEC-Q101 qualified
100% avalanche tested
Extremely high dv/dt ruggedness
Excellent switching performance thanks to the extra driving source pin
AEC-Q101 qualified
