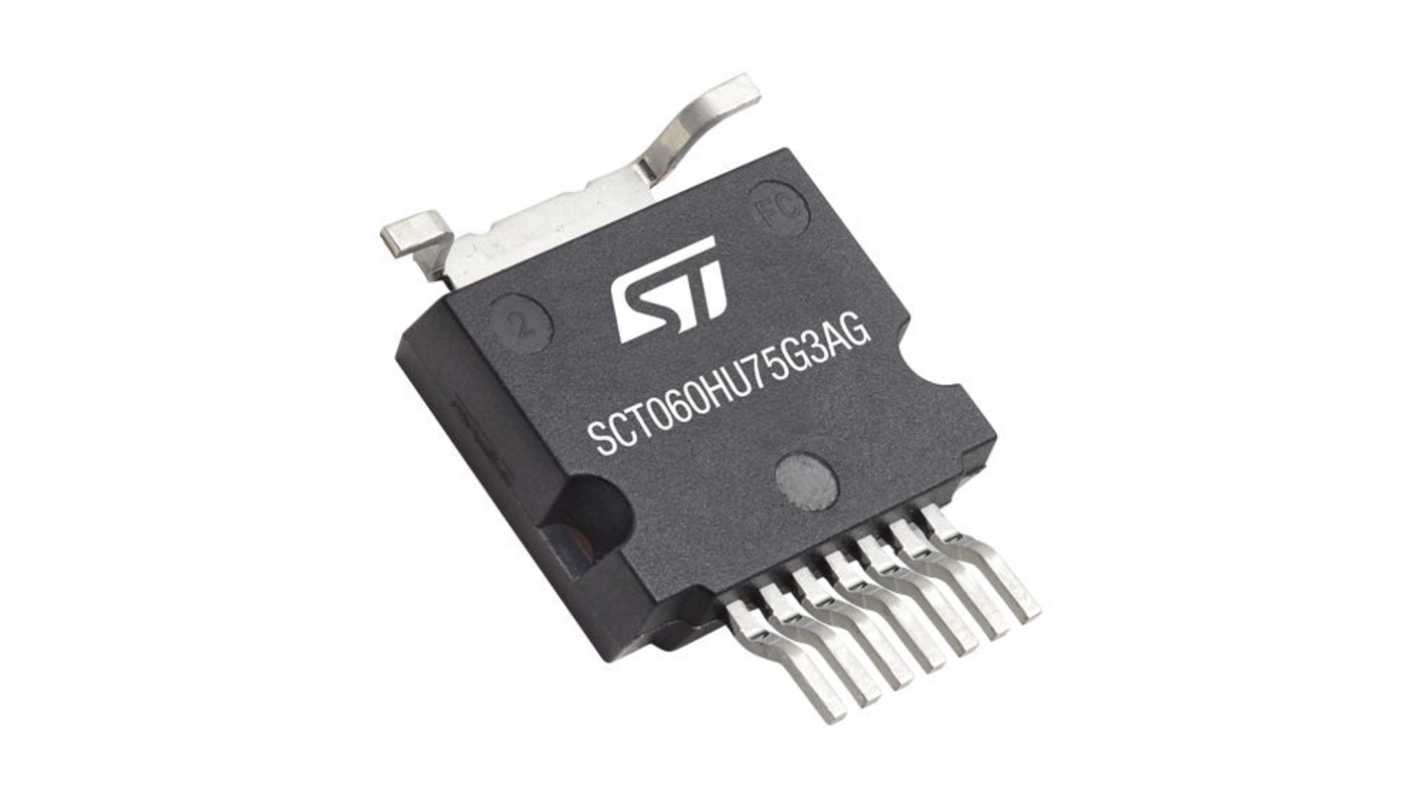

STMicroelectronics SCT SiC N-Channel MOSFET, 30 A, 750 V, 7-Pin HU3PAK SCT060HU75G3AG
- RS Stock No.:
- 215-239
- Mfr. Part No.:
- SCT060HU75G3AG
- Brand:
- STMicroelectronics
Subtotal (1 reel of 600 units)*
£5,824.80
(exc. VAT)
£6,990.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 600 unit(s), ready to ship
Units | Per unit | Per Reel* |
---|---|---|
600 + | £9.708 | £5,824.80 |
*price indicative
- RS Stock No.:
- 215-239
- Mfr. Part No.:
- SCT060HU75G3AG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 30 A | |
Maximum Drain Source Voltage | 750 V | |
Package Type | HU3PAK | |
Series | SCT | |
Mounting Type | Surface Mount | |
Pin Count | 7 | |
Channel Mode | Enhancement | |
Transistor Material | SiC | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 30 A | ||
Maximum Drain Source Voltage 750 V | ||
Package Type HU3PAK | ||
Series SCT | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Channel Mode Enhancement | ||
Transistor Material SiC | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- JP
The STMicroelectronics Silicon carbide Power MOSFET device has been developed using STs advanced and innovative 3rd generation SiC MOSFET technology. The device features a very low RDS(on) over the entire temperature range combined with low capacitances and very high switching operations, which improve application performance in frequency, energy efficiency, system size and weight reduction.
High speed switching performances
Very fast and robust intrinsic body diode
Very fast and robust intrinsic body diode
