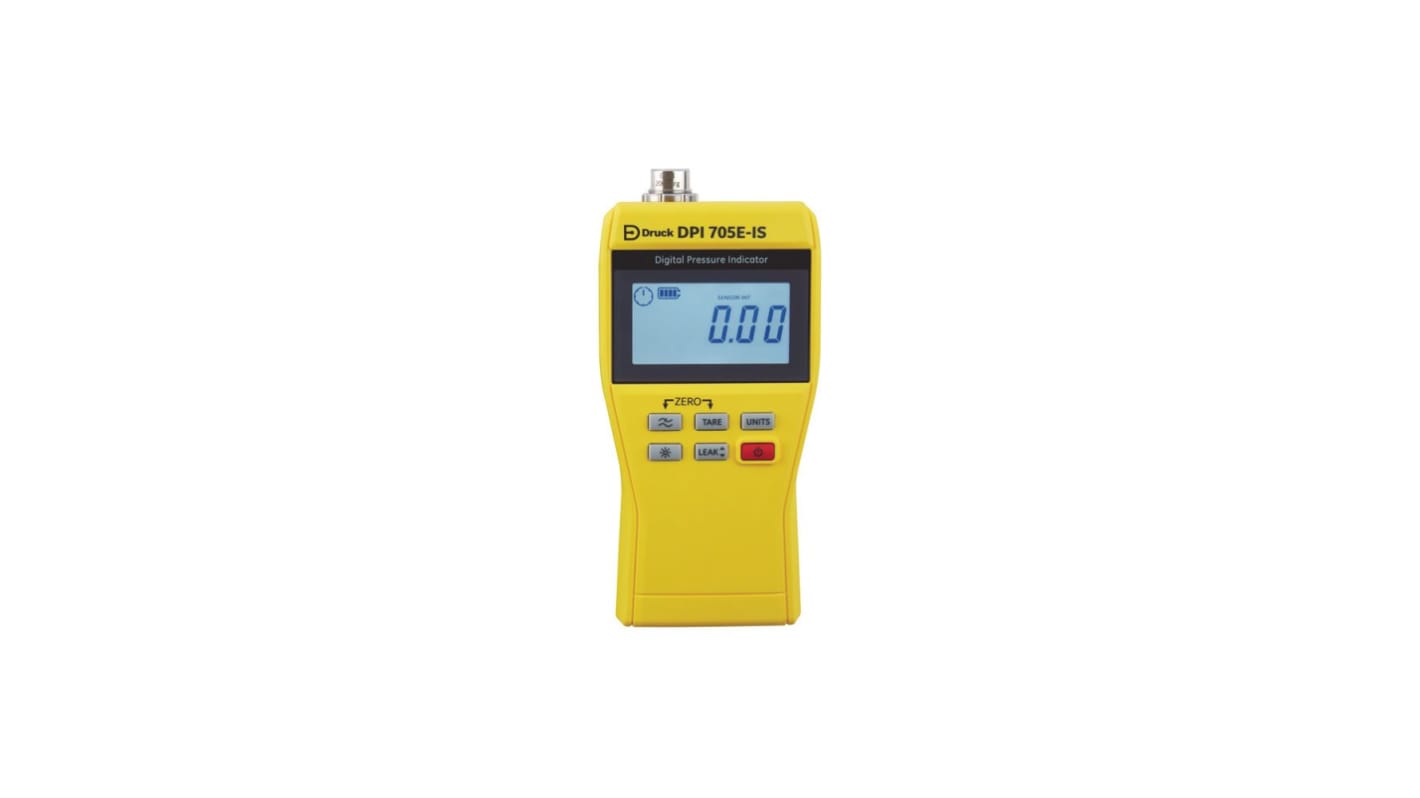

Druck DPI705EIS Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

RS Stock No.:: 261-4595
Mfr. Part No.:: DPI705EIS-1-10G-P1-H1-U0-OP0
Brand:: Druck

Druck DPI705EIS Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

Subtotal (1 unit)*

£824.06

(exc. VAT)

£988.87

(inc. VAT)

Add 1 unit to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

Temporarily out of stock

7 unit(s) shipping from 18 February 2026
Plus 2 unit(s) shipping from 11 March 2026
Plus 2 unit(s) shipping from 25 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£824.06

*price indicative

RS Stock No.:: 261-4595
Mfr. Part No.:: DPI705EIS-1-10G-P1-H1-U0-OP0
Brand:: Druck

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Accuracy	+/-0.1%FS
	Product Type	Manometer
	Number of Pressure Ports	1
	Maximum Pressure Measurement	7bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	Gauge
	Leak Testing	Yes
	Data Logging	No
	Model Number	DPI705EIS
	Intrinsically Safe	Yes
	IP Rating	IP54
	Battery Type	AA
	Minimum Operating Temperature	-10°C
	Maximum Overpressure	1400bar
	Display Type	LCD Backlight
	Maximum Operating Temperature	50°C
	Length	200mm
	Standards/Approvals	No
	Width	95 mm
	Height	43mm
	Weight	563g
	Hazardous Area Certification	IECEx/ATEX
	Calibrated	RSCAL

	Select all
	Brand Druck
	Accuracy +/-0.1%FS
	Product Type Manometer
	Number of Pressure Ports 1
	Maximum Pressure Measurement 7bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type Gauge
	Leak Testing Yes
	Data Logging No
	Model Number DPI705EIS
	Intrinsically Safe Yes
	IP Rating IP54
	Battery Type AA
	Minimum Operating Temperature -10°C
	Maximum Overpressure 1400bar
	Display Type LCD Backlight
	Maximum Operating Temperature 50°C
	Length 200mm
	Standards/Approvals No
	Width 95 mm
	Height 43mm
	Weight 563g
	Hazardous Area Certification IECEx/ATEX
	Calibrated RSCAL

Datasheet - DPI705EIS-1-10G-P1-H1-U0-OP0

COO (Country of Origin):: GB

Druck Manometer, 7 bar Maximum Pressure Measurement, 1 Pressure Port - DPI705EIS-1-10G-P1-H1-U0-OP0

This handheld pressure indicator from the Druck offers ideal accuracy and reliability for industrial use. With a compact design and a wide range of features, it provides essential tools for routine maintenance and troubleshooting in a variety of applications.

Features & Benefits

• 41 pressure ranges from ±25 mbar to 1,400 bar

• Uncertainty down to 0.05% full scale over temperature range

• Integral calibration record with countdown display

• Backlit high-contrast display for easy reading

• Leak test and maximum/minimum functions for efficient testing

• Hazardous area version available for safety

• Compatible with remote pressure and RTD sensors for added functionality

Applications

• Routine maintenance in industrial settings

• System troubleshooting and calibration

• Leak detection in pneumatic and hydraulic systems

• Temperature measurement in hazardous areas

Can it provide accurate pressure measurements in hazardous areas?

Yes, the Druck DPI705EIS Manometer is designed for use in hazardous areas with its Hazardous Area certification.

Will it work with remote pressure sensors for added convenience?

Yes, it can be used with the remote pressure sensors to expand its capabilities.

Is the DPI705EIS suitable for calibrating pressure transmitters and gauges?

Yes, the DPI705EIS provides a simple and low-cost calibration solution for various pressure instruments.
