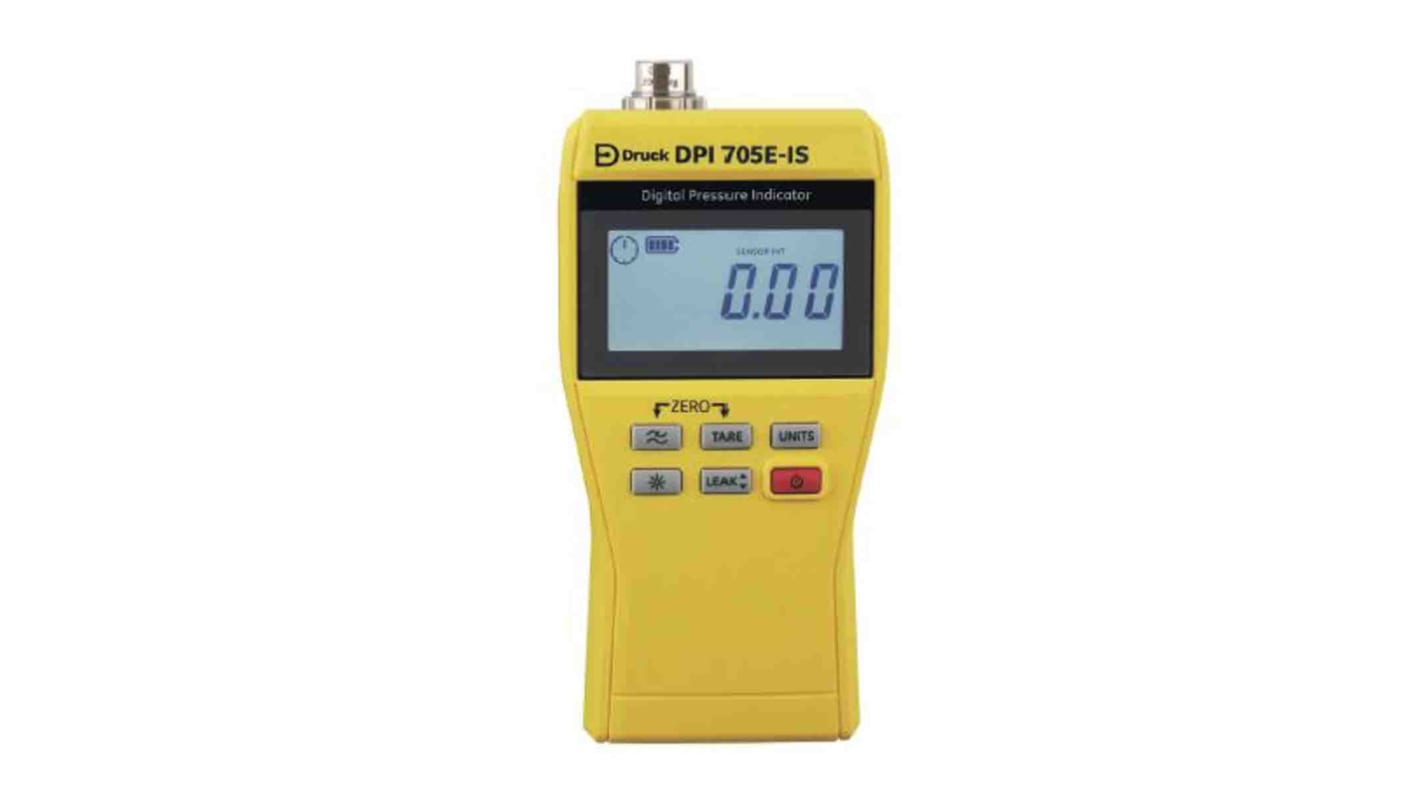

Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 10bar With RS Calibration
- RS Stock No.:
- 201-3037
- Mfr. Part No.:
- DPI705EIS-1-11G-P1-H1-U0-OP0
- Brand:
- Druck
Subtotal (1 unit)*
£853.85
(exc. VAT)
£1,024.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £853.85 |
*price indicative
- RS Stock No.:
- 201-3037
- Mfr. Part No.:
- DPI705EIS-1-11G-P1-H1-U0-OP0
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Druck | |
Best Accuracy | ±0.1 % | |
Calibrated | RSCAL | |
Number of Pressure Ports | 1 | |
Maximum Pressure Measurement | 10bar | |
Minimum Pressure Measurement | 0bar | |
Pressure Port Type | Gauge | |
Leak Testing | Yes | |
Data Logging | No | |
Model Number p | DPI705E | |
Intrinsically Safe | Yes | |
IP Rating | IP54 | |
Battery Type | AA | |
Display Type | Backlit LCD | |
Hazardous Area Certification | ATEX | |
Weight | 563g | |
Maximum Operating Temperature | +50°C | |
Height | 43mm | |
Minimum Operating Temperature | -10°C | |
Dimensions | 200 x 95mm | |
Length | 200mm | |
Width | 95mm | |
Select all | ||
---|---|---|
Brand Druck | ||
Best Accuracy ±0.1 % | ||
Calibrated RSCAL | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 10bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Gauge | ||
Leak Testing Yes | ||
Data Logging No | ||
Model Number p DPI705E | ||
Intrinsically Safe Yes | ||
IP Rating IP54 | ||
Battery Type AA | ||
Display Type Backlit LCD | ||
Hazardous Area Certification ATEX | ||
Weight 563g | ||
Maximum Operating Temperature +50°C | ||
Height 43mm | ||
Minimum Operating Temperature -10°C | ||
Dimensions 200 x 95mm | ||
Length 200mm | ||
Width 95mm | ||
- COO (Country of Origin):
- GB
Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 10bar With UKAS Calibration
The DPI 705E series also have integrated pressure sensors, designed to interface directly with external remote pressure or optional remote plug and-play Resistance Temperature Detector (RTD) sensors providing even more flexibility whilst out in the field. Each pressure sensor holds integral calibration data, meaning a single DPI 705E can be used with multiple remote sensors, allowing various ranges to be measured in seconds. The sensors hold a record of the calibration date, which is relayed to the operator through the calibration due countdown shown on the pressure indicators display. The power-efficient design means that the indicators can be used for eight hours per day, six days per week for one year using a single set of batteries.
Features and Benefits
Integral calibration record with calibration due count-down display
Optional pneumatic
Hydraulic hand pumps
Optional pneumatic
Hydraulic hand pumps
The Druck DPI705E Internal Pressure Sensors includes an internal Absolute, Gauge or Differential sensor has a tough and rugged design with accurate and reliable measurements. It is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.
Integral calibration record with calibration due count-down display
Optional pneumatic
Hydraulic hand pumps
Optional pneumatic
Hydraulic hand pumps
