Druck DPI705E Absolute Manometer With 1 Pressure Port/s, Max Pressure Measurement 2bar With RS Calibration
- RS Stock No.:
- 201-3027
- Mfr. Part No.:
- DPI705EIS-1-07A-P1-H1-U0-OP0
- Brand:
- Druck
Subtotal (1 unit)*
£853.85
(exc. VAT)
£1,024.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6 unit(s) shipping from 12 November 2025
- Plus 2 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £853.85 |
*price indicative
- RS Stock No.:
- 201-3027
- Mfr. Part No.:
- DPI705EIS-1-07A-P1-H1-U0-OP0
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Best Accuracy | ±0.1 % | |
| Calibrated | RSCAL | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 2bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Port Type | Absolute | |
| Leak Testing | Yes | |
| Data Logging | No | |
| Model Number p | DPI705E | |
| Intrinsically Safe | Yes | |
| IP Rating | IP54 | |
| Battery Type | AA | |
| Display Type | Backlit LCD | |
| Weight | 563g | |
| Hazardous Area Certification | ATEX | |
| Length | 200mm | |
| Width | 95mm | |
| Height | 43mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Dimensions | 200 x 95mm | |
Select all | ||
|---|---|---|
Brand Druck | ||
Best Accuracy ±0.1 % | ||
Calibrated RSCAL | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 2bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Absolute | ||
Leak Testing Yes | ||
Data Logging No | ||
Model Number p DPI705E | ||
Intrinsically Safe Yes | ||
IP Rating IP54 | ||
Battery Type AA | ||
Display Type Backlit LCD | ||
Weight 563g | ||
Hazardous Area Certification ATEX | ||
Length 200mm | ||
Width 95mm | ||
Height 43mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Dimensions 200 x 95mm | ||
- COO (Country of Origin):
- GB

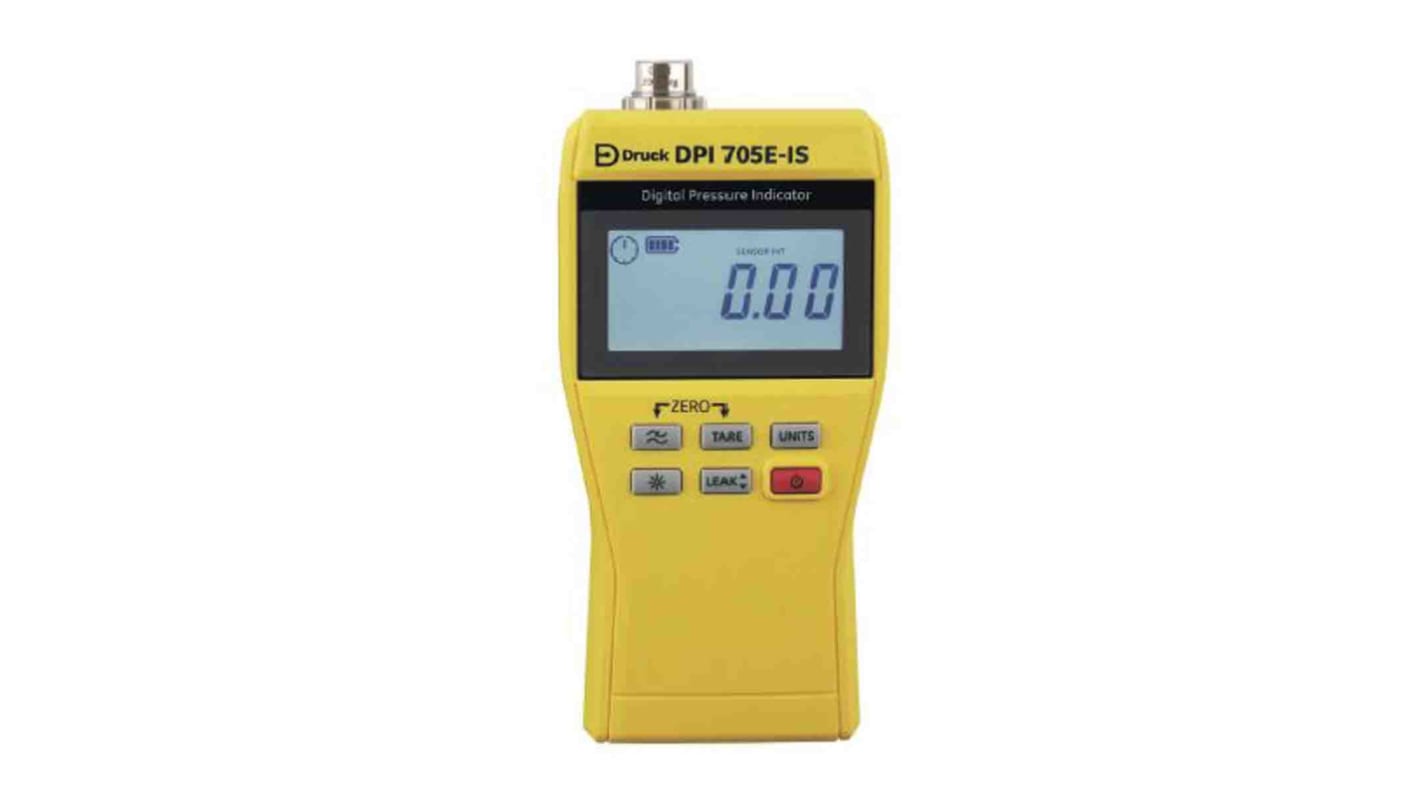

Druck Manometer, AA Battery, 200 x 95 mm - DPI705EIS-1-07A-P1-H1-U0-OP0
This handheld pressure indicator offers a rugged design combined with accurate and reliable measurements. With a compact and robust design, this device is suitable for single-handed operation and provides essential features for routine maintenance and system troubleshooting.
Features & Benefits
• Offers 41 pressure ranges from ±25 mbar to 1,400 bar
• Total uncertainty down to 0.05% full scale over temperature range of -10°C to +50°C
• Integral calibration record with calibration due count-down display
• Rugged design with backlit high-contrast display
• Leak test, tare, maximum/minimum, and filter functions
• Hazardous area (intrinsically safe) version available
• Compatible with pneumatic and hydraulic hand pumps
• Long battery life with 4 x AA cells
• Total uncertainty down to 0.05% full scale over temperature range of -10°C to +50°C
• Integral calibration record with calibration due count-down display
• Rugged design with backlit high-contrast display
• Leak test, tare, maximum/minimum, and filter functions
• Hazardous area (intrinsically safe) version available
• Compatible with pneumatic and hydraulic hand pumps
• Long battery life with 4 x AA cells
Applications
• Suitable for pressure measurement in a variety of industries
Can it be used for pressure measurement in hazardous areas?
Yes, it comes with an Intrinsically Safe version for hazardous area applications.
Will it provide accurate pressure readings in extreme temperatures?
The device offers accuracy in a temperature range of -10°C to +50°C.
Is the Druck DPI705E suitable for single-handed operation?
Yes, the compact and robust design allows for easy single-handed operation.
