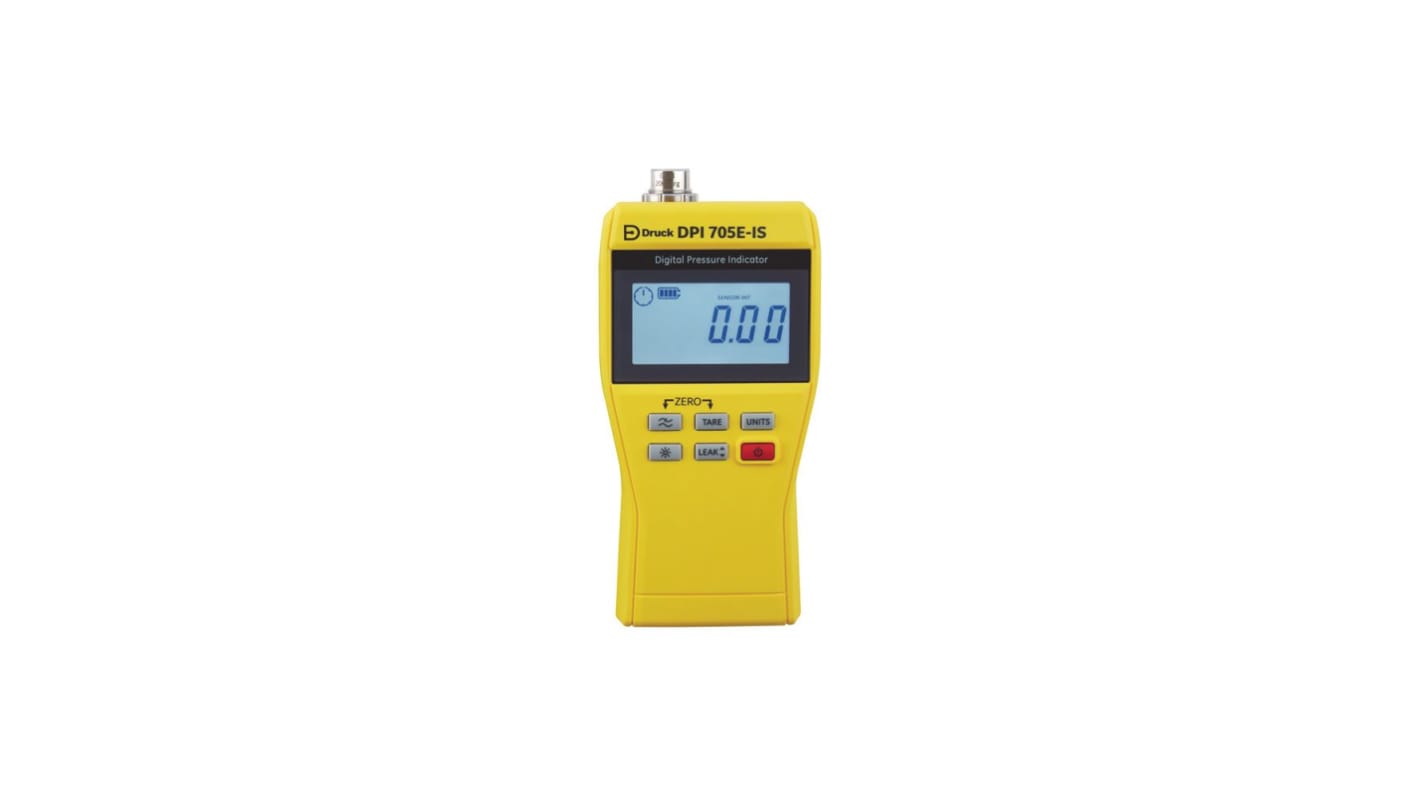

Druck DPI705E Absolute Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

RS Stock No.:: 261-4567
Mfr. Part No.:: DPI705EIS-2-10A-P1-H1-U0-OP0
Brand:: Druck

Druck DPI705E Absolute Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

Subtotal (1 unit)*

£870.01

(exc. VAT)

£1,044.01

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) shipping from 21 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£870.01

*price indicative

RS Stock No.:: 261-4567
Mfr. Part No.:: DPI705EIS-2-10A-P1-H1-U0-OP0
Brand:: Druck

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Product Type	Manometer
	Accuracy	+/-0.075% FS
	Number of Pressure Ports	1
	Maximum Pressure Measurement	7bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	Absolute
	Leak Testing	Yes
	Model Number	DPI705E
	Data Logging	No
	Intrinsically Safe	Yes
	IP Rating	IP54
	Battery Type	AA
	Maximum Overpressure	1400bar
	Minimum Operating Temperature	-10°C
	Display Type	LCD Backlight
	Maximum Operating Temperature	50°C
	Standards/Approvals	No
	Length	200mm
	Width	95 mm
	Height	43mm
	Hazardous Area Certification	IECEx/ATEX
	Weight	563g
	Calibrated	RSCAL

	Select all
	Brand Druck
	Product Type Manometer
	Accuracy +/-0.075% FS
	Number of Pressure Ports 1
	Maximum Pressure Measurement 7bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type Absolute
	Leak Testing Yes
	Model Number DPI705E
	Data Logging No
	Intrinsically Safe Yes
	IP Rating IP54
	Battery Type AA
	Maximum Overpressure 1400bar
	Minimum Operating Temperature -10°C
	Display Type LCD Backlight
	Maximum Operating Temperature 50°C
	Standards/Approvals No
	Length 200mm
	Width 95 mm
	Height 43mm
	Hazardous Area Certification IECEx/ATEX
	Weight 563g
	Calibrated RSCAL

Datasheet - DPI705EIS-2-10A-P1-H1-U0-OP0

COO (Country of Origin):: GB

Druck Manometer, 7 bar Maximum Pressure Measurement, 1 Pressure Port - DPI705EIS-2-10A-P1-H1-U0-OP0

This handheld pressure indicator from the Druck is designed for tough and rugged environments requiring accurate and reliable pressure measurements. With a range of pressure ports and high-contrast display, this manometer is reliable for routine maintenance and troubleshooting.

Features & Benefits

• Provides 41 pressure ranges from ±25 mbar to 1,400 bar

• Total 1 year uncertainty down to 0.05% full scale over a wide temperature range

• Rugged, handheld design with backlit high-contrast display

• Optional remote plug and play pressure and Resistance Temperature Detector sensors

Applications

• Ideal for single-handed operation in maintenance and trouble-shooting settings

• Can be used for calibration solutions with optional pneumatic or hydraulic hand pumps

Can it provide a wide range of pressure measurements?

Yes, the Druck DPI 705E Series offers a total of 41 pressure ranges to choose from.

Is it suitable for hazardous areas?

Yes, there is an Intrinsically safe version available for hazardous environments.

Can it be used with remote pressure sensors?

Yes, the manometer is compatible with optional remote plug and play pressure sensors for added flexibility.
