Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 10 bar
- RS Stock No.:
- 201-3038
- Mfr. Part No.:
- DPI705EIS-1-11G-P1-H1-U0-OP0
- Brand:
- Druck
Subtotal (1 unit)*
£883.85
(exc. VAT)
£1,060.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £883.85 |
*price indicative
- RS Stock No.:
- 201-3038
- Mfr. Part No.:
- DPI705EIS-1-11G-P1-H1-U0-OP0
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Product Type | Manometer | |
| Accuracy | ±0.1 % | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 10bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Port Type | Gauge | |
| Leak Testing | Yes | |
| Model Number | DPI705E | |
| Data Logging | No | |
| Intrinsically Safe | Yes | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Overpressure | 1400bar | |
| Battery Type | AA | |
| Maximum Operating Temperature | 50°C | |
| Display Type | LCD Backlight | |
| Length | 200mm | |
| Width | 95 mm | |
| Standards/Approvals | CE, RCM | |
| Height | 43mm | |
| Hazardous Area Certification | ATEX | |
| Weight | 563g | |
| Calibrated | UKAS | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Product Type Manometer | ||
Accuracy ±0.1 % | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 10bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Gauge | ||
Leak Testing Yes | ||
Model Number DPI705E | ||
Data Logging No | ||
Intrinsically Safe Yes | ||
IP Rating IP54 | ||
Minimum Operating Temperature -10°C | ||
Maximum Overpressure 1400bar | ||
Battery Type AA | ||
Maximum Operating Temperature 50°C | ||
Display Type LCD Backlight | ||
Length 200mm | ||
Width 95 mm | ||
Standards/Approvals CE, RCM | ||
Height 43mm | ||
Hazardous Area Certification ATEX | ||
Weight 563g | ||
Calibrated UKAS | ||
- COO (Country of Origin):
- GB

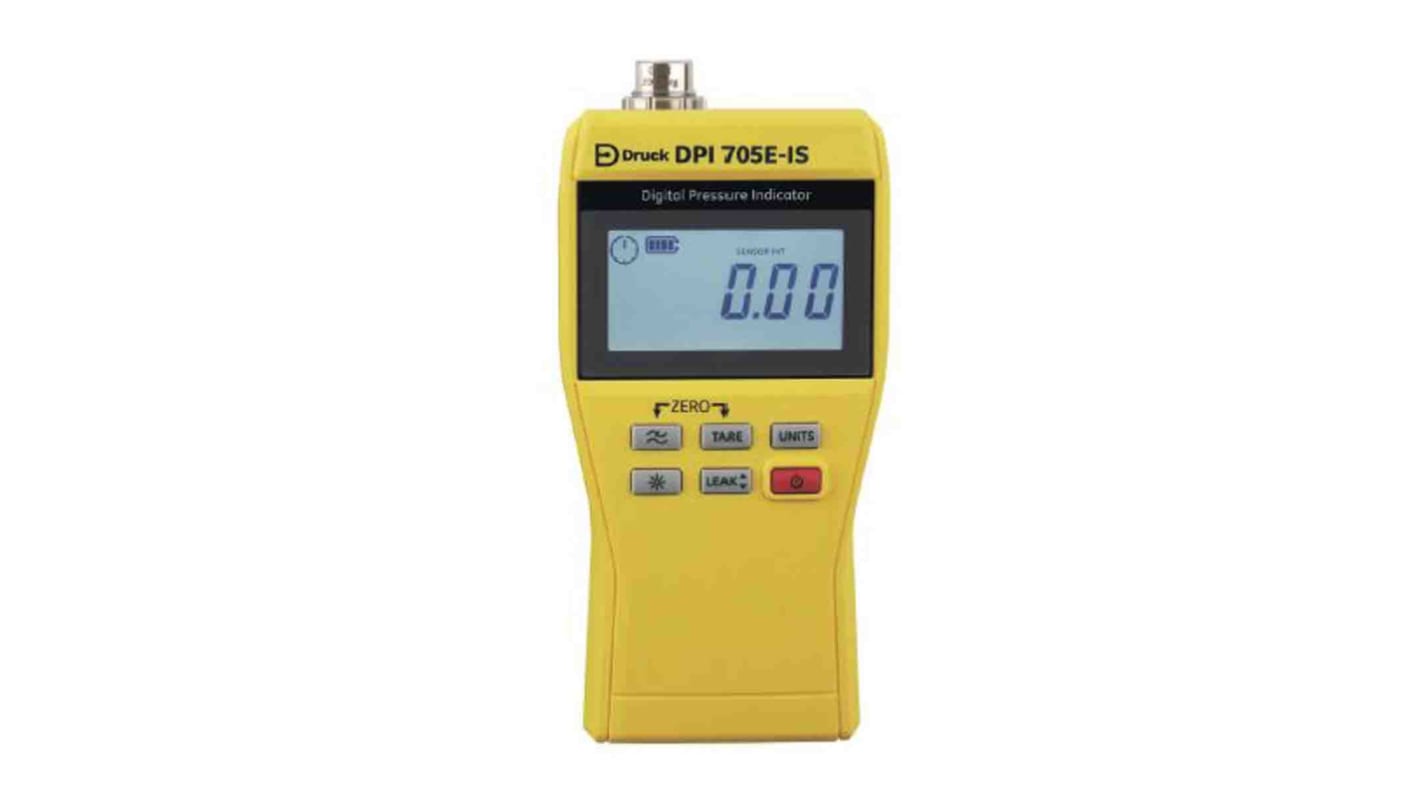

Druck Manometer, AA Battery, Backlit LCD Display - DPI705EIS-1-11G-P1-H1-U0-OP0
This handheld pressure indicator is designed for accurate and reliable pressure and optional temperature measurements. With a rugged design and high-contrast display, it is suitable for single-handed operation in various industrial settings.
Features & Benefits
• Offers 41 pressure ranges, from ±25 mbar to 1,400 bar, providing precise measurements
• High accuracy of ±0.1% full scale over a temperature range of -10°C to +50°C for reliable readings
• Leak testing, tare, maximum/minimum, and filter functions for routine maintenance
• Hazardous area (intrinsically safe) version available, ensuring safety in sensitive environments
• Optional remote plug and play sensors for added flexibility and adaptability
Applications
• Ideal for routine maintenance and troubleshooting in industrial settings
• Suitable for pressure measurements in hazardous areas due to its ATEX certification
• Used for leak testing and pressure measurements in various industrial systems
Can it be used in hazardous areas?
Yes, it is certified for use in hazardous areas and is intrinsically safe.
Will it provide accurate readings in extreme temperatures?
It offers high accuracy across a range of temperatures, from -10°C to +50°C.
Is the DPI705E suitable for leak testing applications?
Yes, the DPI705E comes equipped with leak testing capabilities for system diagnostics.
Note
Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
