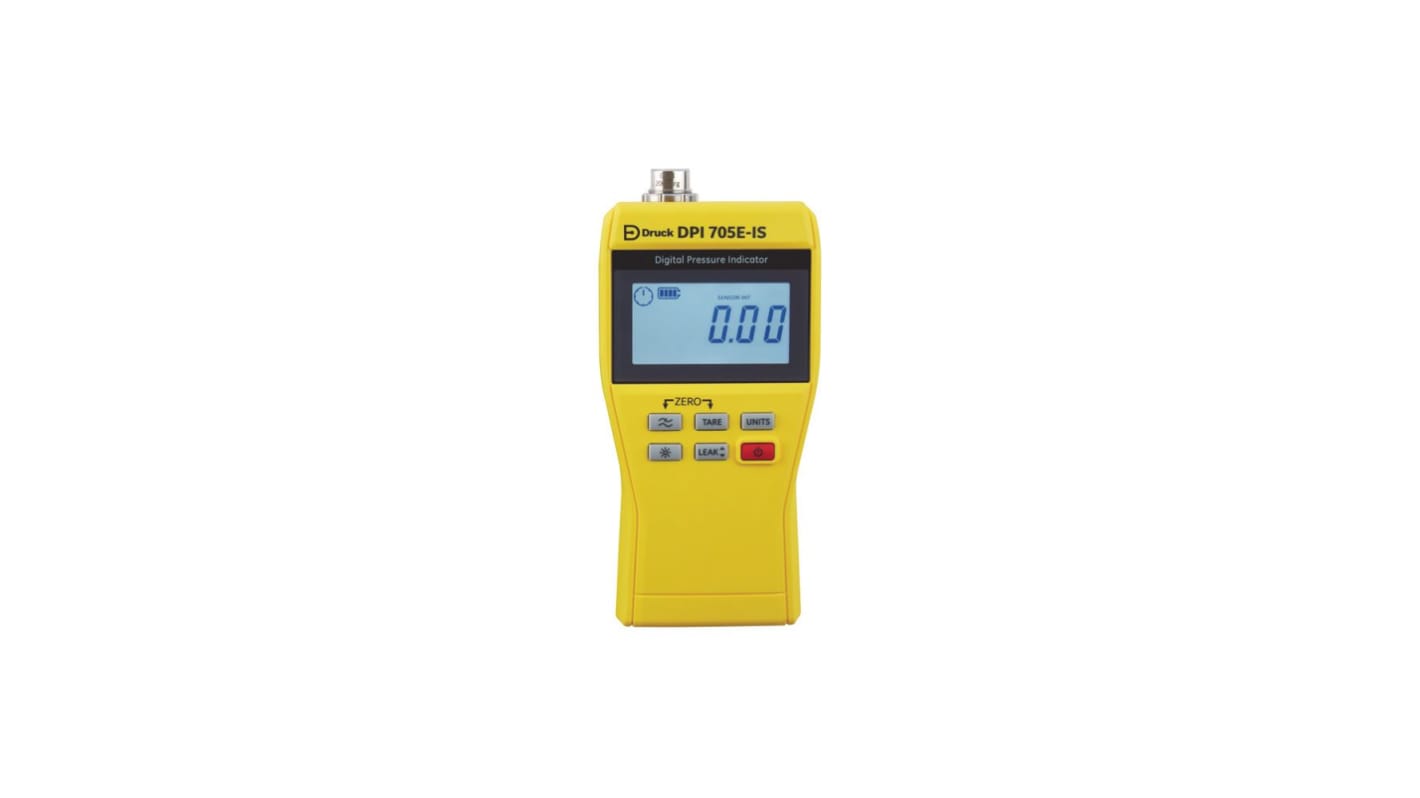

Druck DPI705EIS Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

RS Stock No.:: 261-4587
Mfr. Part No.:: DPI705EIS-2-10G-P1-H1-U0-OP0
Brand:: Druck

Druck DPI705EIS Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

Subtotal (1 unit)*

£870.01

(exc. VAT)

£1,044.01

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£870.01

*price indicative

RS Stock No.:: 261-4587
Mfr. Part No.:: DPI705EIS-2-10G-P1-H1-U0-OP0
Brand:: Druck

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Product Type	Manometer
	Accuracy	+/-0.05% FS
	Number of Pressure Ports	1
	Maximum Pressure Measurement	7bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	Gauge
	Leak Testing	Yes
	Data Logging	No
	Model Number	DPI705EIS
	Intrinsically Safe	Yes
	IP Rating	IP54
	Minimum Operating Temperature	-10°C
	Maximum Overpressure	1400bar
	Battery Type	AA
	Maximum Operating Temperature	50°C
	Display Type	LCD Backlight
	Standards/Approvals	No
	Height	43mm
	Length	200mm
	Width	95 mm
	Hazardous Area Certification	IECEx/ATEX
	Weight	563g
	Calibrated	RSCAL

	Select all
	Brand Druck
	Product Type Manometer
	Accuracy +/-0.05% FS
	Number of Pressure Ports 1
	Maximum Pressure Measurement 7bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type Gauge
	Leak Testing Yes
	Data Logging No
	Model Number DPI705EIS
	Intrinsically Safe Yes
	IP Rating IP54
	Minimum Operating Temperature -10°C
	Maximum Overpressure 1400bar
	Battery Type AA
	Maximum Operating Temperature 50°C
	Display Type LCD Backlight
	Standards/Approvals No
	Height 43mm
	Length 200mm
	Width 95 mm
	Hazardous Area Certification IECEx/ATEX
	Weight 563g
	Calibrated RSCAL

Datasheet - DPI705EIS-2-10G-P1-H1-U0-OP0

COO (Country of Origin):: GB

Druck Manometer, 7 bar Maximum Pressure Measurement, 1 Pressure Port - DPI705EIS-2-10G-P1-H1-U0-OP0

This handheld pressure indicator from the Druck manometer is a reliable and accurate tool designed for industrial use. Offering precise pressure measurement capabilities, it combines rugged design with essential features for routine maintenance and troubleshooting.

Features & Benefits

• 41 pressure ranges from ±25 mbar to 1,400 bar

• Accuracy down to +/-0.05% FS over -10°C to +50°C

• Backlit high-contrast LCD display for easy reading

• Leak test, maximum/minimum capture, and filter functions for enhanced performance

• Long battery life for extended usability

Applications

• Routine maintenance and system troubleshooting in industrial settings

• Pressure measurement in hazardous areas

• Leak testing and temperature recordings

• Calibration and accuracy verification

Can it be used in hazardous areas?

Yes, the Druck DPI705EIS manometer is suitable for hazardous area applications.

Will it perform leak tests effectively?

It includes a user-defined leak test function with a live countdown timer for accurate results.

Is it compatible with remote pressure sensors?

Yes, the PM700E external remote pressure sensors can be easily connected to the DPI705EIS for added flexibility and functionality.
