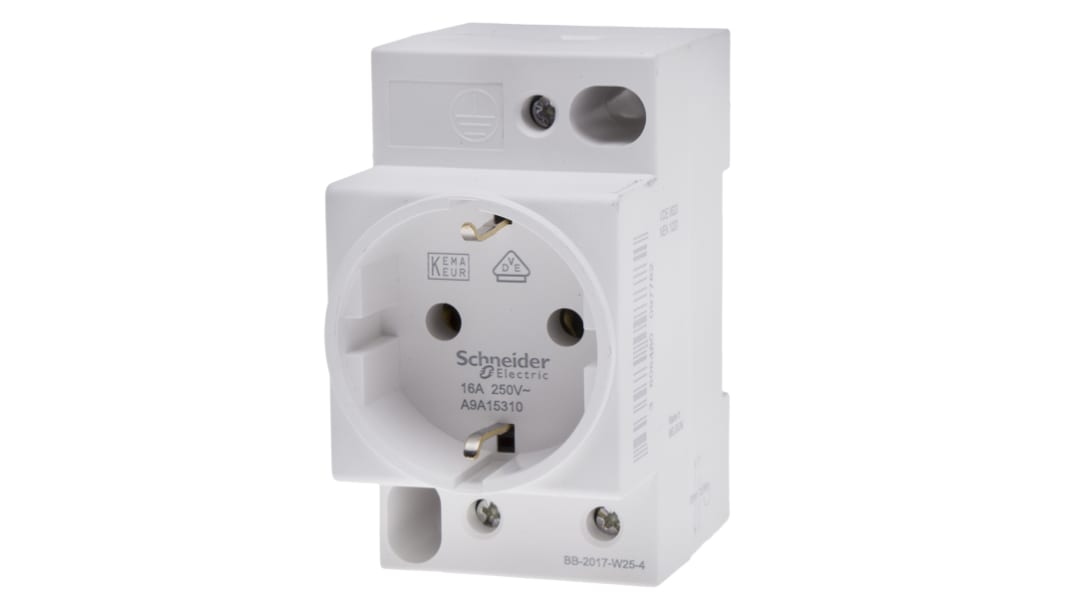

Schneider Electric Germany Mains Connector White, 16A, DIN Rail, 250V, Tunnel

View all Mains Plugs

Subtotal (1 unit)*

£25.86

(exc. VAT)

£31.03

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 20 unit(s) shipping from 04 May 2026
  • Plus 101 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£25.86

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
776-3685
Mfr. Part No.:
A9A15310
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Mains Connector

Country

Germany

Connector Type

Type F

Current

16A

Orientation

Straight

Mount Type

DIN Rail

Connector Gender

Female

Mains Socket Type

Type F

Voltage

250V

Pole Format

2+E

Colour

White

Termination Type

Tunnel

Contact Gender

Female

Series

Acti9 Control

Standards/Approvals

VDE 0620, UNE 20315-1-1

Better World Product

Yes

Minimum Cable Diameter

1.1mm

Maximum Cable Diameter

3.6mm

Schneider Electric Acti9 Series Mains Connector, 16A Current, 250V Voltage - A9A15310


This mains connector is a DIN rail mounted Type F socket designed for fixed installations in industrial and electrical control environments. It provides a compact, modular outlet for 2-pole Plus earth supply, intended for use on symmetrical DIN rails where a secure, straight-orientation connector is required.

Features & Benefits


• Rated for 16A to support moderate-load circuits
• Operates at 250V AC for standard mains systems
• Tunnel terminals accept 1 to 6mm² flexible conductors
• Tunnel terminals accept 1 to 10mm² rigid conductors
• Wire stripping length 13mm for consistent termination
• IP20 degree of protection suitable for enclosed panels

Applications


• Suitable for distribution modules in control panels
• Ideal for machine-room device power feeds
• used with automation racks requiring DIN rail sockets
• Can be used for retrofit modular enclosures in industry

What mounting method does it use for panel installation?


It mounts on a symmetrical DIN rail, designed for fixed placement in modular assemblies and switchgear cabinets.

Which Terminal tightening specification should installers follow?


Terminals require a tightening torque of 1.2N·m to ensure secure electrical contact without damaging conductors.

What environmental conditions can it withstand during operation?


It is rated to operate in ambient temperatures from -25 to 70°C and tolerates relative humidity up to 95% at 55°C.

How does the product handle mechanical impact and enclosure protection?


The device has IK03 mechanical resistance and IP20 protection for the connector, with IP40 applicable when mounted within a modular enclosure.
