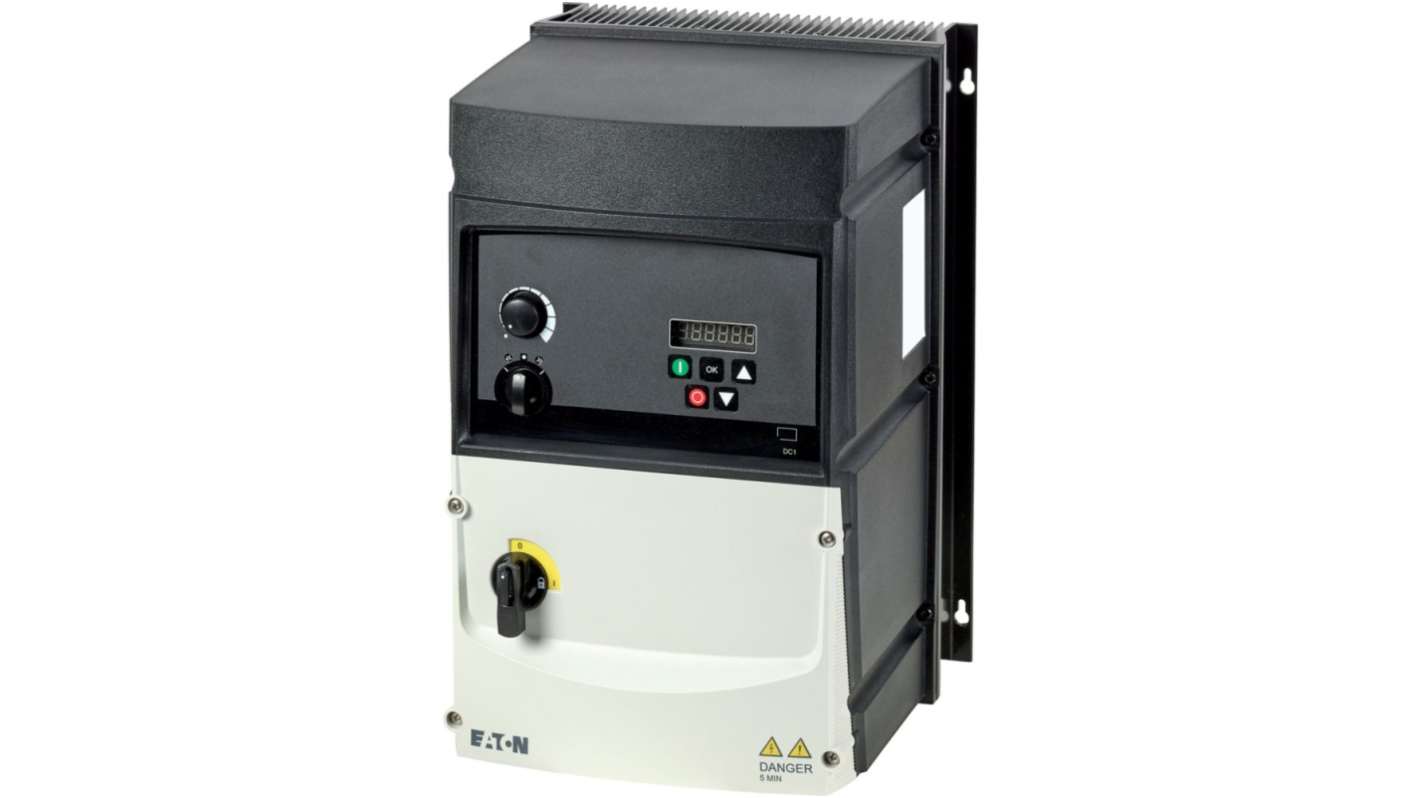

Eaton Variable Speed Drive, 22 kW, 3 Phase, VFD DC1 Series 480 V ac 46 A
- RS Stock No.:
- 251-044
- Mfr. Part No.:
- 199450 DC1-34046FB-A6SOE1
- Brand:
- Eaton
Subtotal (1 unit)*
£3,075.83
(exc. VAT)
£3,691.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,075.83 |
*price indicative
- RS Stock No.:
- 251-044
- Mfr. Part No.:
- 199450 DC1-34046FB-A6SOE1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 22kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 46A | |
| Series | VFD DC1 | |
| IP Rating | IP66 | |
| Overall Length | 360mm | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 380V ac | |
| Maximum Supply Voltage | 480V ac | |
| Minimum Operating Temperature | -40°C | |
| Compatible Motor Type | AC Motor | |
| Drive Type | Variable Frequency Drive (VFD) | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE CSA-C22.2 No. 14 UL Category Control No.: NMMS, ISO 9001 CUL IEC/EN 61800-2 UL 508C IEC/EN61800-5, NMMS7 UkrSEPRO UL File No.: E172143 CE EAC IEC/EN 61800-3 RoHS | |
| Overall Width | 240mm | |
| Overall Depth | 275 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 22kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 46A | ||
Series VFD DC1 | ||
IP Rating IP66 | ||
Overall Length 360mm | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 380V ac | ||
Maximum Supply Voltage 480V ac | ||
Minimum Operating Temperature -40°C | ||
Compatible Motor Type AC Motor | ||
Drive Type Variable Frequency Drive (VFD) | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE CSA-C22.2 No. 14 UL Category Control No.: NMMS, ISO 9001 CUL IEC/EN 61800-2 UL 508C IEC/EN61800-5, NMMS7 UkrSEPRO UL File No.: E172143 CE EAC IEC/EN 61800-3 RoHS | ||
Overall Width 240mm | ||
Overall Depth 275 mm | ||
- COO (Country of Origin):
- GB
The Eaton DC1 Variable Frequency Drive is a 400 V AC, 3-phase unite, 46 A, 22 kW, is designed for demanding industrial motor control applications. It features an IP66/NEMA 4X rating, providing superior protection against dust and water, making it suitable for harsh and outdoor environments. The integrated radio interference suppression filter ensures minimal electromagnetic disturbance, while the brake chopper allows for efficient braking and energy recovery. The 7-digit display assembly offers clear, real-time monitoring of critical drive parameters.
Finger and back of hand proof
Protection against direct contact
PCB protection and UV resistance
