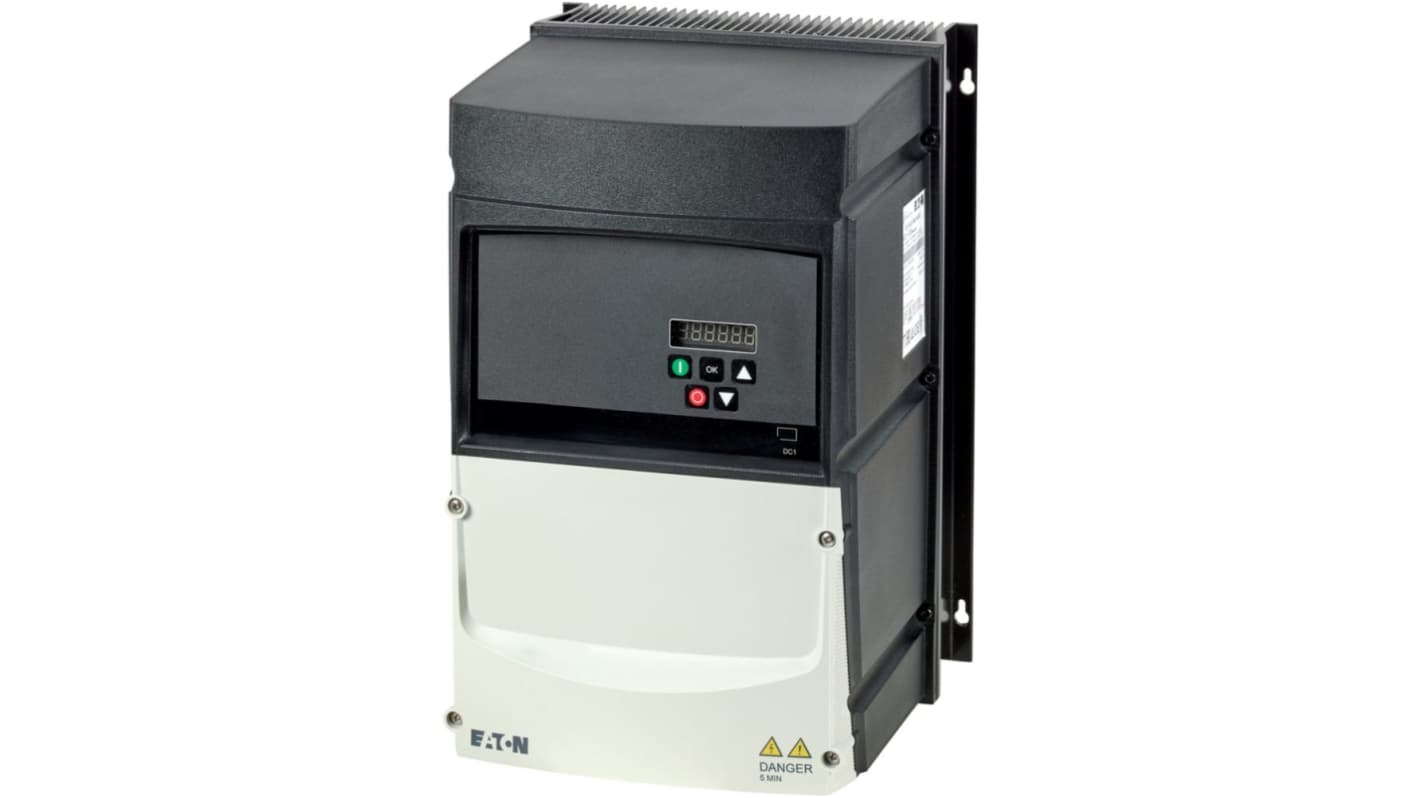

Eaton Variable Speed Drive, 11 kW, 3 Phase, VFD DC1 Series 240 V ac 46 A
- RS Stock No.:
- 251-035
- Mfr. Part No.:
- 199427 DC1-32046FB-A66OE1
- Brand:
- Eaton
Subtotal (1 unit)*
£2,829.91
(exc. VAT)
£3,395.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,829.91 |
*price indicative
- RS Stock No.:
- 251-035
- Mfr. Part No.:
- 199427 DC1-32046FB-A66OE1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 11kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 46A | |
| Series | VFD DC1 | |
| IP Rating | IP66 | |
| Overall Length | 275mm | |
| Minimum Supply Voltage | 200V ac | |
| Output Frequency | 500Hz | |
| Maximum Supply Voltage | 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Compatible Motor Type | AC Motor | |
| Maximum Operating Temperature | 40°C | |
| Overall Width | 360mm | |
| Standards/Approvals | ISO 9001, RoHS, UL | |
| Overall Depth | 240mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 11kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 46A | ||
Series VFD DC1 | ||
IP Rating IP66 | ||
Overall Length 275mm | ||
Minimum Supply Voltage 200V ac | ||
Output Frequency 500Hz | ||
Maximum Supply Voltage 240V ac | ||
Minimum Operating Temperature -20°C | ||
Compatible Motor Type AC Motor | ||
Maximum Operating Temperature 40°C | ||
Overall Width 360mm | ||
Standards/Approvals ISO 9001, RoHS, UL | ||
Overall Depth 240mm | ||
- COO (Country of Origin):
- GB
The Eaton variable frequency drive is engineered for optimal performance, delivering robust control for three-phase AC motors in demanding environments. With an impressive power rating of 11 kW and a maximum current capacity of 46 A, it ensures reliability and efficiency in diverse applications. The unit is housed in a durable casing with an IP66/NEMA 4X rating, offering exceptional protection against moisture and dust. Integrating advanced features including a radio interference suppression filter and a brake chopper, this drive enhances operational capability while maintaining high safety standards. Its versatile connectivity options, including Modbus RTU and CANopen, facilitate seamless integration into various automation systems, making it an indispensable asset for industrial operations. The commitment to quality is reflected in certifications such as RoHS and ISO 9001, highlighting its suitability for both industrial and commercial uses.
Designed for three-phase 230 V AC applications, ensuring versatile operational compatibility
Features a seven-digit display assembly for intuitive monitoring and control
Includes additional PCB protection to increase longevity and reliability
Provides operational stability with adjustable switching frequencies for tailored performance
Supports parameterisation through mobile apps and keypads, simplifying setup and management
Boasts a lightweight design at 9.5 kg for easier installation
Capable of 4-quadrant operation, accommodating a wide range of motor control requirements
Offers environmental resilience with a wide temperature operational range from -20 °C to 40 °C
