Eaton Variable Speed Drive, 0.75 kW, 1 Phase, VFD DC1 Series 115V 4.3 A
- RS Stock No.:
- 251-331
- Mfr. Part No.:
- 199395 DC1-1D4D3NN-A66OE1
- Brand:
- Eaton
Subtotal (1 unit)*
£458.78
(exc. VAT)
£550.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £458.78 |
*price indicative
- RS Stock No.:
- 251-331
- Mfr. Part No.:
- 199395 DC1-1D4D3NN-A66OE1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 0.75kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 1 | |
| Maximum Output Current | 4.3A | |
| Series | VFD DC1 | |
| Mount Type | Vertical | |
| Overall Length | 232mm | |
| IP Rating | IP66 | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 110V | |
| Maximum Supply Voltage | 115V | |
| Minimum Operating Temperature | -20°C | |
| Drive Type | Variable Frequency Drive (VFD) | |
| Maximum Operating Temperature | 40°C | |
| Overall Width | 161mm | |
| Standards/Approvals | CE, ISO 9001, RoHS, UL | |
| Overall Depth | 162mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 0.75kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 1 | ||
Maximum Output Current 4.3A | ||
Series VFD DC1 | ||
Mount Type Vertical | ||
Overall Length 232mm | ||
IP Rating IP66 | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 110V | ||
Maximum Supply Voltage 115V | ||
Minimum Operating Temperature -20°C | ||
Drive Type Variable Frequency Drive (VFD) | ||
Maximum Operating Temperature 40°C | ||
Overall Width 161mm | ||
Standards/Approvals CE, ISO 9001, RoHS, UL | ||
Overall Depth 162mm | ||
- COO (Country of Origin):
- GB

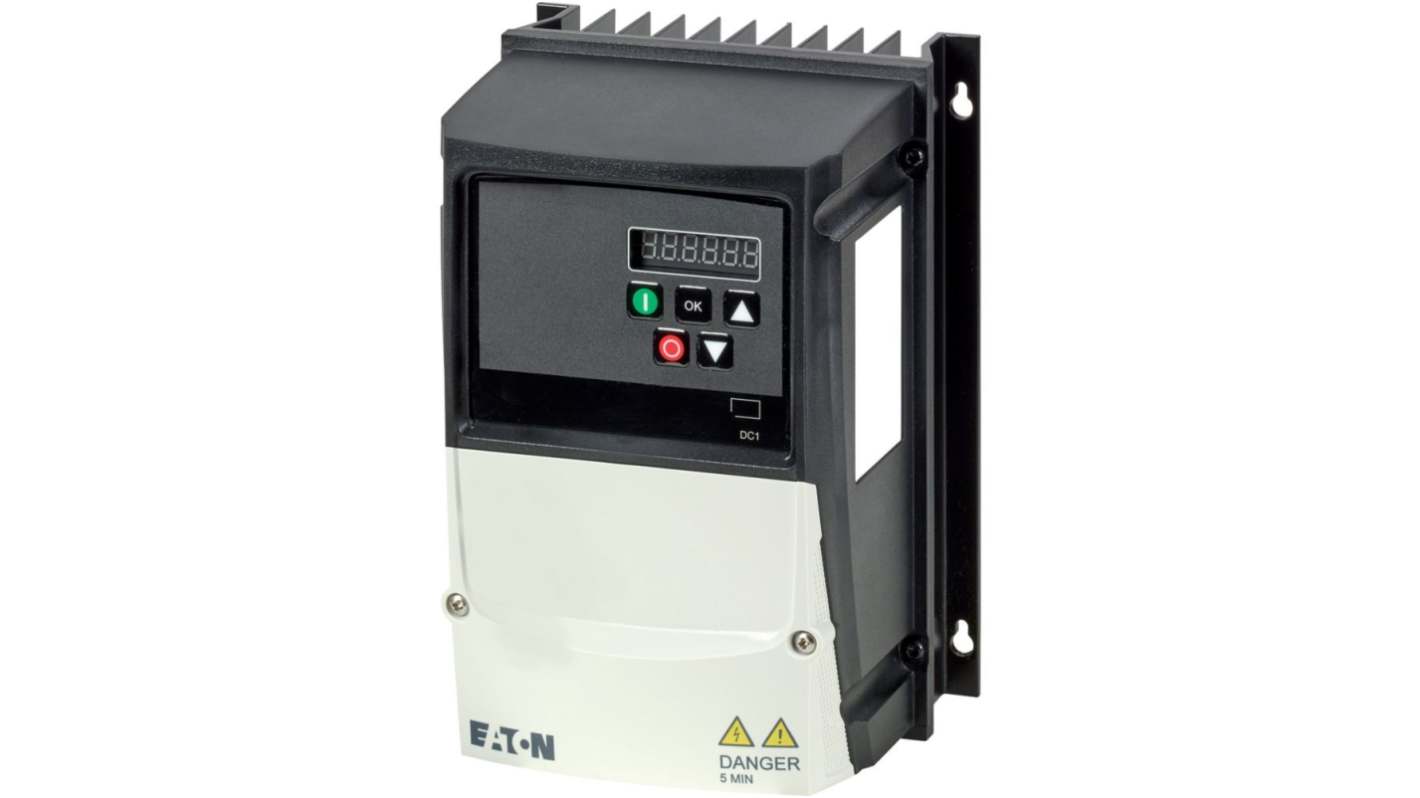

The Eaton DC1 Variable Frequency Drive is designed for 115 V AC, single-phase operation with a 4.3 A current rating and 0.75 kW power output. It features an IP66/NEMA 4X enclosure, offering excellent protection against dust and water. The drive includes a 7-digit display assembly for easy monitoring.
Finger and back of hand proof
Protection against direct contact
PCB protection and UV resistance
