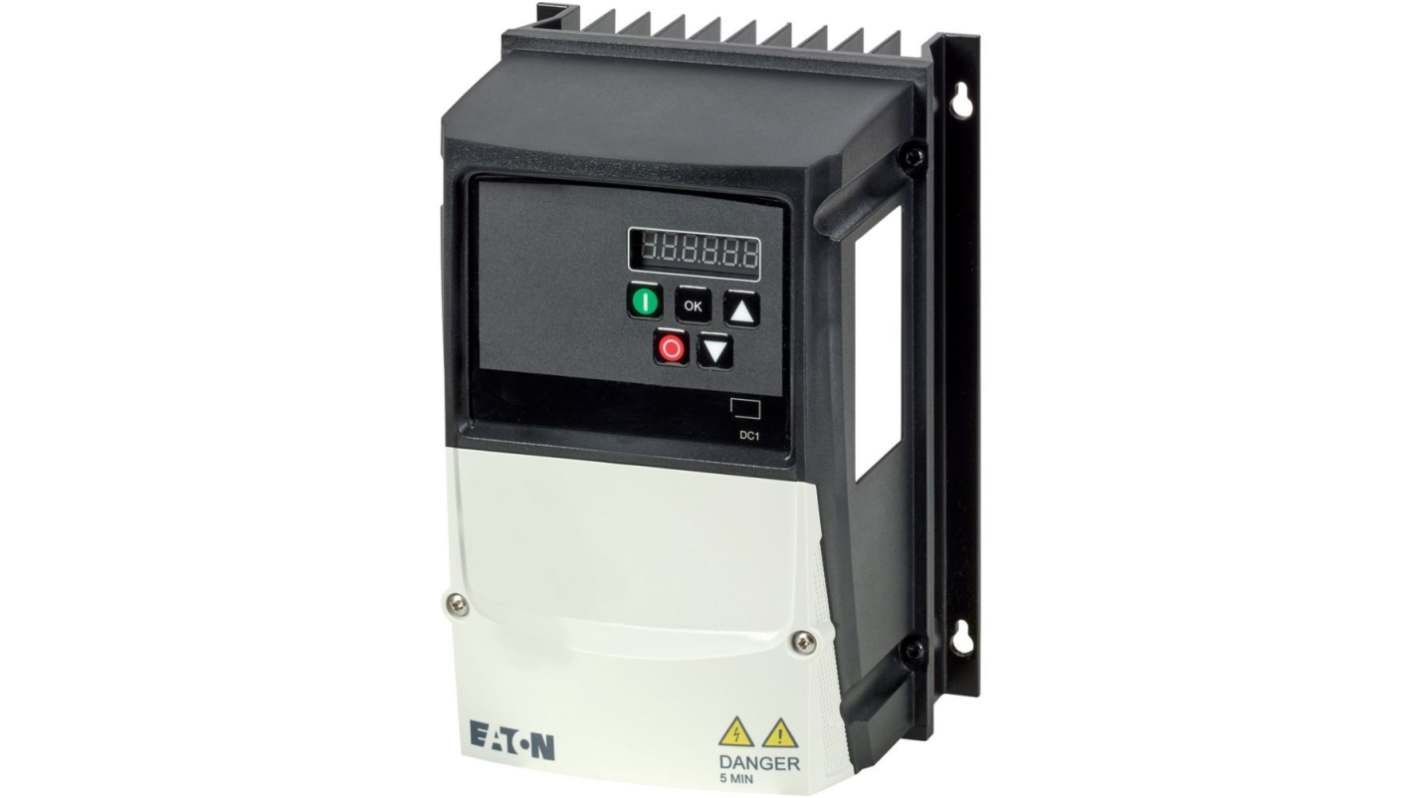

Eaton Variable Speed Drive, 0.75 kW, 3 Phase, VFD DC1 Series 480V ac 2.2 A
- RS Stock No.:
- 251-628
- Mfr. Part No.:
- 199429 DC1-342D2FN-A66OE1
- Brand:
- Eaton
Subtotal (1 unit)*
£589.03
(exc. VAT)
£706.84
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £589.03 |
*price indicative
- RS Stock No.:
- 251-628
- Mfr. Part No.:
- 199429 DC1-342D2FN-A66OE1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 0.75kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 2.2A | |
| Series | VFD DC1 | |
| IP Rating | IP66 | |
| Overall Length | 232mm | |
| Minimum Supply Voltage | 380V ac | |
| Output Frequency | 500Hz | |
| Maximum Supply Voltage | 480V ac | |
| Compatible Motor Type | AC Motor | |
| Minimum Operating Temperature | -20°C | |
| Drive Type | Variable Frequency Drive (VFD) | |
| Maximum Operating Temperature | 40°C | |
| Overall Width | 161mm | |
| Standards/Approvals | UL, RoHS, IEC/EN61800, CE | |
| Overall Depth | 162mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 0.75kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 2.2A | ||
Series VFD DC1 | ||
IP Rating IP66 | ||
Overall Length 232mm | ||
Minimum Supply Voltage 380V ac | ||
Output Frequency 500Hz | ||
Maximum Supply Voltage 480V ac | ||
Compatible Motor Type AC Motor | ||
Minimum Operating Temperature -20°C | ||
Drive Type Variable Frequency Drive (VFD) | ||
Maximum Operating Temperature 40°C | ||
Overall Width 161mm | ||
Standards/Approvals UL, RoHS, IEC/EN61800, CE | ||
Overall Depth 162mm | ||
- COO (Country of Origin):
- GB
The Eaton variable frequency drive is engineered to deliver exceptional performance in demanding environments. This 400 V AC, 3-phase drive is designed to efficiently control motor speed and torque, offering enhanced operational flexibility and energy savings. Built with an IP66/NEMA 4X rating, it stands resilient against dust and moisture, making it suitable for harsh industrial applications. With a robust 2.2 A current capability and supplemented by features such as radio interference suppression and UV resistance, this drive ensures reliable operation in diverse conditions. The user-friendly 7-digit display facilitates easy parameter monitoring and adjustments, empowering users for optimal control. Whether you're aiming to enhance productivity or streamline energy consumption, this variable frequency drive stands as a premium choice for your motor control needs.
Designed for 400 V AC operation to maximise compatibility with standard industrial applications
Incorporates additional PCB protection for enhanced durability in challenging environments
Features a user-friendly interface that simplifies parameter adjustments and monitoring
Provides robust radio interference suppression, ensuring stable communication and performance
Complies with stringent international safety and environmental standards, affirming its reliability
Allows for flexible mounting positions due to its versatile design
Optimises motor performance through advanced control technologies like sensorless vector control
Includes multiple communication options including Modbus RTU and CANopen, enhancing integration capabilities
