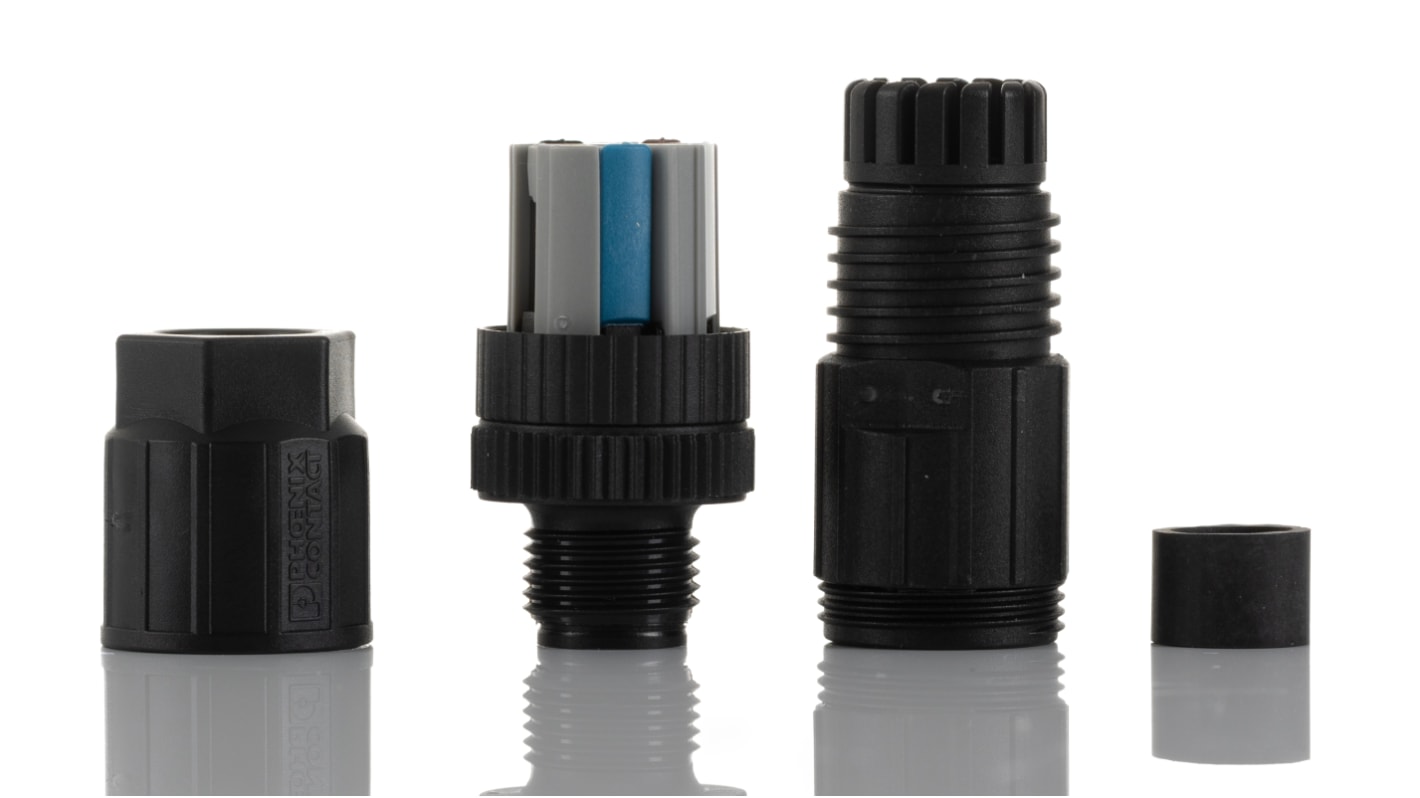

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, SACC Series
- RS Stock No.:
- 154-8146
- Mfr. Part No.:
- 1424691
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£11.65
(exc. VAT)
£13.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 63 unit(s) ready to ship from another location
- Plus 52 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £11.65 |
5 - 24 | £11.06 |
25 - 49 | £10.48 |
50 + | £9.88 |
*price indicative
- RS Stock No.:
- 154-8146
- Mfr. Part No.:
- 1424691
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Push In, Screw | |
IP Rating | IP65, IP67 | |
Current Rating | 4.0A | |
Series | SACC | |
Body Orientation | Straight | |
Voltage Rating | 250.0 V | |
Coding | A | |
Shell Size | 15 | |
Mating Type | A Coded | |
Housing Material | Polymer | |
Pole Format | 4P | |
Contact Plating | Nickel over Gold | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Push In, Screw | ||
IP Rating IP65, IP67 | ||
Current Rating 4.0A | ||
Series SACC | ||
Body Orientation Straight | ||
Voltage Rating 250.0 V | ||
Coding A | ||
Shell Size 15 | ||
Mating Type A Coded | ||
Housing Material Polymer | ||
Pole Format 4P | ||
Contact Plating Nickel over Gold | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Copper | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, Straight Body Orientation, 4A Current Rating - SACC-M12MS-4PL - 1424691
Looking for a dependable device to deliver signals in demanding settings? This circular connector from Phoenix Contact is an all-round solution. The assembly's powered by 250V DC, so it's an ideal choice for low-power industrial automation applications. It won't break a sweat in the heat of challenging environments, thanks to a broad operating temperature range between -40°C and +85°C. Polymer housing offers resistance to mechanical stress and corrosion, so you can be sure of long-term performance.
You'll be hard-pressed to find an easier installation method than the push-in connection style, which achieves more than 100 mating cycles for longevity. This plug's A-coded mating type is widely compatible so slots in easily with commonly used kit. An IP67 rating means it's completely dust-tight and withstands immersion in 1m of water for 30 minutes.
You'll be hard-pressed to find an easier installation method than the push-in connection style, which achieves more than 100 mating cycles for longevity. This plug's A-coded mating type is widely compatible so slots in easily with commonly used kit. An IP67 rating means it's completely dust-tight and withstands immersion in 1m of water for 30 minutes.
Features & Benefits
• Copper contacts reduce resistance to make signal transfer fast and efficient
• NBR seals guard against debris, chemicals and other contaminants, for safe use in contaminated settings
• UL 94 V-0 housing ensures that burning subsides within 10 seconds in the event of a fire
• 2.5kV surge protection prevents hazardous over-voltages from damaging your equipment
• Standardised M12 connector thread size for industry-wide use
• NBR seals guard against debris, chemicals and other contaminants, for safe use in contaminated settings
• UL 94 V-0 housing ensures that burning subsides within 10 seconds in the event of a fire
• 2.5kV surge protection prevents hazardous over-voltages from damaging your equipment
• Standardised M12 connector thread size for industry-wide use
