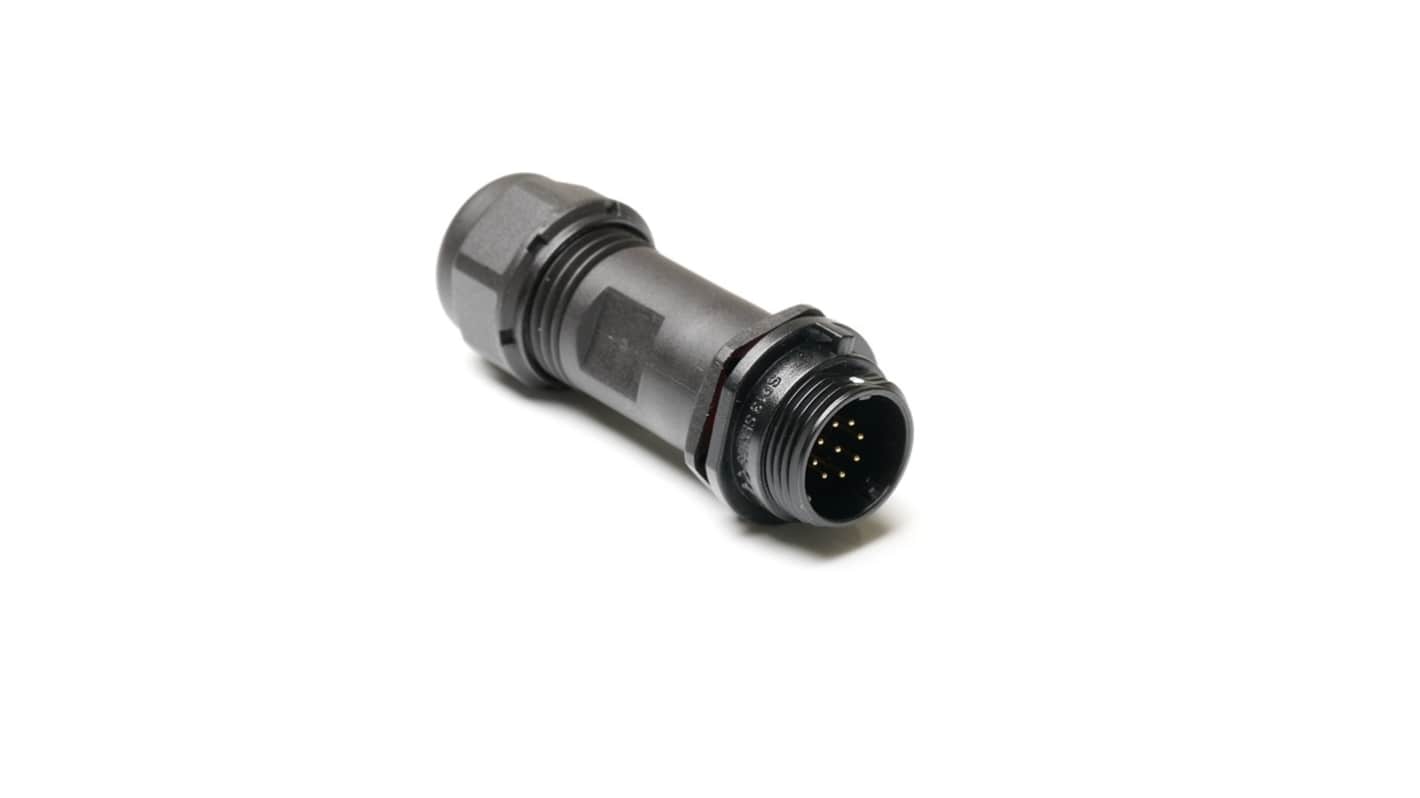

RS PRO Industrial Circular Connectors, 9 Contacts, In-line, SP13 Connector, Socket, Male, IP68
- RS Stock No.:
- 304-645
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.08
(exc. VAT)
£7.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.08 |
10 - 24 | £5.59 |
25 + | £5.05 |
*price indicative
- RS Stock No.:
- 304-645
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 9 | |
Mounting Type | In-line | |
Connector Size | SP13 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 3A | |
Body Orientation | Straight | |
Voltage Rating | 125V ac | |
Mating Type | Threaded Coupling | |
Shell Size | 13mm | |
Housing Material | Nylon 66, PC | |
Pole Format | 9P | |
Strain Relief | No | |
Contact Plating | Gold | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 19.5mm | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 9 | ||
Mounting Type In-line | ||
Connector Size SP13 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 3A | ||
Body Orientation Straight | ||
Voltage Rating 125V ac | ||
Mating Type Threaded Coupling | ||
Shell Size 13mm | ||
Housing Material Nylon 66, PC | ||
Pole Format 9P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 19.5mm | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68, 9 Contacts, Threaded Coupling
This RS PRO Industrial Circular Connector is designed for robust and reliable connections in demanding environments. With an IP68 rating, it offers excellent water resistance, making it ideal for applications where space-saving and durability are crucial. The connector is available in various mounting options, including panel mount, cable mount, and in-line cable mount, with solder and horizontal mount screw termination options.
Features and Benefits
IP68 waterproof design: Ensures high water resistance for outdoor and harsh environments
Threaded coupling: Provides secure and reliable connections
Multiple mounting options: Offers flexibility with panel, cable, and in-line cable mounts
Solder and horizontal mount screw termination: Accommodates different contact arrangements
Compact shell size of 13 mm: Ideal for space-saving applications
Durable housing materials: Made from Nylon 66 and Polycarbonate for enhanced longevity
Gold-plated contacts: Ensures reliable electrical performance
Threaded coupling: Provides secure and reliable connections
Multiple mounting options: Offers flexibility with panel, cable, and in-line cable mounts
Solder and horizontal mount screw termination: Accommodates different contact arrangements
Compact shell size of 13 mm: Ideal for space-saving applications
Durable housing materials: Made from Nylon 66 and Polycarbonate for enhanced longevity
Gold-plated contacts: Ensures reliable electrical performance
Applications
Industrial automation
Outdoor equipment
Marine applications
Aerospace
Outdoor equipment
Marine applications
Aerospace
Additional Information
Complies with IP68 standards for water resistance
Available in a 9-contact configuration with a voltage rating of 125 V AC
Operating temperature range from -40 °C to 85 °C
Available in a 9-contact configuration with a voltage rating of 125 V AC
Operating temperature range from -40 °C to 85 °C
