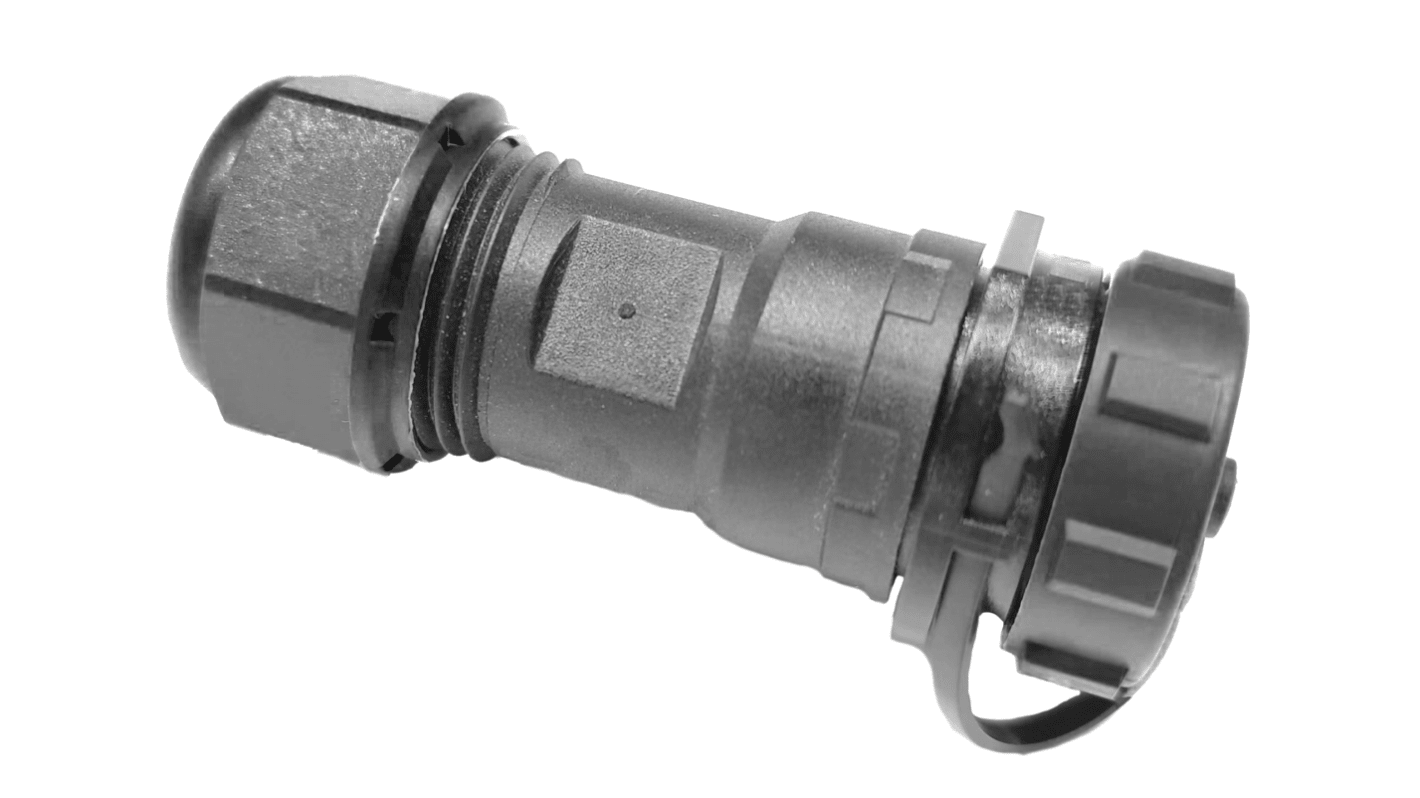

RS PRO Industrial Circular Connectors, 4 Contacts, In-line, SP13 Connector, Socket, Male, IP68
- RS Stock No.:
- 304-640
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.05
(exc. VAT)
£6.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 999,999,989 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.05 |
10 - 24 | £4.65 |
25 + | £4.19 |
*price indicative
- RS Stock No.:
- 304-640
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 4 | |
Mounting Type | In-line | |
Connector Size | SP13 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 5A | |
Body Orientation | Straight | |
Voltage Rating | 200V ac | |
Mating Type | Threaded Coupling | |
Shell Size | 13mm | |
Housing Material | Nylon 66, PC | |
Pole Format | 4P | |
Shielded/Unshielded | Unshielded | |
Strain Relief | No | |
Contact Plating | Gold | |
Outer Diameter | 19.5mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 4 | ||
Mounting Type In-line | ||
Connector Size SP13 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 5A | ||
Body Orientation Straight | ||
Voltage Rating 200V ac | ||
Mating Type Threaded Coupling | ||
Shell Size 13mm | ||
Housing Material Nylon 66, PC | ||
Pole Format 4P | ||
Shielded/Unshielded Unshielded | ||
Strain Relief No | ||
Contact Plating Gold | ||
Outer Diameter 19.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68, 4 Contacts, 200 V ac
The RS PRO Industrial Circular Connector is designed for demanding environments where space-saving and high water resistance are crucial. This connector is ideal for applications requiring a robust and reliable connection, offering versatile mounting options and secure threaded coupling.
Features and Benefits
IP68 waterproof rating: Ensures protection against dust and water, making it suitable for harsh environments
Threaded coupling: Provides a secure and reliable connection, reducing the risk of accidental disconnection
Multiple mounting options: Available in panel mount, cable mount, and in-line cable mount for flexible installation
Solder and horizontal mount screw termination: Offers different contact arrangements for varied application needs
Compact design: Space-saving solution without compromising on performance
Gold contact plating: Enhances conductivity and corrosion resistance for long-lasting performance
Threaded coupling: Provides a secure and reliable connection, reducing the risk of accidental disconnection
Multiple mounting options: Available in panel mount, cable mount, and in-line cable mount for flexible installation
Solder and horizontal mount screw termination: Offers different contact arrangements for varied application needs
Compact design: Space-saving solution without compromising on performance
Gold contact plating: Enhances conductivity and corrosion resistance for long-lasting performance
Applications
Industrial automation
Marine equipment
Outdoor lighting systems
Telecommunications
Marine equipment
Outdoor lighting systems
Telecommunications
Additional Information
Housing Material: Nylon 66, Polycarbonate
Contact Material: Brass
Operating Temperature Range: -40 °C to 85 °C
Connector Size: SP13
Contact Material: Brass
Operating Temperature Range: -40 °C to 85 °C
Connector Size: SP13
