Fuji 2MBI1000VXB-170E-50 Series IGBT Module, 1 kA 1700 V, 6-Pin M272, Screw Mount

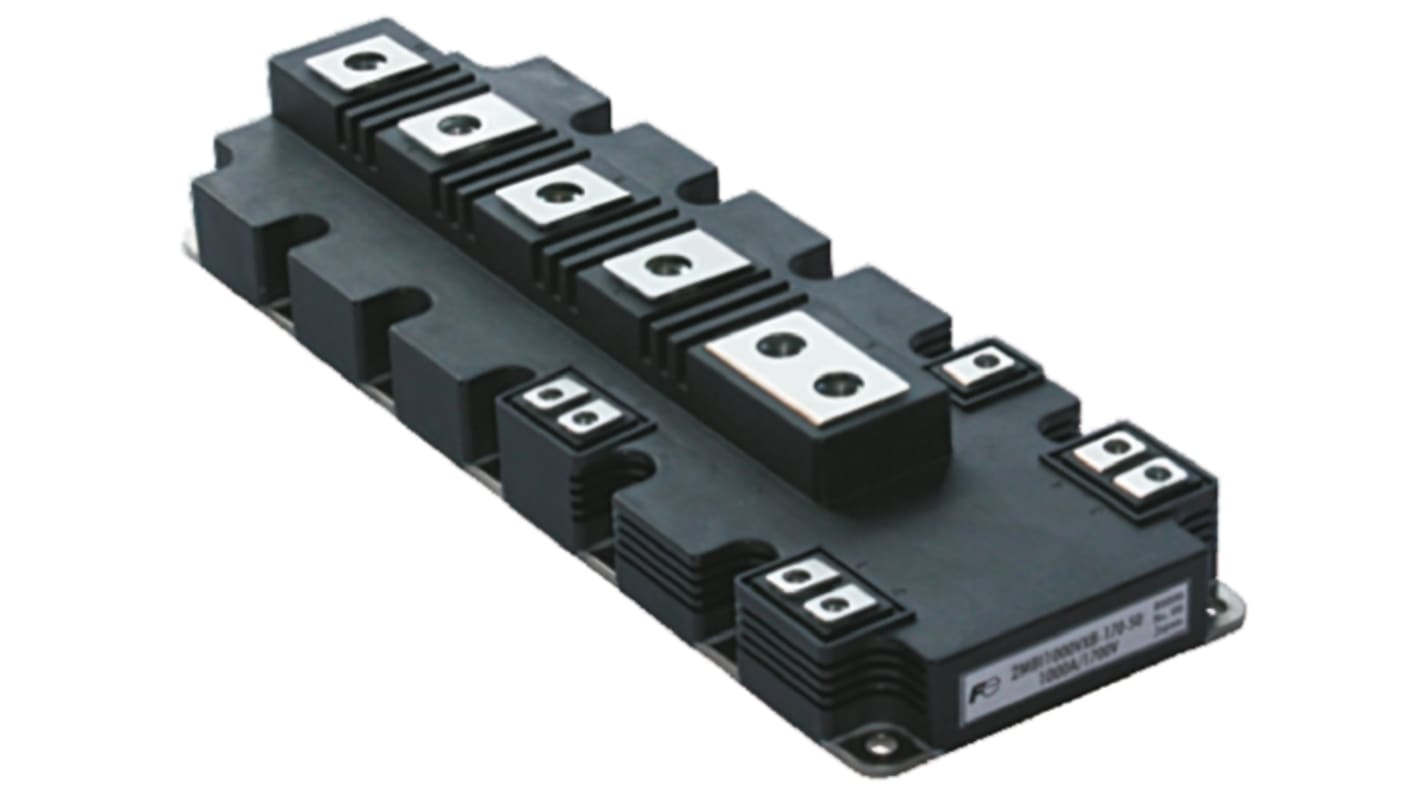

Image representative of range

View all IGBTs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
761-3436
Mfr. Part No.:
2MBI1000VXB-170E-50
Brand:
Fuji
Find similar products by selecting one or more attributes.
Select all

Brand

Fuji

Maximum Continuous Collector Current

1 kA

Maximum Collector Emitter Voltage

1700 V

Maximum Gate Emitter Voltage

±20V

Maximum Power Dissipation

6.25 kW

Package Type

M272

Configuration

Series

Mounting Type

Screw Mount

Channel Type

N

Pin Count

6

Dimensions

250 x 89 x 38mm

IGBT Modules 2-Pack, Fuji Electric


V-Series, 6th Generation Field-Stop
U/U4 Series, 5th Generation Field-Stop
S-Series, 4th Generation NPT


IGBT Discretes & Modules, Fuji Electric


The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
