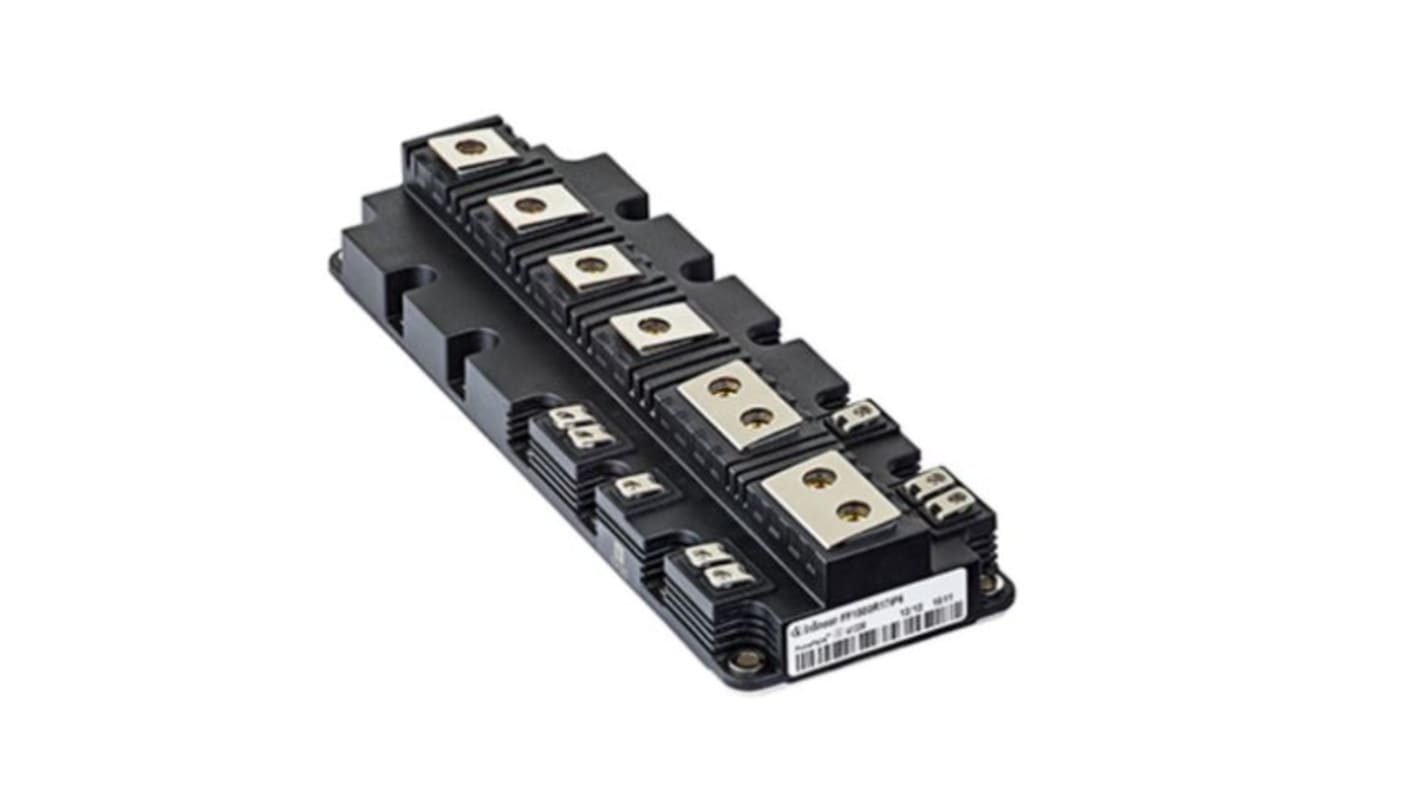

Infineon FF1500R17IP5PBPSA1 Dual IGBT Module, 1.5 kA 1700 V, 10-Pin PRIME3+
- RS Stock No.:
- 218-4327
- Mfr. Part No.:
- FF1500R17IP5PBPSA1
- Brand:
- Infineon
Subtotal (1 tray of 3 units)*
£1,629.771
(exc. VAT)
£1,955.724
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 3 + | £543.257 | £1,629.77 |
*price indicative
- RS Stock No.:
- 218-4327
- Mfr. Part No.:
- FF1500R17IP5PBPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 1.5 kA | |
| Maximum Collector Emitter Voltage | 1700 V | |
| Maximum Gate Emitter Voltage | 20V | |
| Maximum Power Dissipation | 20 mW | |
| Number of Transistors | 2 | |
| Configuration | Dual | |
| Package Type | PRIME3+ | |
| Channel Type | N | |
| Pin Count | 10 | |
| Transistor Configuration | Dual | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 1.5 kA | ||
Maximum Collector Emitter Voltage 1700 V | ||
Maximum Gate Emitter Voltage 20V | ||
Maximum Power Dissipation 20 mW | ||
Number of Transistors 2 | ||
Configuration Dual | ||
Package Type PRIME3+ | ||
Channel Type N | ||
Pin Count 10 | ||
Transistor Configuration Dual | ||
The Infineon PrimePack dual IGBT module with TRENCHSTOP IGBT5 and .XT interconnection technology. It has collector emitter voltage of 1700 V. The N-Channel TRENCHSTOP and field stop IGBT Modules are suitable for motor control and drives, power converter and inverter for wind turbines, power transmission and distribution, traction and etc.
Low switching losses
High current density
High creepage and clearance distances
High power and thermal cycling capability
High current density
High creepage and clearance distances
High power and thermal cycling capability
