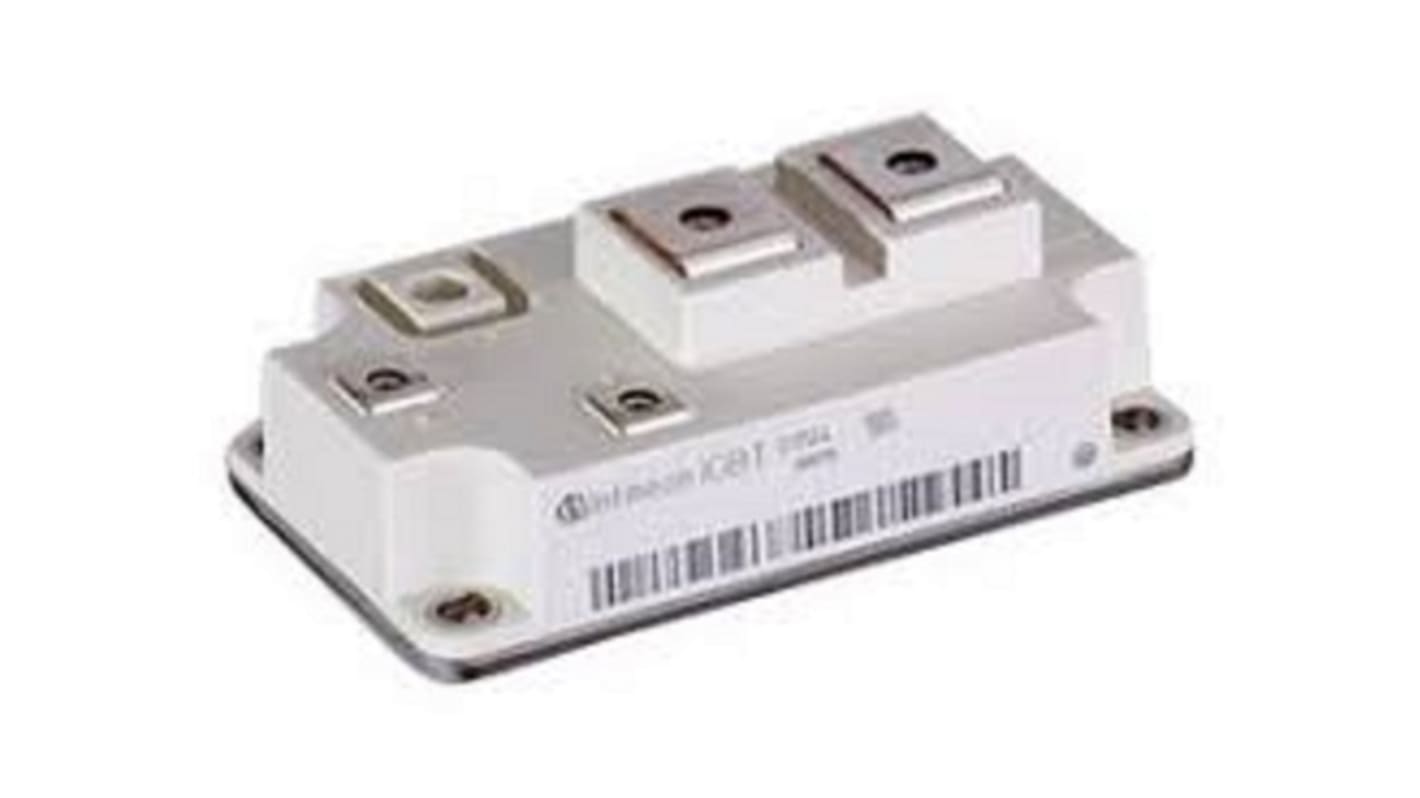

Infineon IGBT Module, 600 A 1700 V
- RS Stock No.:
- 244-5882
- Mfr. Part No.:
- FZ600R17KE4HOSA1
- Brand:
- Infineon
Subtotal (1 tray of 10 units)*
£1,062.83
(exc. VAT)
£1,275.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 10 + | £106.283 | £1,062.83 |
*price indicative
- RS Stock No.:
- 244-5882
- Mfr. Part No.:
- FZ600R17KE4HOSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 600A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1700V | |
| Maximum Power Dissipation Pd | 3350W | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.3V | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | ULapproved(E83335) | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 600A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1700V | ||
Maximum Power Dissipation Pd 3350W | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.3V | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals ULapproved(E83335) | ||
Automotive Standard No | ||
The infineon IGBT module is suitable for auxiliary inverters, high Power converters, motor drives, traction drives, ups systems, wind turbines etc.
Electrical features
Extended operation temperature Tvj
Low switching losses
Low VCEsat
VCEsat with positive temperature coefficient
Mechanical features - Package with CTI > 40-0
4 kV AC 1min insulation
High creepage and clearance distances
Isolated base plate
Standard housing
