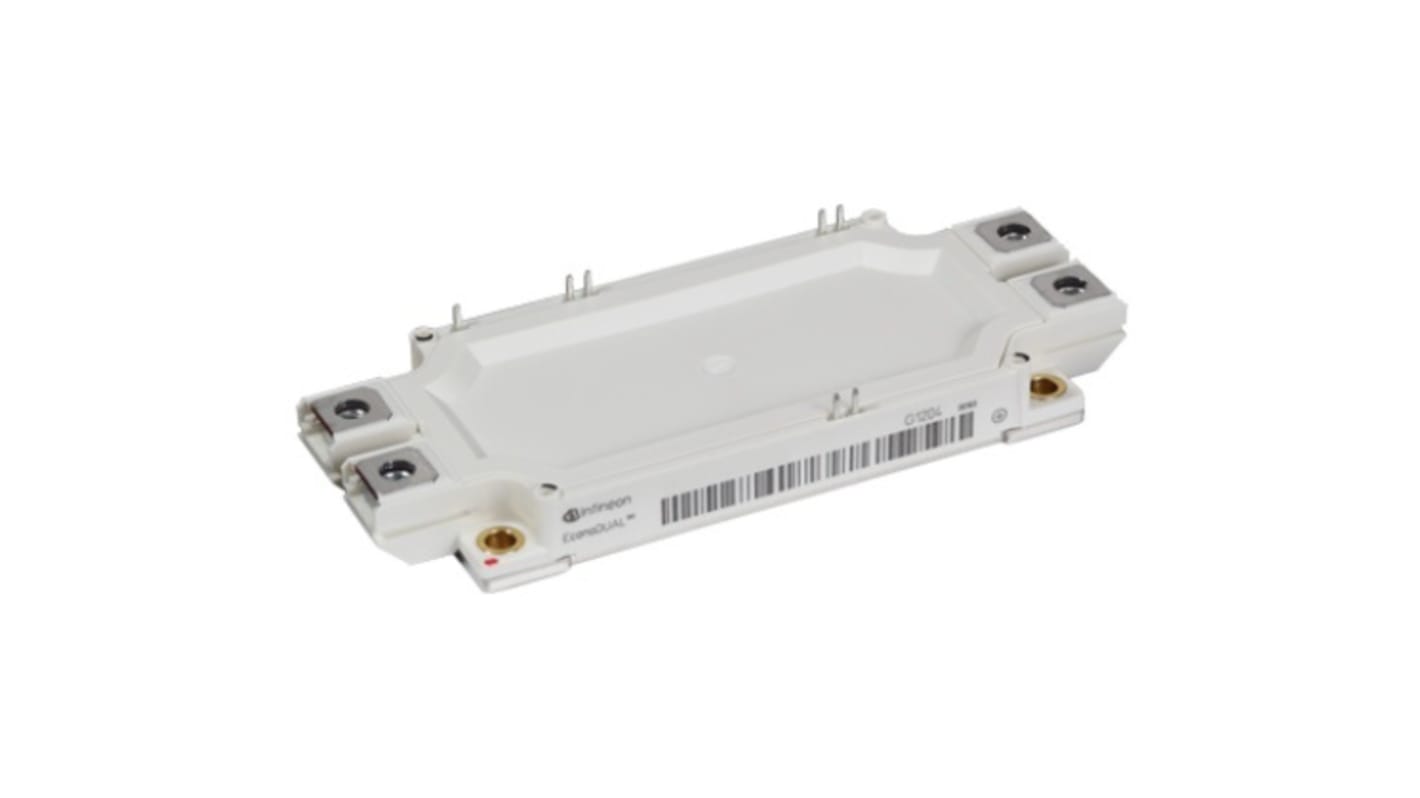

Infineon FF600R12ME7B11BPSA1 Dual IGBT Module, 600 A 1200 V AG-ECONOD, Chassis Mount
- RS Stock No.:
- 232-3044
- Mfr. Part No.:
- FF600R12ME7B11BPSA1
- Brand:
- Infineon
70 In stock - FREE next working day delivery available
Price Each (In a Tray of 6)
£205.47
(exc. VAT)
£246.56
(inc. VAT)
Units | Per unit | Per Tray* |
|---|---|---|
| 6 + | £205.47 | £1,232.82 |
*price indicative
- RS Stock No.:
- 232-3044
- Mfr. Part No.:
- FF600R12ME7B11BPSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon has EconoDUAL 1200 V, 600 A dual TRENCHSTOP IGBT7 module with emitter controlled 7 diode, NTC and PressFIT contact technology. This module has high inter-connection reliability and suitable for press-in and soldering process.
High power density
Isolated base plate
PressFIT contact technology
Standard housing
Isolated base plate
PressFIT contact technology
Standard housing
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 600 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | 20V |
| Maximum Power Dissipation | 20 mW |
| Number of Transistors | 2 |
| Package Type | AG-ECONOD |
| Configuration | Dual |
| Mounting Type | Chassis Mount |
| Transistor Configuration | Series |
