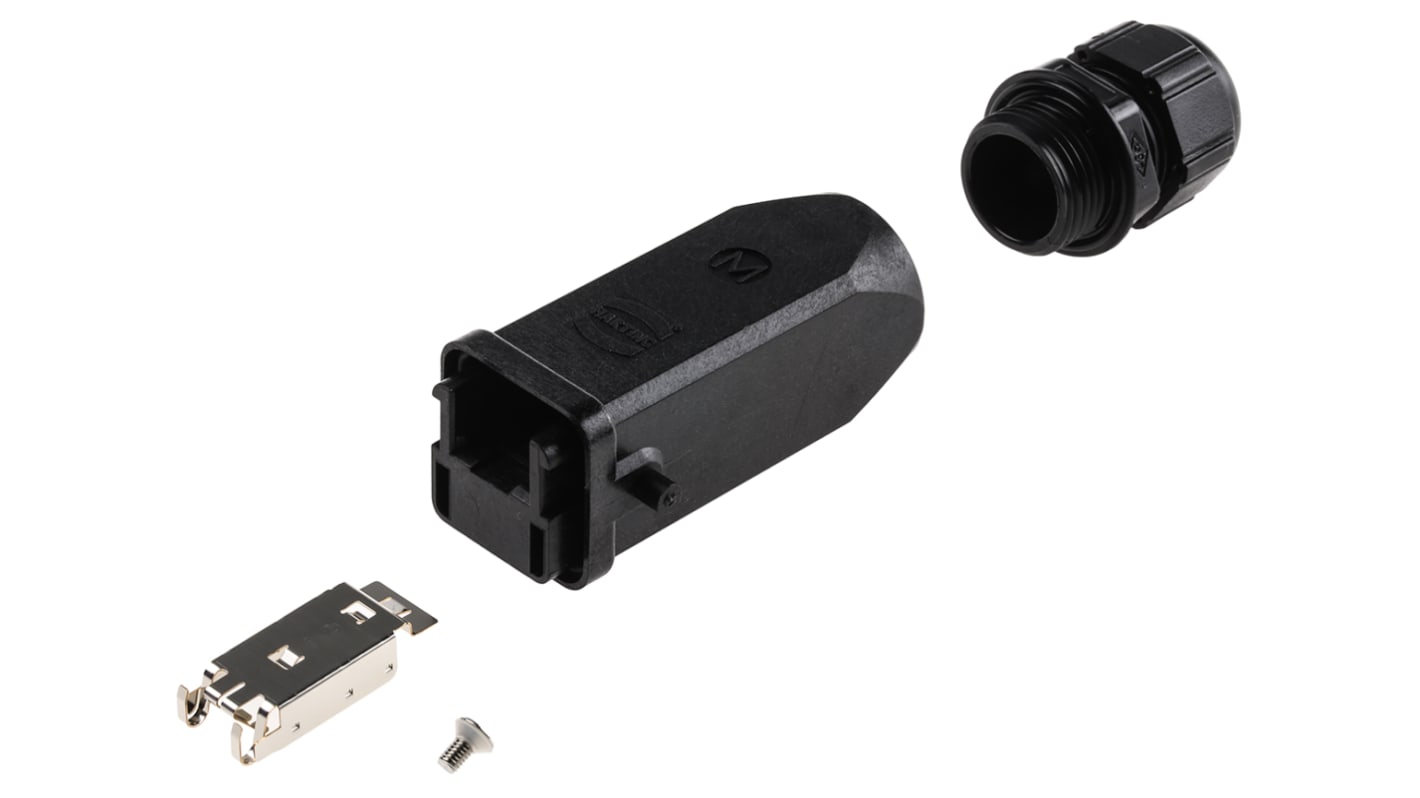

HARTING 9451 Series RJ45 Connector Male, Cable, Cat6 Shielded Straight 1 Port 8 Way
- RS Stock No.:
- 714-8556
- Distrelec Article No.:
- 110-42-593
- Mfr. Part No.:
- 09451251560
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£33.16
(exc. VAT)
£39.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 125 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £33.16 |
| 10 - 49 | £29.98 |
| 50 - 99 | £26.86 |
| 100 - 249 | £26.04 |
| 250 + | £24.56 |
*price indicative
- RS Stock No.:
- 714-8556
- Distrelec Article No.:
- 110-42-593
- Mfr. Part No.:
- 09451251560
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6 | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | Plug | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP67, IP65 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Length | 26.9mm | |
| Depth | 99.35mm | |
| Series | 9451 | |
| Width | 35.3mm | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6 | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type Plug | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP67, IP65 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Length 26.9mm | ||
Depth 99.35mm | ||
Series 9451 | ||
Width 35.3mm | ||
Contact Plating Gold over Nickel | ||
Han® 3A RJ45 10G
These Harting Han® 3A RJ45 10G connectors comprise of only two parts, the movable cable manager mounted on the connector body allows the simple insertion of wires and always guarantees a fault free circuit. For rapid identification of the correct position of the coloured individual wires, the cable manager has a label containing a circuit plan. After wiring the connector a portion of the label remains on the plug thus allowing simple recognition of the relative contact position in the cable manager on re-wiring these Harting Han 3A RJ45 10G connectors. All models are highly reliable and excellent quality.
Features & Benefits
• Field installable using IDC-technology;• For solid and stranded wire AWG 27 to AWG 22;• Cat. 6, transfer class EA, suitable for 1/10 Gigabit Ethernet;• Temperature range –40°C to +70 °C;• Degree of protection IP65 / IP67
Note
Cable not included.
