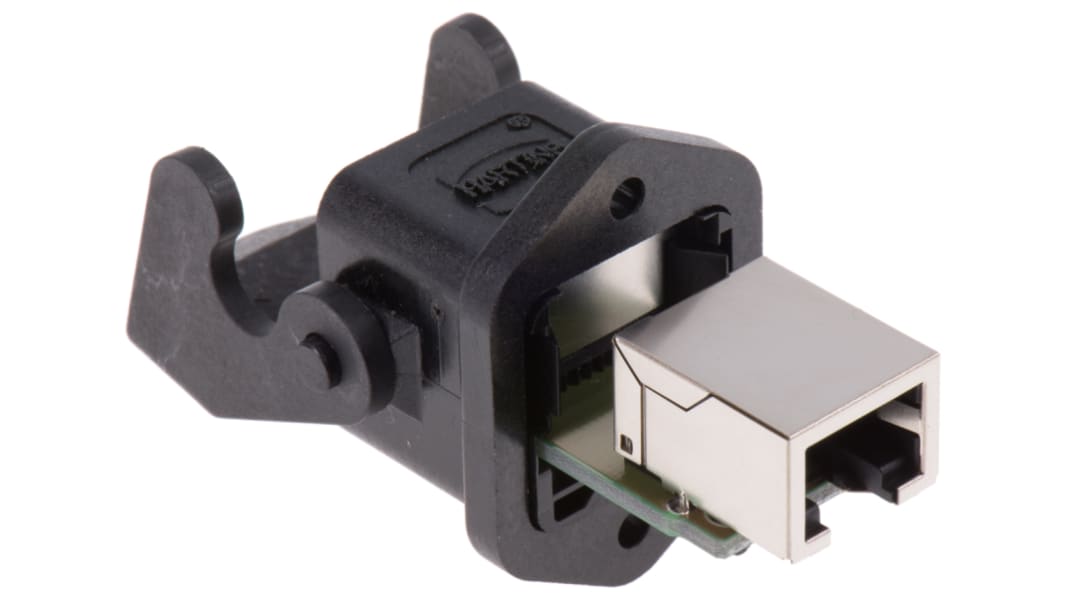

HARTING 09452 Series RJ45 Connector Female, Panel, Cat5 Shielded Straight 1 Port 8 Way
- RS Stock No.:
- 465-9757
- Distrelec Article No.:
- 144-50-870
- Mfr. Part No.:
- 09452251100
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£34.08
(exc. VAT)
£40.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 39 unit(s) shipping from 27 April 2026
- Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £34.08 |
| 10 - 24 | £33.73 |
| 25 + | £33.06 |
*price indicative
- RS Stock No.:
- 465-9757
- Distrelec Article No.:
- 144-50-870
- Mfr. Part No.:
- 09452251100
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Mount Type | Panel | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 47.5mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Series | 09452 | |
| Length | 35.3mm | |
| Width | 40.3mm | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Mount Type Panel | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP67 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Depth 47.5mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Series 09452 | ||
Length 35.3mm | ||
Width 40.3mm | ||
- COO (Country of Origin):
- RO
IP67 Han® 3A Based Data Connectors and Panel Receptacles
Metal and plastic bodied RJ45 data connectors and panel receptacles utilising the proven Harting Han® 3A housing which provide a Proven and reliable secure connection. An optional coding pin set enables dedicated connectivity between connector and panel receptacle.
Features & Benefits
Cable sheath diameter 6.5 mm to 6.9mm;Minimum 750 mating cycles
