HARTING 09452 Series RJ45 Connector Female/Female, Through Hole, Cat5 Shielded Right Angle 2 Port 8 Way
- RS Stock No.:
- 465-9729
- Distrelec Article No.:
- 144-50-888
- Mfr. Part No.:
- 09452151100
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£30.21
(exc. VAT)
£36.25
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £30.21 |
| 10 - 24 | £29.88 |
| 25 + | £29.22 |
*price indicative
- RS Stock No.:
- 465-9729
- Distrelec Article No.:
- 144-50-888
- Mfr. Part No.:
- 09452151100
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Mount Type | Through Hole | |
| Number of Ports | 2 | |
| Number of Ways | 8 | |
| Connector Gender | Female/Female | |
| Connector Type | RJ45 | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | IDC | |
| Maximum Operating Temperature | 70°C | |
| Series | 09452 | |
| Width | 40.3mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Length | 33.6mm | |
| Depth | 47.5mm | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Mount Type Through Hole | ||
Number of Ports 2 | ||
Number of Ways 8 | ||
Connector Gender Female/Female | ||
Connector Type RJ45 | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Termination Type IDC | ||
Maximum Operating Temperature 70°C | ||
Series 09452 | ||
Width 40.3mm | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Length 33.6mm | ||
Depth 47.5mm | ||
Contact Plating Gold | ||

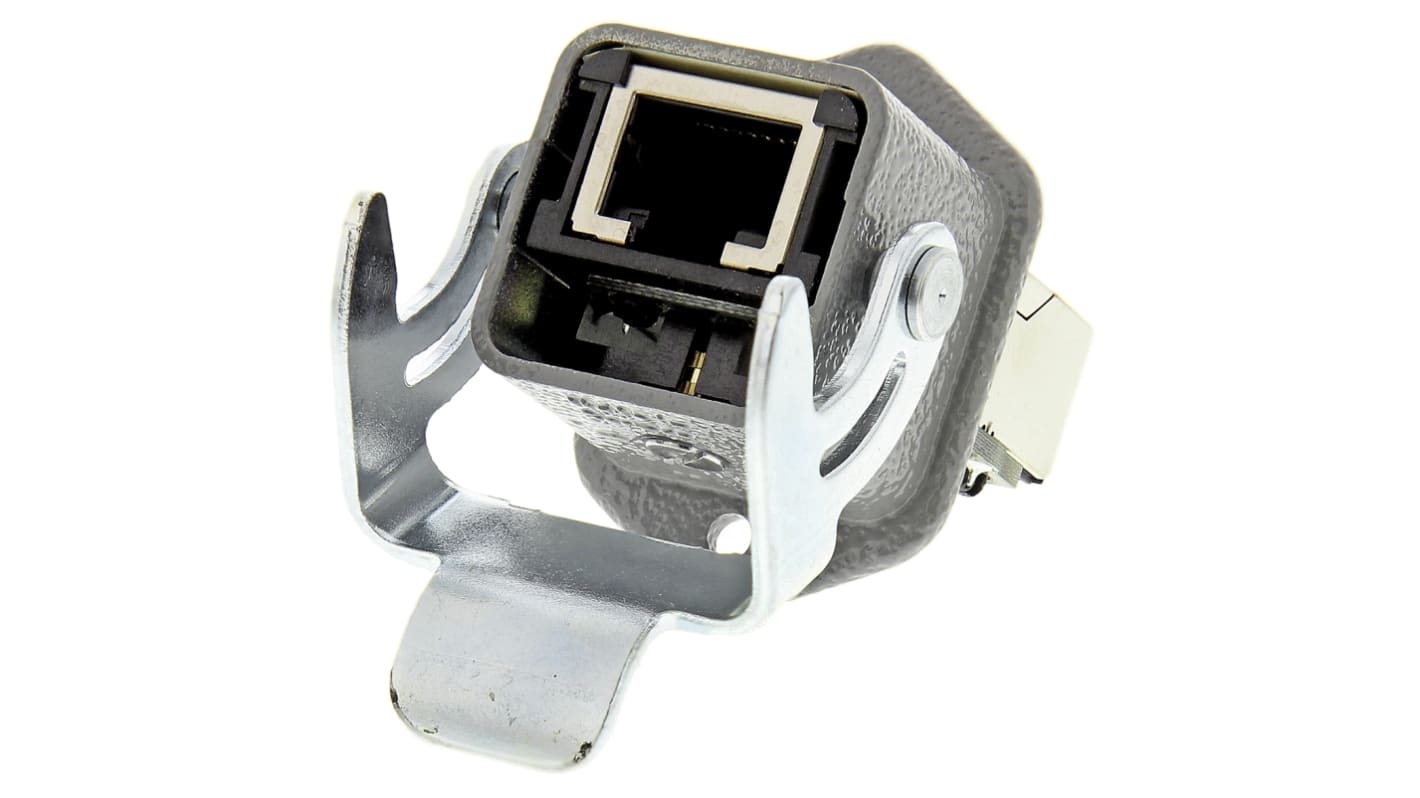

HARTING RJ45 Connector
The HARTING Han 3A series CAT5 female to female RJ45 connector is a through-hole mount shielded plug. This metal body RJ45 data connector and panel receptacle utilise proven housing that provides a proven and reliable secure connection. It has an optional coding pin set that enables dediCATed connectivity between the connector and panel receptacle.
Features and Benefits
Cable sheath diameter ranges between 6.5mm and 6.9mm
Mating cycles are greater than or equal to 500
Temperature ranges between -40°C and 70°C
CertifiCATions
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP67 rated
