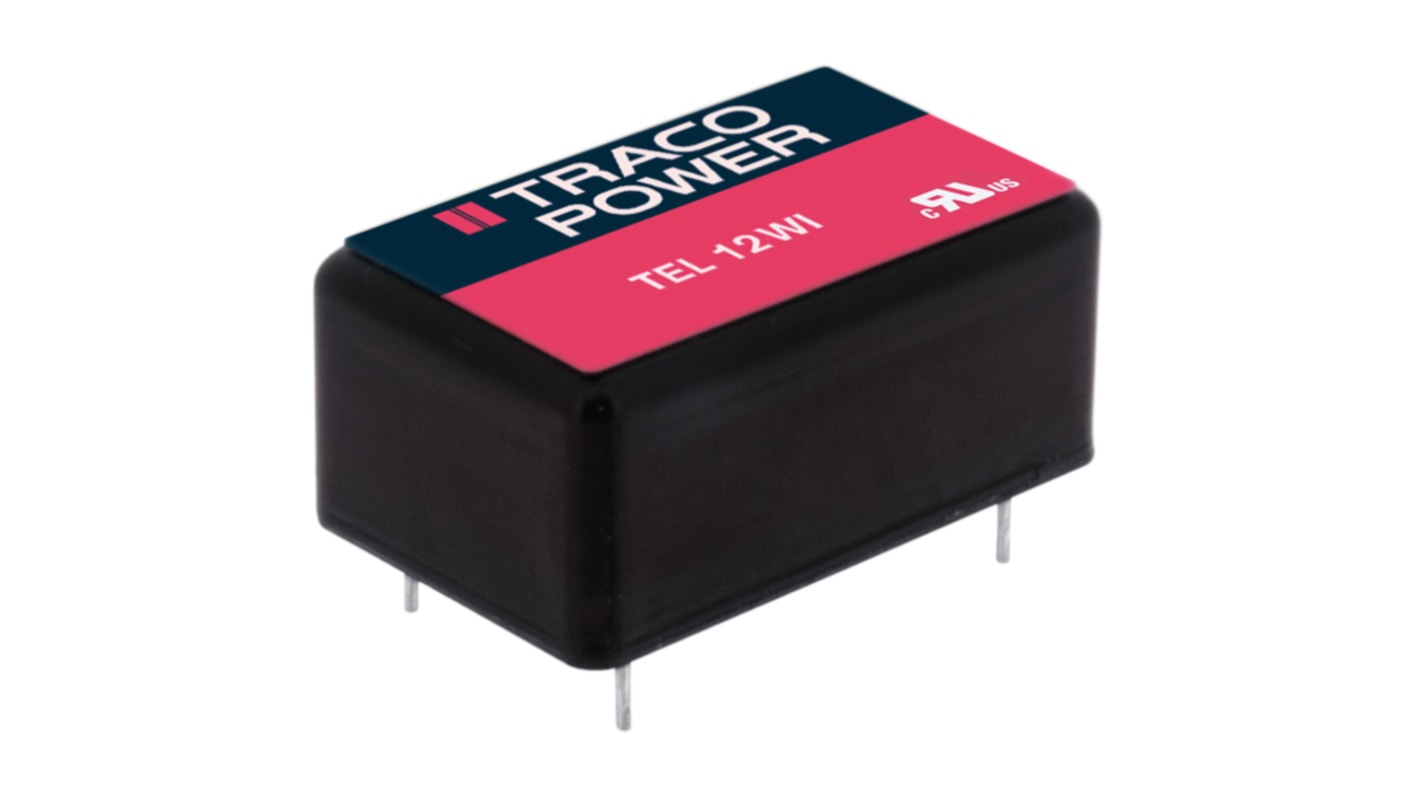

TRACOPOWER TEL 12WI DC-DC Converter, ±15V dc/ 400/400mA Output, 9 → 36 V dc Input, 12W, PCB Mount, +85°C Max
- RS Stock No.:
- 230-4691
- Mfr. Part No.:
- TEL 12-2423WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£270.51
(exc. VAT)
£324.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £270.51 | £27.051 |
5 - 9 | £262.40 | £26.24 |
10 - 24 | £254.28 | £25.428 |
25 - 49 | £243.46 | £24.346 |
50 + | £232.63 | £23.263 |
*price indicative
- RS Stock No.:
- 230-4691
- Mfr. Part No.:
- TEL 12-2423WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±15V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 12W | |
Input Voltage Nominal | 24 Vdc | |
Output Current | 400/400mA | |
Mounting Type | PCB Mount | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 16 | |
Isolation Voltage | 1.5kV dc | |
Depth | 10.2mm | |
Width | 13.7mm | |
Length | 23.8mm | |
Railway Approved | No | |
Series | TEL 12WI | |
Medical Approved | No | |
Minimum Temperature | -40°C | |
Standards Met | EN 62368-1 | |
Maximum Temperature | +85°C | |
Efficiency | 87% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 12W | ||
Input Voltage Nominal 24 Vdc | ||
Output Current 400/400mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Width 13.7mm | ||
Length 23.8mm | ||
Railway Approved No | ||
Series TEL 12WI | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Standards Met EN 62368-1 | ||
Maximum Temperature +85°C | ||
Efficiency 87% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TEL 12WI Series DC-DC Converter, ±15V DC Output Voltage, 12W Power Rating - TEL 12-2423WI
This DC-DC converter features high efficiency and compactness, making it suitable for various electronic applications. With an output of ±15V DC and a power rating of 12W, it is ideal for space-critical environments. Its isolated design ensures reliable performance across a range of operational conditions, making it a valuable component in automation and industrial electronics.
Features & Benefits
• Input voltage range of 9 to 36V DC supports various power supply requirements
• Isolated output offers safety and reliability for sensitive components
• Integrated input filter complies with EN 55032 class A standards
• Operating temperature range of -40 to +85°C accommodates diverse environments
• Isolated output offers safety and reliability for sensitive components
• Integrated input filter complies with EN 55032 class A standards
• Operating temperature range of -40 to +85°C accommodates diverse environments
Applications
• Power supply in instrumentation devices
• Automation systems requiring isolated voltage
• IT needing versatile power solutions
• Industrial electronics with limited space
• Low power that demand high efficiency
• Automation systems requiring isolated voltage
• IT needing versatile power solutions
• Industrial electronics with limited space
• Low power that demand high efficiency
How does the efficiency impact performance?
High efficiency, reaching up to 88%, reduces energy loss and thermal output, enhancing overall reliability.
Is short circuit protection included?
Yes, it features short circuit protection with automatic recovery, ensuring safety during operation.
What type of mounting is suitable for this converter?
The converter is designed for PCB mounting, facilitating easy integration into existing systems.
