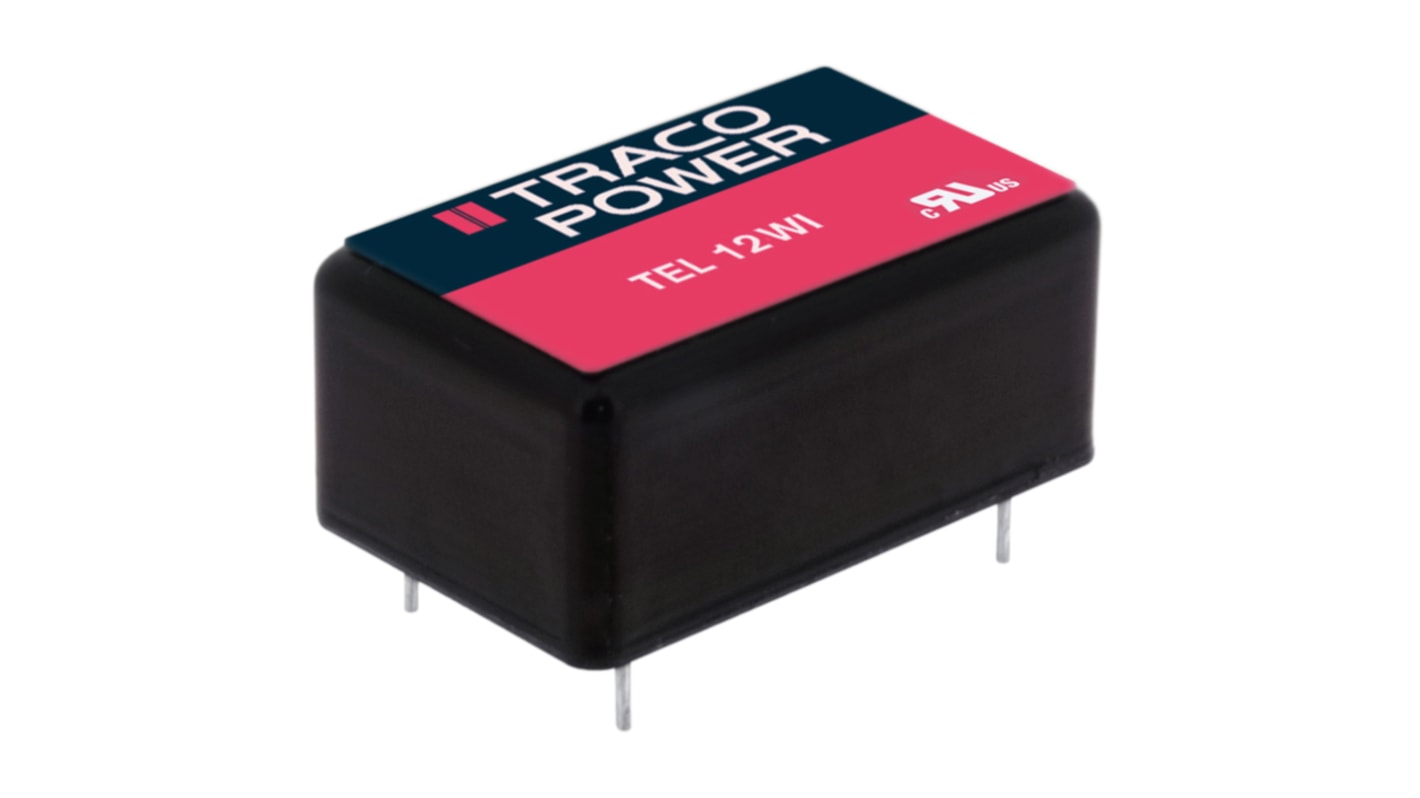

TRACOPOWER TEL 12WI DC/DC Converter, 5.1V dc/ 2.4 A, 36V dc Input, 18V Input 12 W, PCB, 88 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£253.03

(exc. VAT)

£303.64

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 19 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£253.03£25.303
5 - 9£245.44£24.544
10 - 24£237.84£23.784
25 - 49£227.72£22.772
50 +£217.59£21.759

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
230-4680
Distrelec Article No.:
304-31-678
Mfr. Part No.:
TEL 12-2411WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5.1V dc

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

2.4A

Mount Type

PCB

Input Ratio

2:1

MTBF

2540000h

Number of Outputs

5

Output Voltage Adjustment Range

18/36 V

Number of Pins

5

Isolation Voltage

1.5kV dc

Package Type

DIP

Maximum Output Power

12W

Depth

7mm

Length

23.8mm

Series

TEL 12WI

Standards/Approvals

No

Better World Product

Yes

Better World Claim

Concentrated or Compact Solution

Efficiency

83%

Maximum Operating Temperature

88°C

Minimum Operating Temperature

-40°C

RoHS Status: Exempt

COO (Country of Origin):
TW
The TRACOPOWER 12 Watt DC/DC converter comes in an ultra compact DIP-16 metal package. It has also an internal input filter to comply with conducted emission standard EN 55032 class A.

Highest power density

Wide 4:1 input voltage range

High efficiency (up to 88%) for low thermal loss

Operating temperature range -40°C to +88°C
