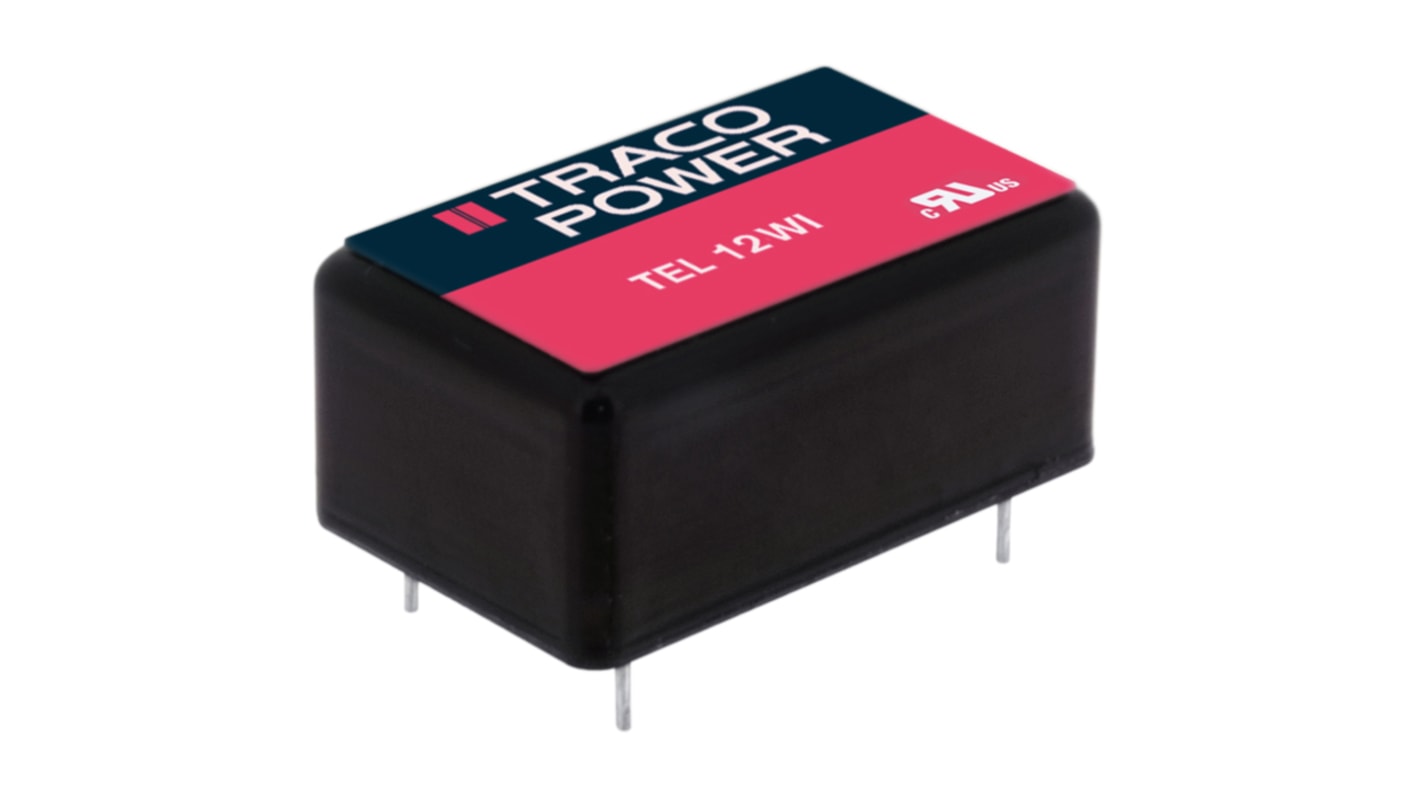

TRACOPOWER TEL 12WI DC-DC Converter, 12V dc/ 1A Output, 18 → 75 V dc Input, 12W, Through Hole, +88°C Max Temp
- RS Stock No.:
- 230-4695
- Mfr. Part No.:
- TEL 12-4812WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£257.35
(exc. VAT)
£308.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £257.35 | £25.735 |
5 - 9 | £249.63 | £24.963 |
10 - 24 | £241.91 | £24.191 |
25 - 49 | £231.61 | £23.161 |
50 + | £221.32 | £22.132 |
*price indicative
- RS Stock No.:
- 230-4695
- Mfr. Part No.:
- TEL 12-4812WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 12W | |
Input Voltage Nominal | 48 Vdc | |
Output Current | 1A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 16 | |
Isolation Voltage | 1.5kV dc | |
Depth | 10.2mm | |
Width | 13.7mm | |
Length | 23.8mm | |
Railway Approved | No | |
Series | TEL 12WI | |
Load Regulation | 1% | |
Efficiency | 87% | |
Standards Met | IEC/EN 62368-1 | |
Maximum Temperature | +88°C | |
Minimum Temperature | -40°C | |
Medical Approved | No | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 12W | ||
Input Voltage Nominal 48 Vdc | ||
Output Current 1A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Width 13.7mm | ||
Length 23.8mm | ||
Railway Approved No | ||
Series TEL 12WI | ||
Load Regulation 1% | ||
Efficiency 87% | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature +88°C | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TEL 12WI Series DC-DC Converter, 87% Efficiency, 1.5kV DC Isolation Voltage - TEL 12-4812WI
This isolated DC-DC converter efficiently manages power in a variety of electronic applications. Designed for high voltage input ranges, it provides an effective solution for converting 48V to 12V. The compact DIP-16 packaging is suitable for environments with limited space, while its high efficiency supports operational reliability across a broad temperature range.
Features & Benefits
• Compact design maximises installation flexibility in diverse applications
• Efficiency of up to 88% reduces energy loss substantially
• Wide input voltage range caters to varying power requirements
• High power density of 3.61 W/cm³ optimises the design footprint
• Built-in short circuit protection enhances safety
• Operates effectively in challenging environments with a temperature range of -40°C to +85°C
• Efficiency of up to 88% reduces energy loss substantially
• Wide input voltage range caters to varying power requirements
• High power density of 3.61 W/cm³ optimises the design footprint
• Built-in short circuit protection enhances safety
• Operates effectively in challenging environments with a temperature range of -40°C to +85°C
Applications
• Supports power supply regulation in automation systems
• Provides reliable DC voltage conversion in electronics
• Ensures stable operations in industrial equipment
• Facilitates efficient power management in instrumentation
• Suitable for IT equipment requiring compact power solutions
• Provides reliable DC voltage conversion in electronics
• Ensures stable operations in industrial equipment
• Facilitates efficient power management in instrumentation
• Suitable for IT equipment requiring compact power solutions
Is it suitable for applications requiring high efficiency?
Yes, its efficiency reaches up to 88%, making it ideal for energy-sensitive applications.
What is the temperature range for optimal performance?
It operates effectively between -40°C and +85°C.
Can it handle fluctuations in input voltage?
Yes, the wide input voltage range enables effective management of variations.
How does this product protect against electrical faults?
It features built-in short circuit protection for enhanced safety.
Is it easy to install in compact spaces?
Yes, its compact DIP-16 design simplifies installation in space-constrained areas.
